| Article number: | 10.13.021 |
Specifications :
|
Drawing number |
10.13.021 |
|
Author |
A.F.J. Dunweg |
|
Description |

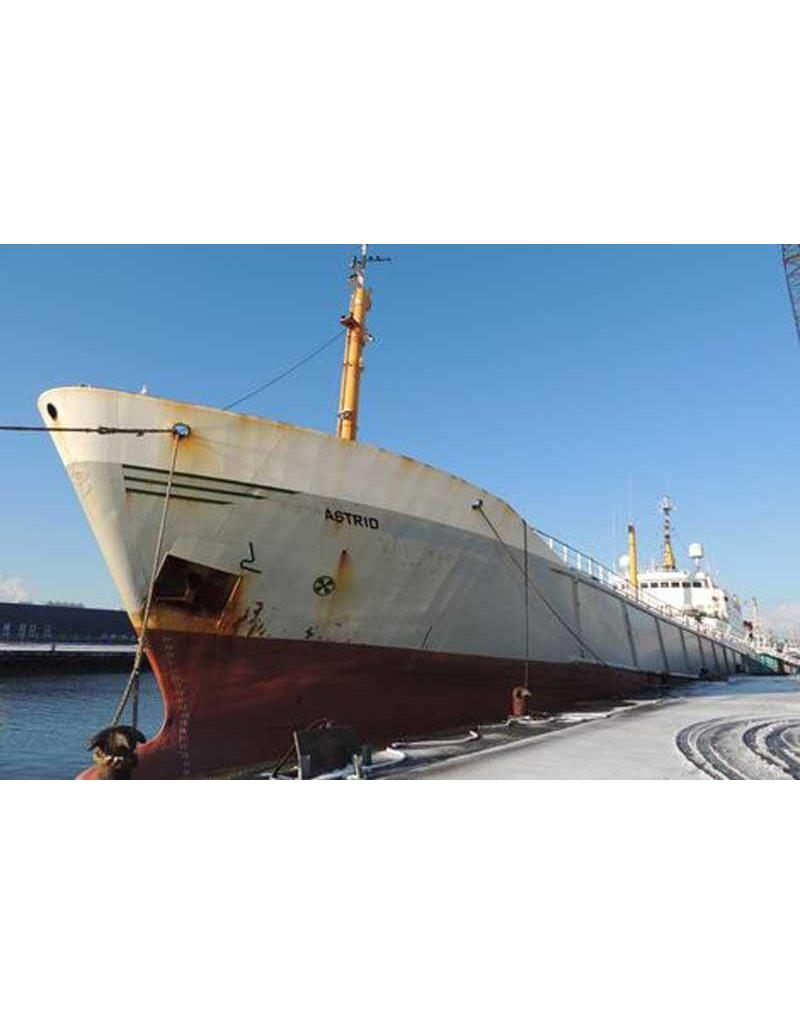

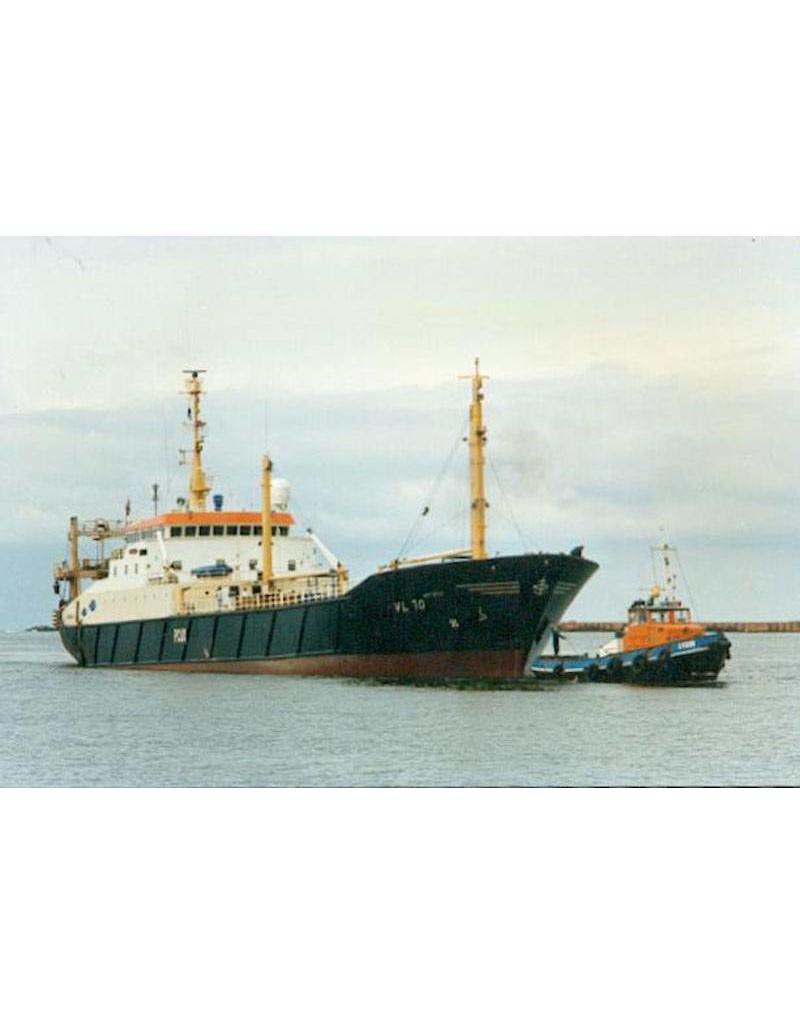

freezer trawler " Astrid" VL 70 (1985) - Kwakkelstein Shipping Company, Vlaardingen |
|
Quality |

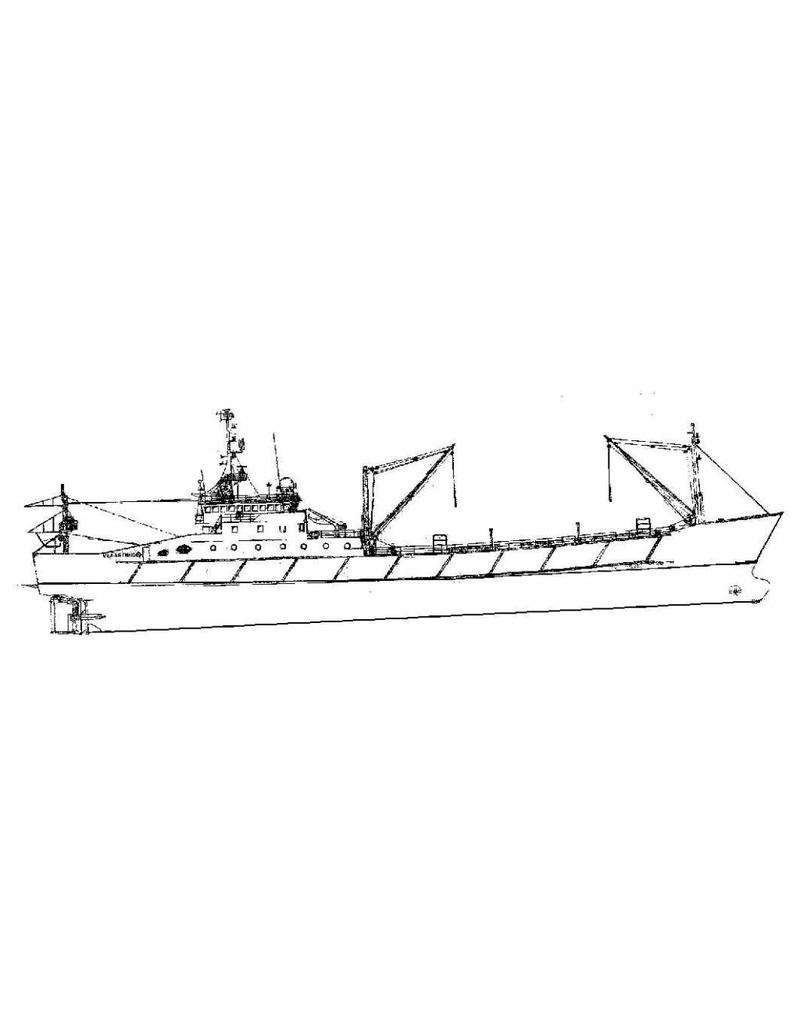

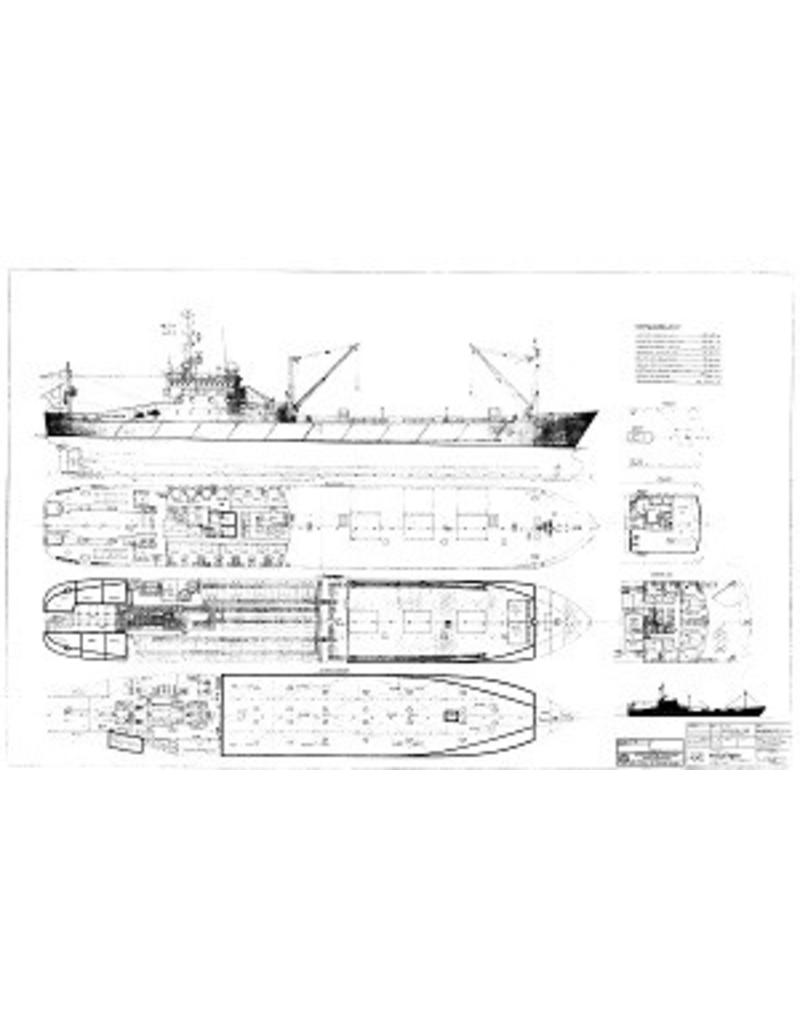

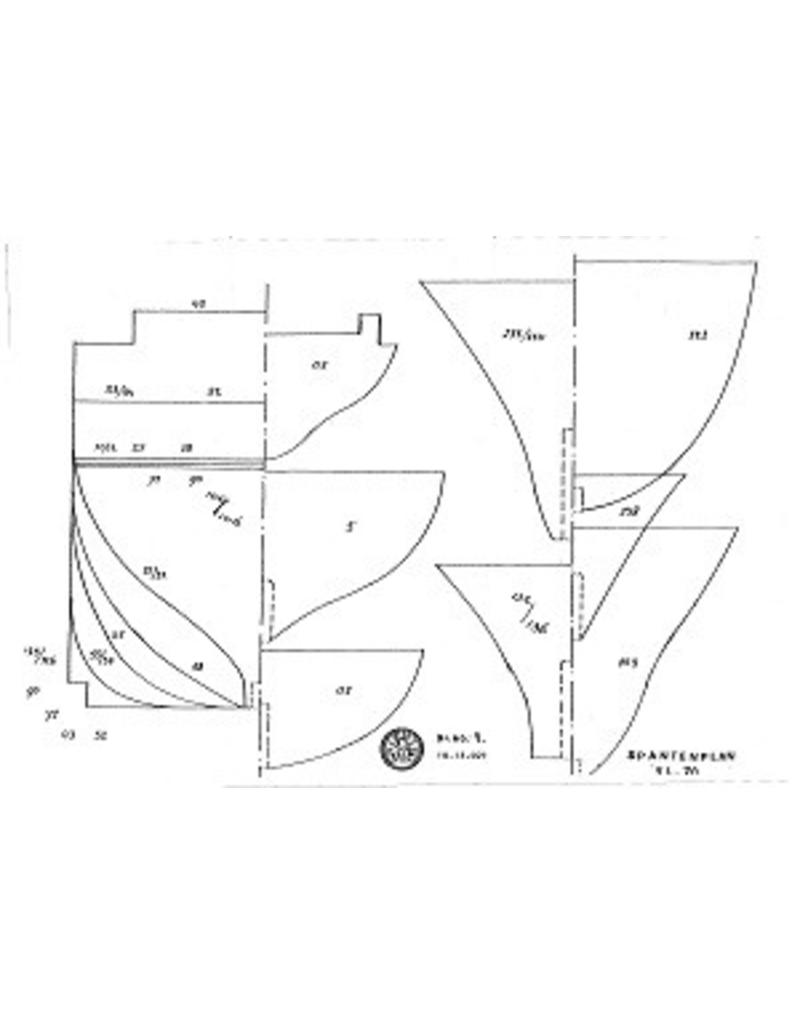

frame lines; side view; deck plans; layout plan |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
1 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Details |
LOA 98 cm |
|
Remarks |
