| Article number: | 10.13.022 |
Specifications :
|
Drawing number |
10.13.022 |
|
Author |
H.A. Tolhoek |
|
Description |

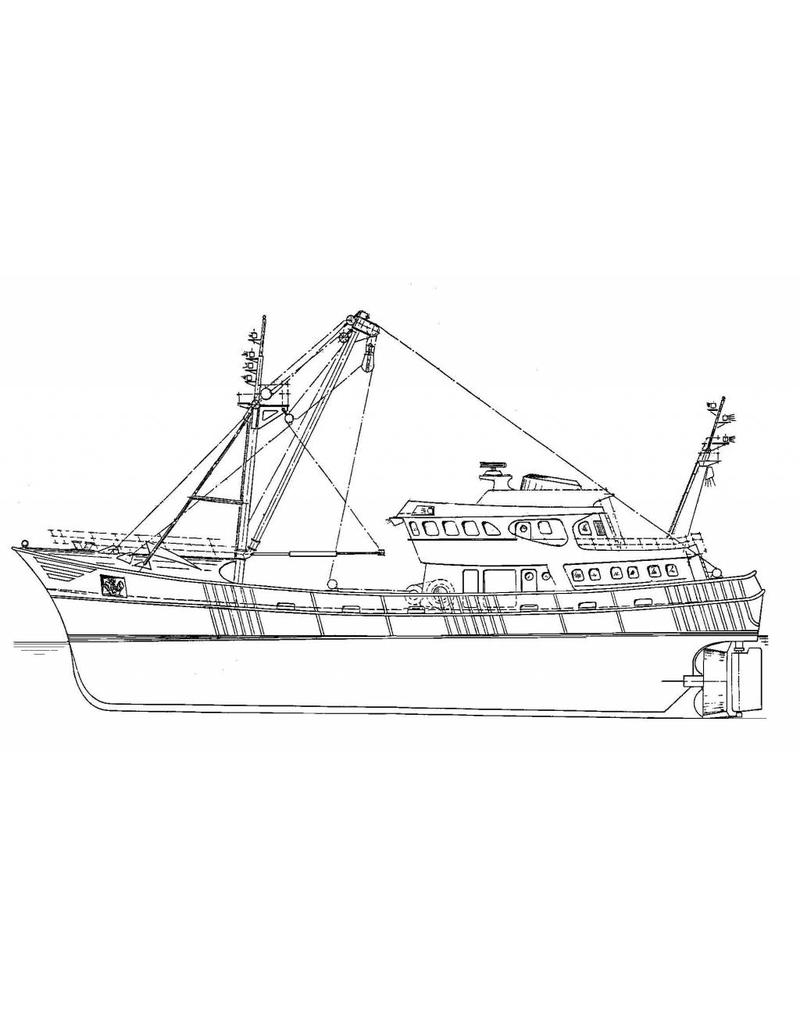

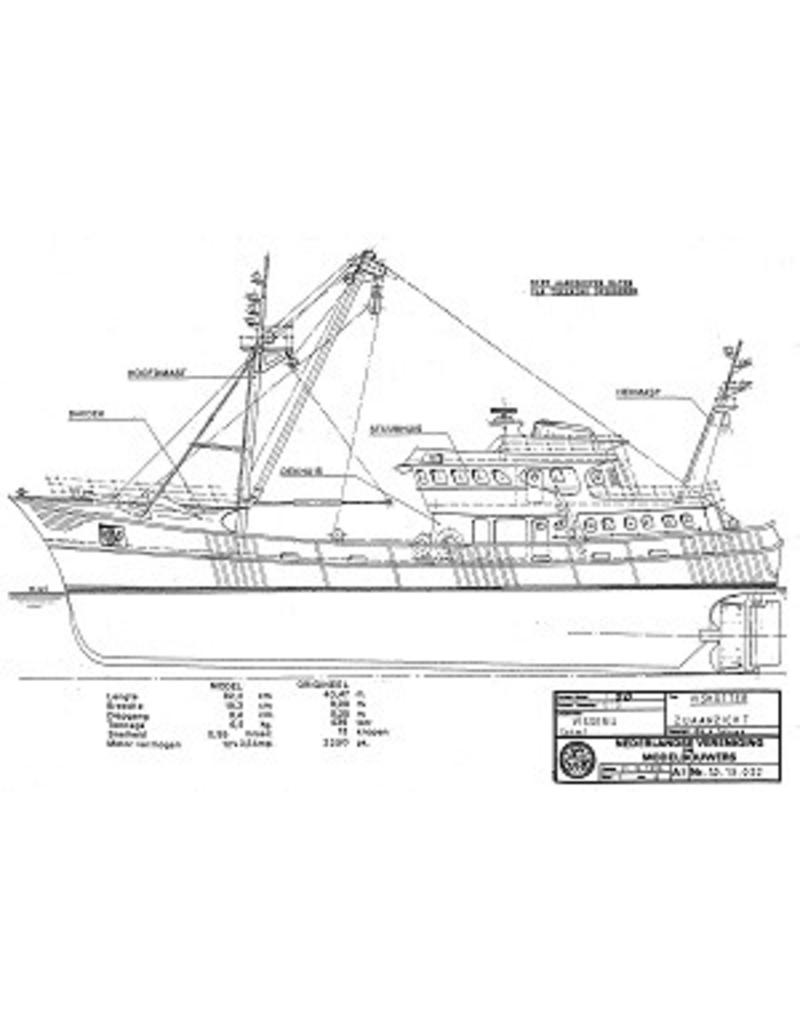

beam trawler |
|
Quality |
fully detailed, with building frames; some sheets are at scale 1:100 |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
10 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
10 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
125 |
|
Special features |
l.o.a. 82 cm |
|
Remarks |
