| Article number: | 10.14.018 |
Specifications :
|
Drawing number |
10.14.018 |
|
Author |
J. Mooldijk |
|
Description |

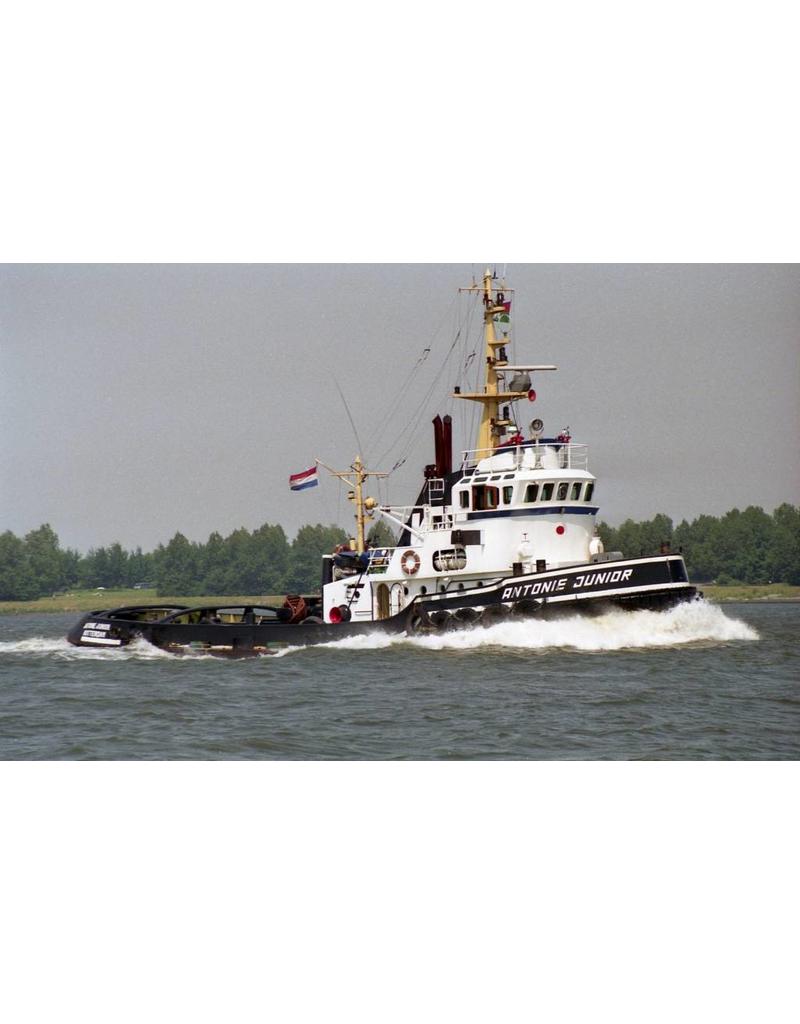

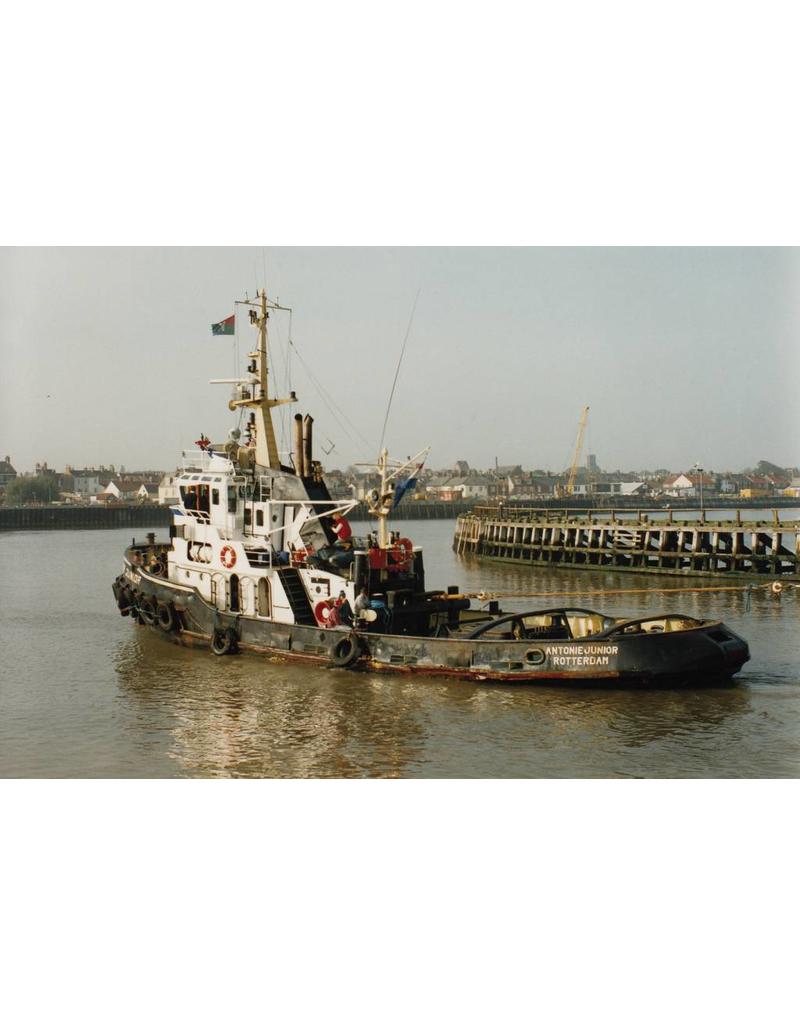

seagoing tug MV "Antonie Junior" (1971) - Adriaan Kooren Tug Service |
|
Quality |

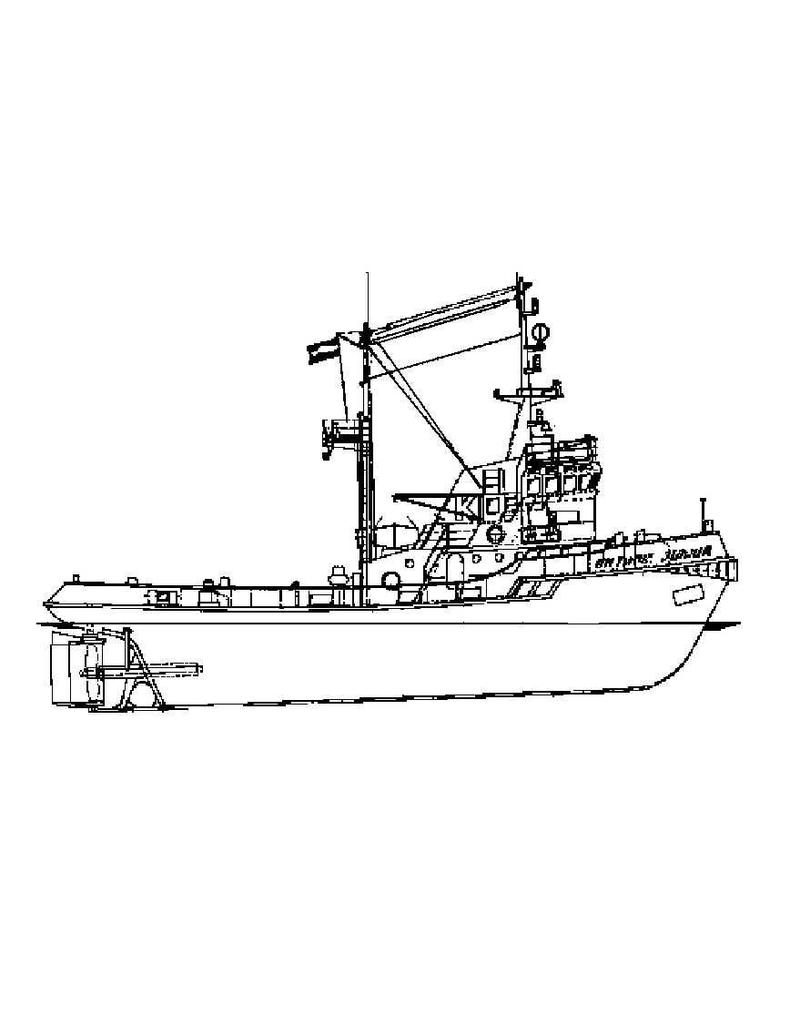

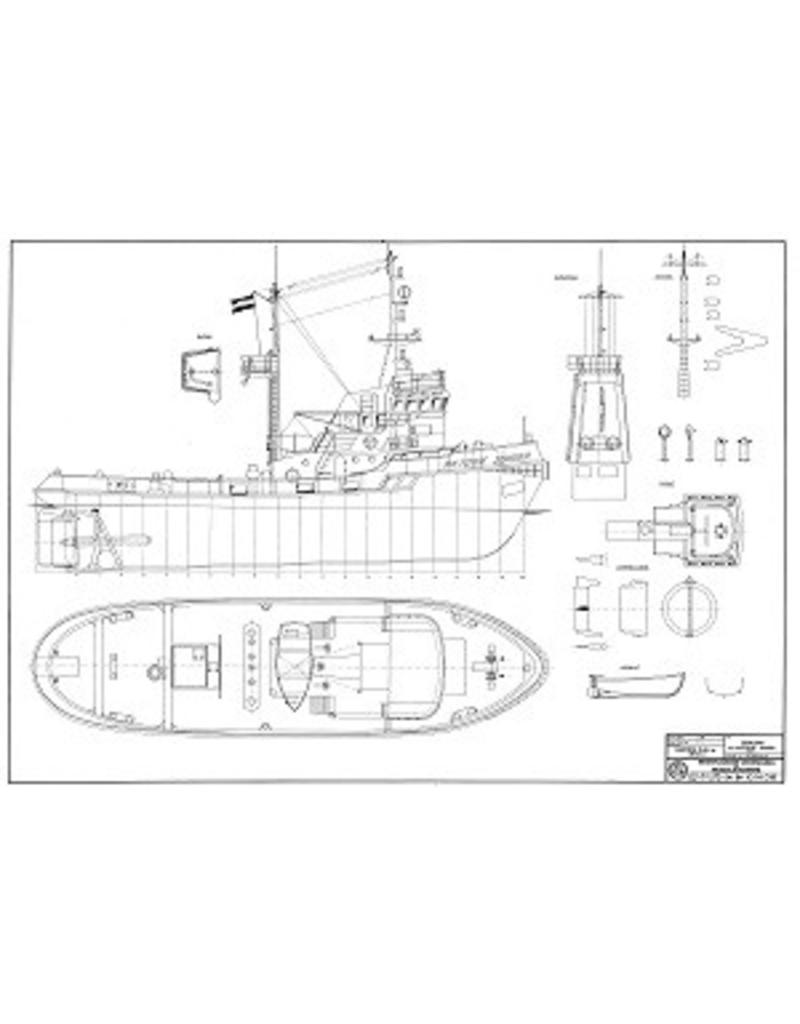

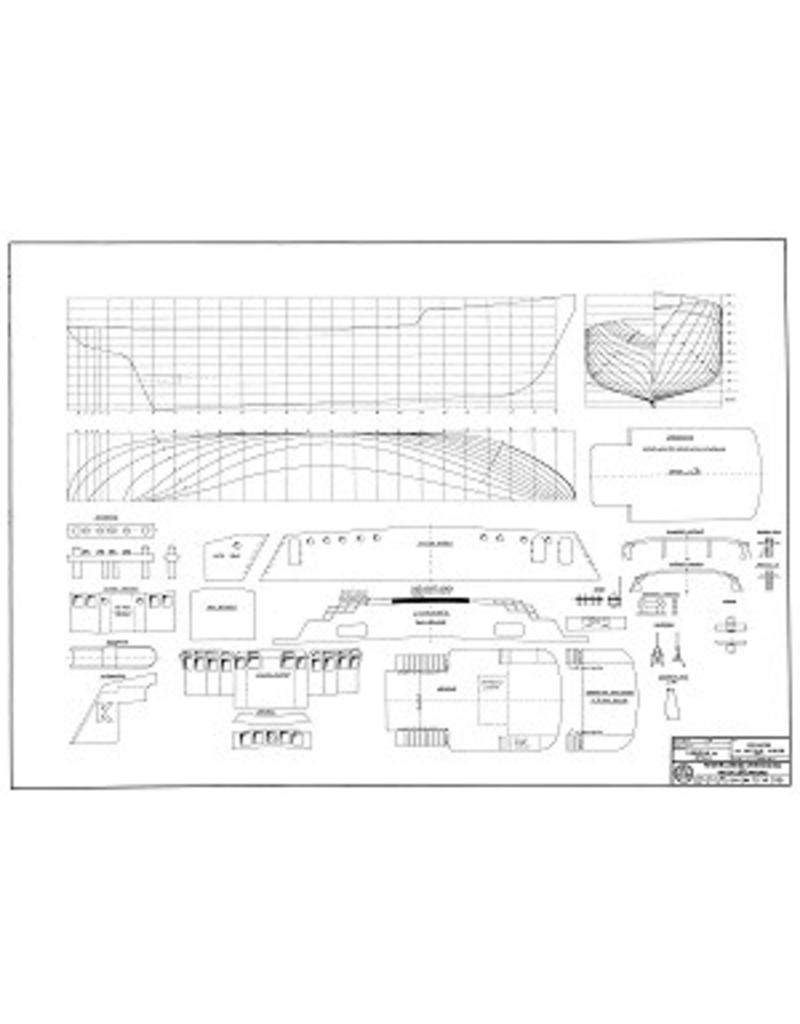

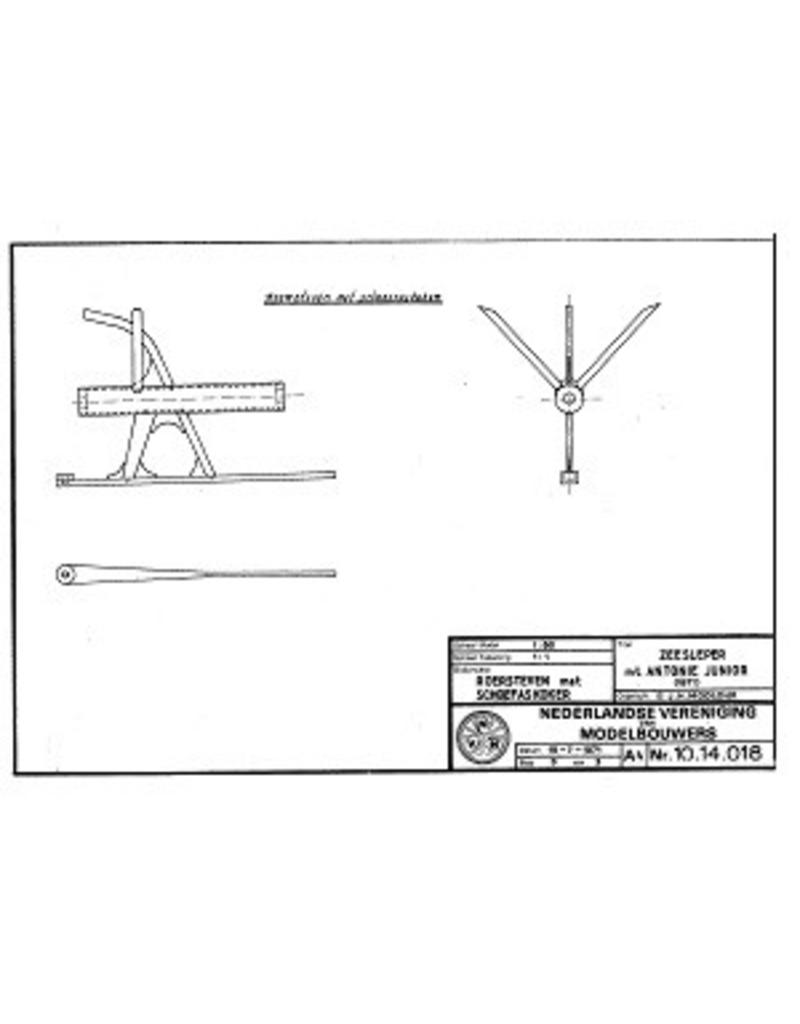

frames/lines; side view; deck plan; details |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
1 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
110 |
|
Particulars |
l.o.a. 55 cm |
|
Remarks |
