| Article number: | 10.19.021 |
|
Drawing number |
10.19.021 |
|
Description |
dredger |
|
Quality |

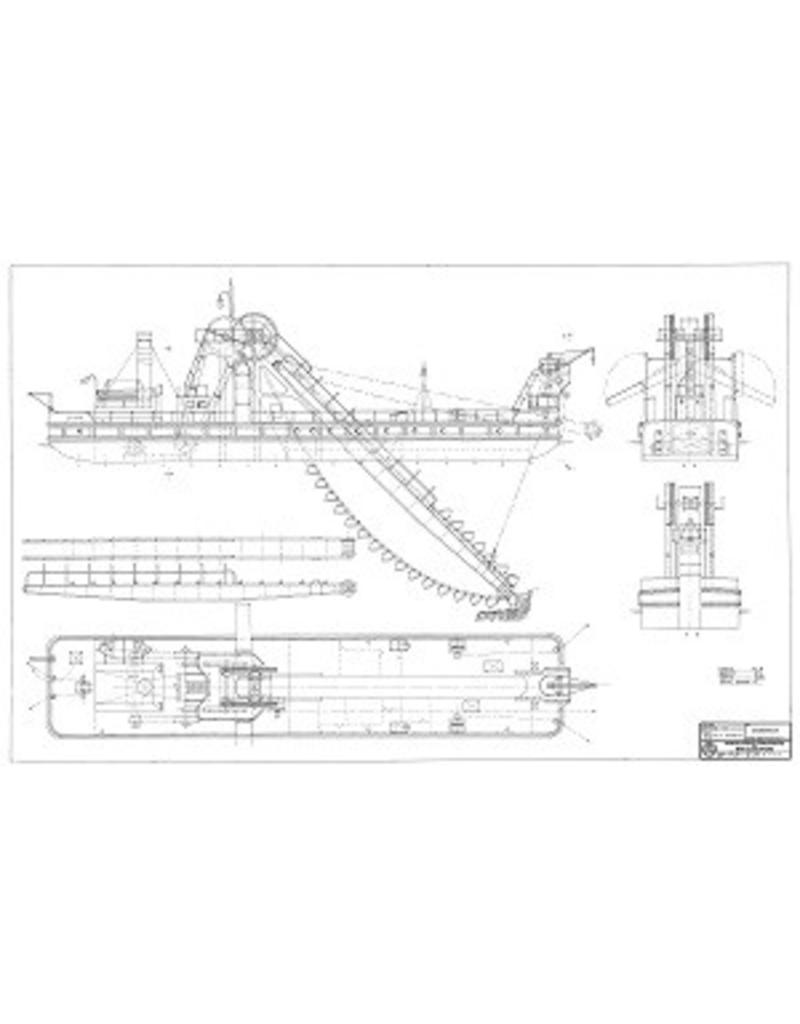

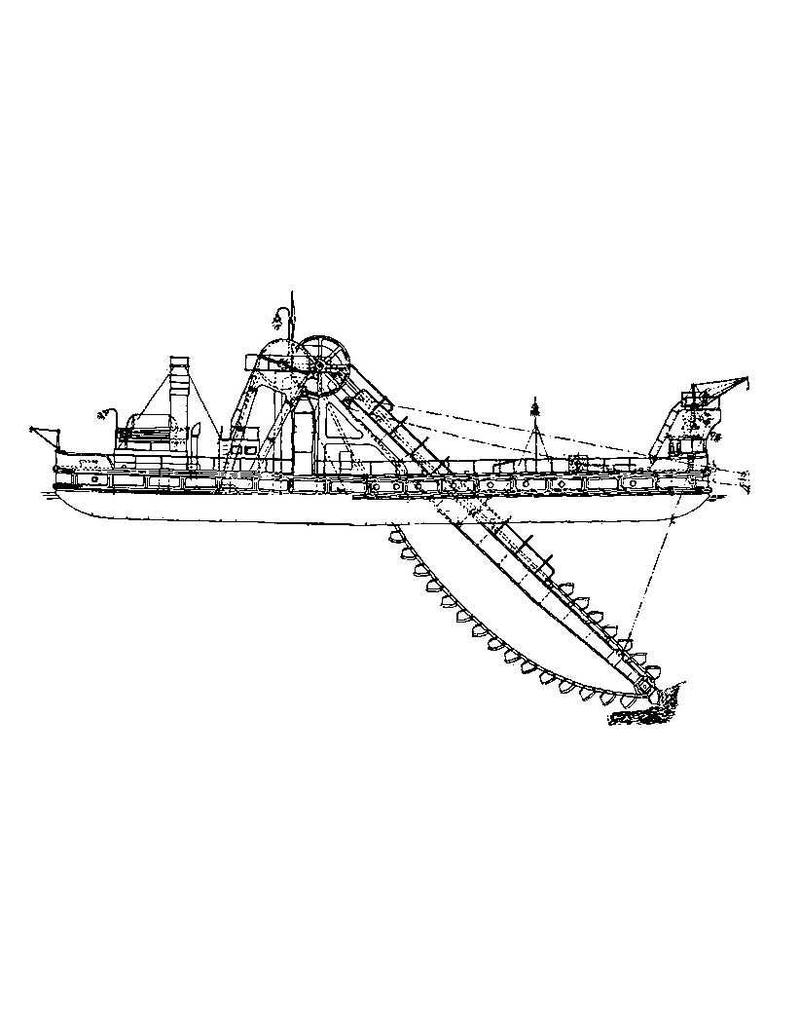

side view; deck plan; cross-sections |
|
Scale |
1 :Ì´Ì_ 60 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Particulars |
l.o.a. 67 cm |
|
Remarks |
compare with 10.19.022 |
