| Article number: | 20.07.002 |
Specifications :
|
Drawing number |
20.07.002 |
|
Author |
G.C. Schalk |
|
Description |

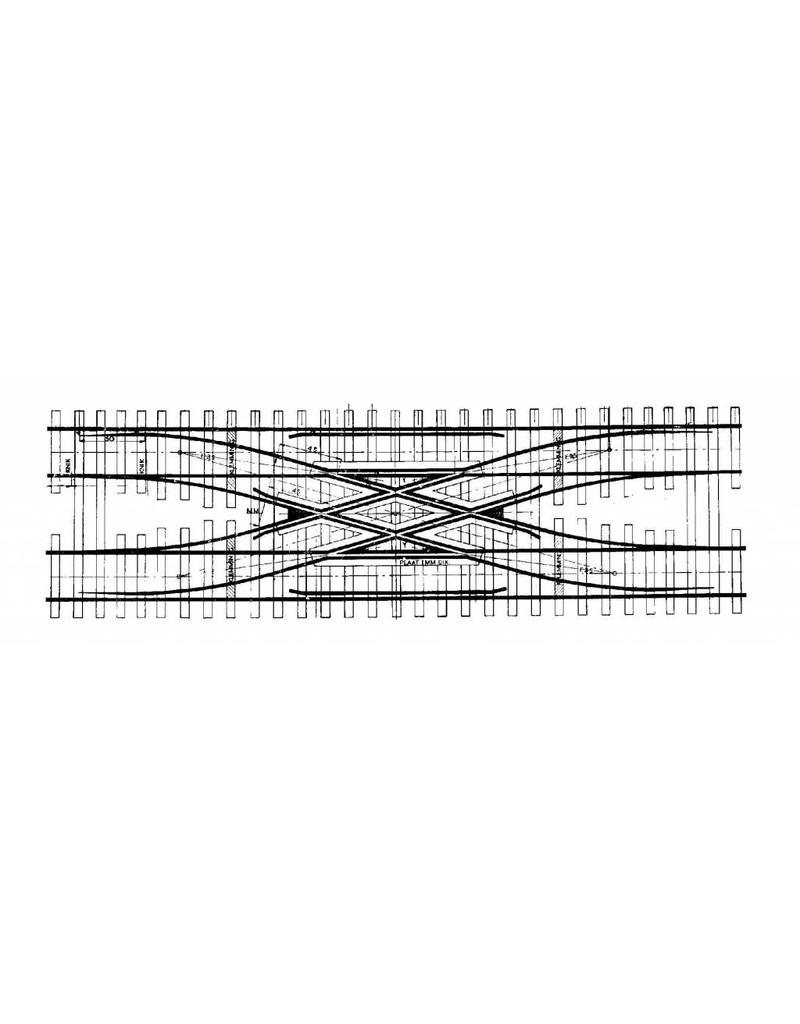

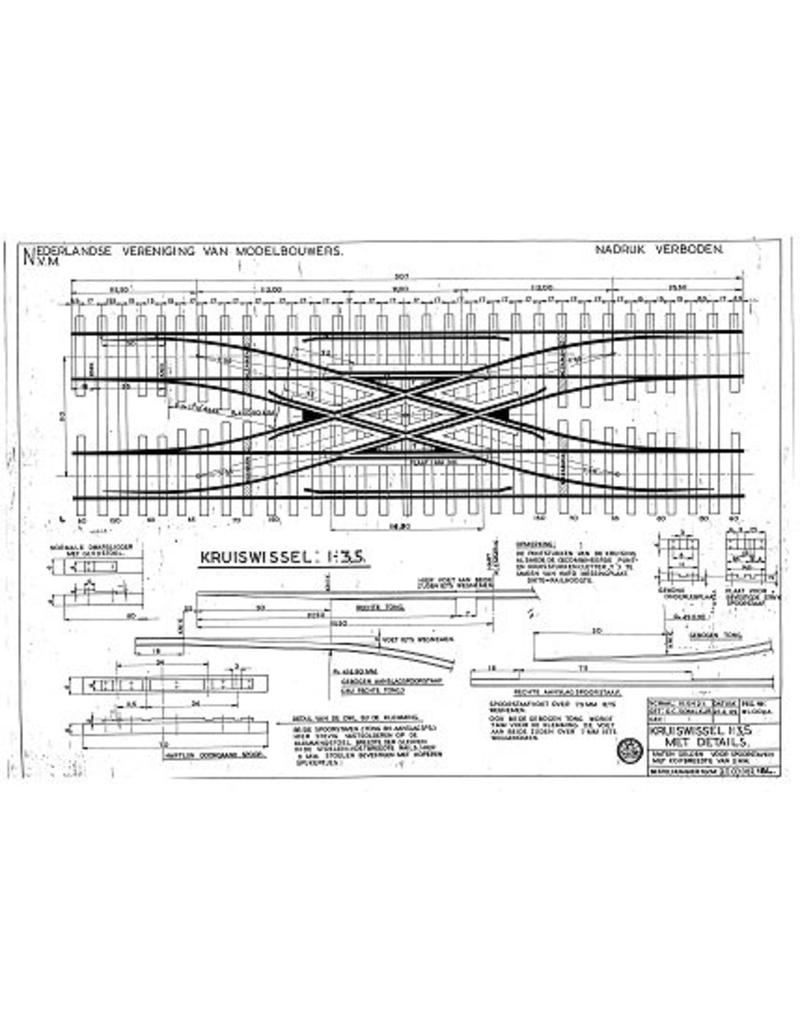

crossing turnout 1:3.5 for gauge 0 |
|
Quality |
construction drawing to model scale; dimensioned; details 2:1 |
|
Difficulty level |
B |
|
Scale |
1 : 1 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Special features |
dM 1949/6 |
|
Remarks |
