| Article number: | 20.07.010 |
Specifications :
|
Drawing number |
20.07.010 |
|
Author |
W.J. Dijkshoorn |
|
Description |

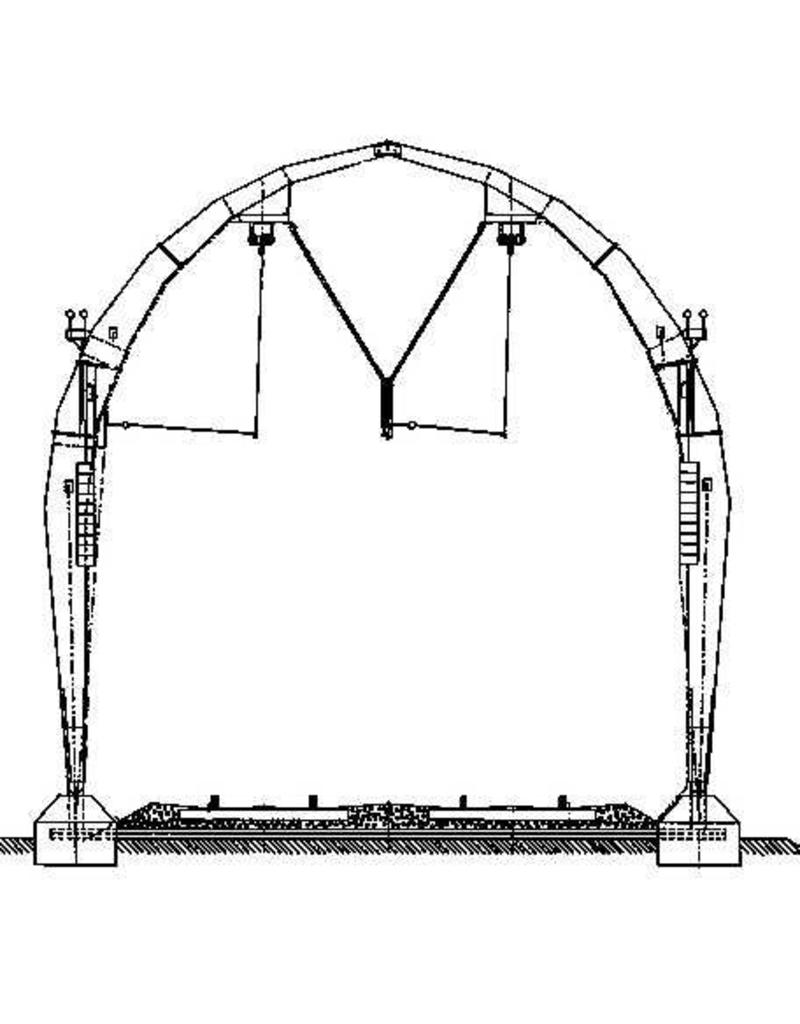

concrete overhead line portal (Gooilijn) for gauge 0 |
|
Quality |
dimensioned sketch with model and prototype dimensions |
|
Difficulty level |
C |
|
Scale |
1 : 1 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
1 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Particulars |
|
|
Remarks |
