| Article number: | 20.07.009 |
Specifications :
|
Drawing number |
20.07.009 |
|
Author |
E. ten Dam |
|

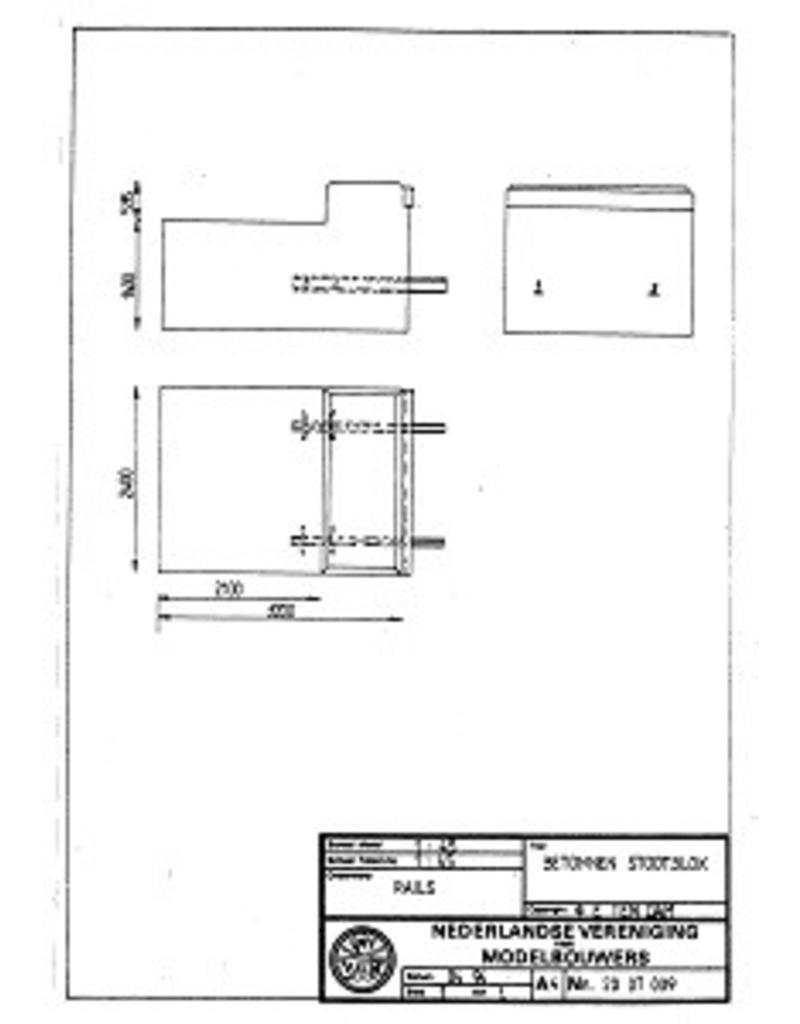

Description |
concrete buffer stop for track 0 |
|
Quality |
dimensioned sketch with prototype dimensions |
|
Difficulty level |
B |
|
Scale |
1 : 45 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
1 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
30 |
|
Details |
dM 1994/6 |
|
Remarks |
