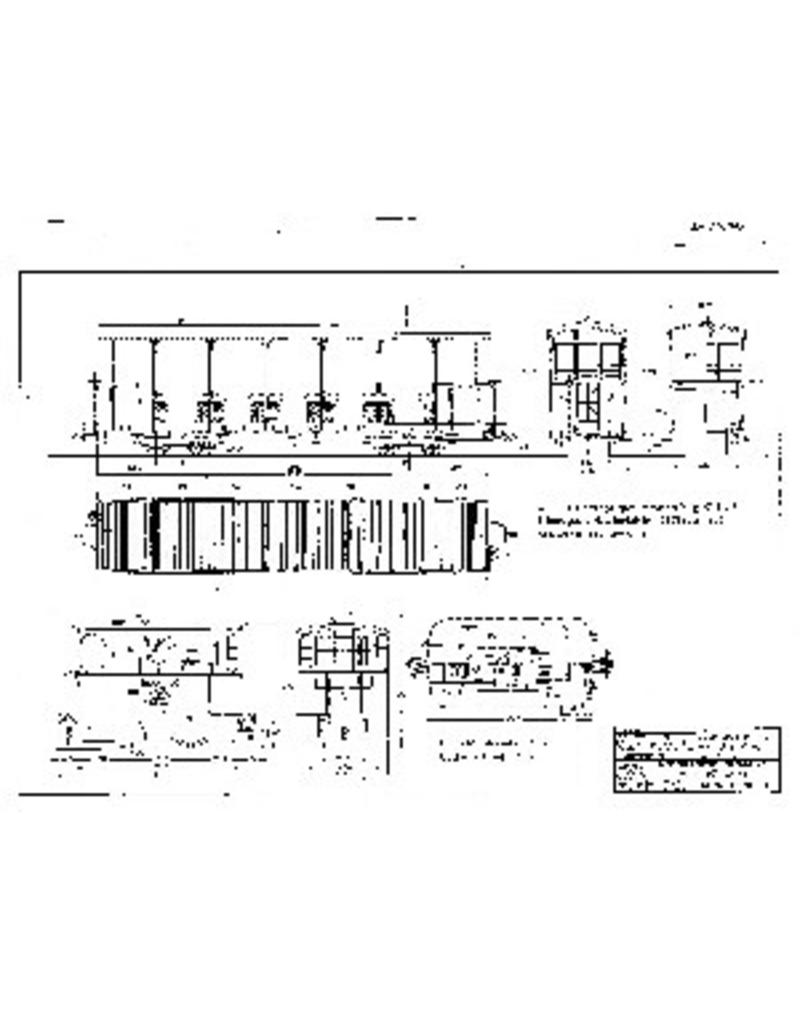

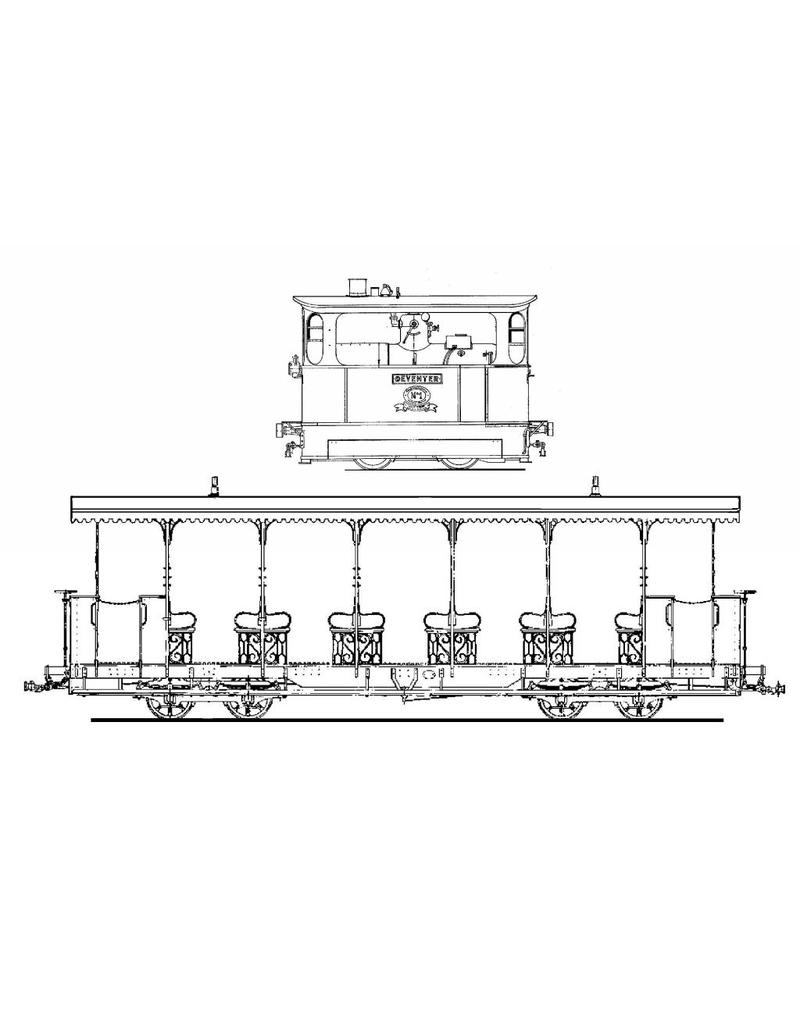

MBT 20.70.009 GOSM steam locomotive 1-5 (1885)(backer & Rueb); open carriage AB 11,13 (1903/06)

Drawing number

20.70.009

Author

J.F. Smit

Description

GOSM steam locomotive 1-5 (1885)(backer & Rueb); open carriage AB 11,13 (1903/06)(Nijm. Machinefabr.)

Quality

dimensioned sketches with prototype dimensions

Difficulty level

D

Scale

1 : 32

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

1

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

45

Special features

narrow-gauge rolling stock

dM 2008/1 (historical info)

Article copy: 22.70.009 (2 pages)

Notes
