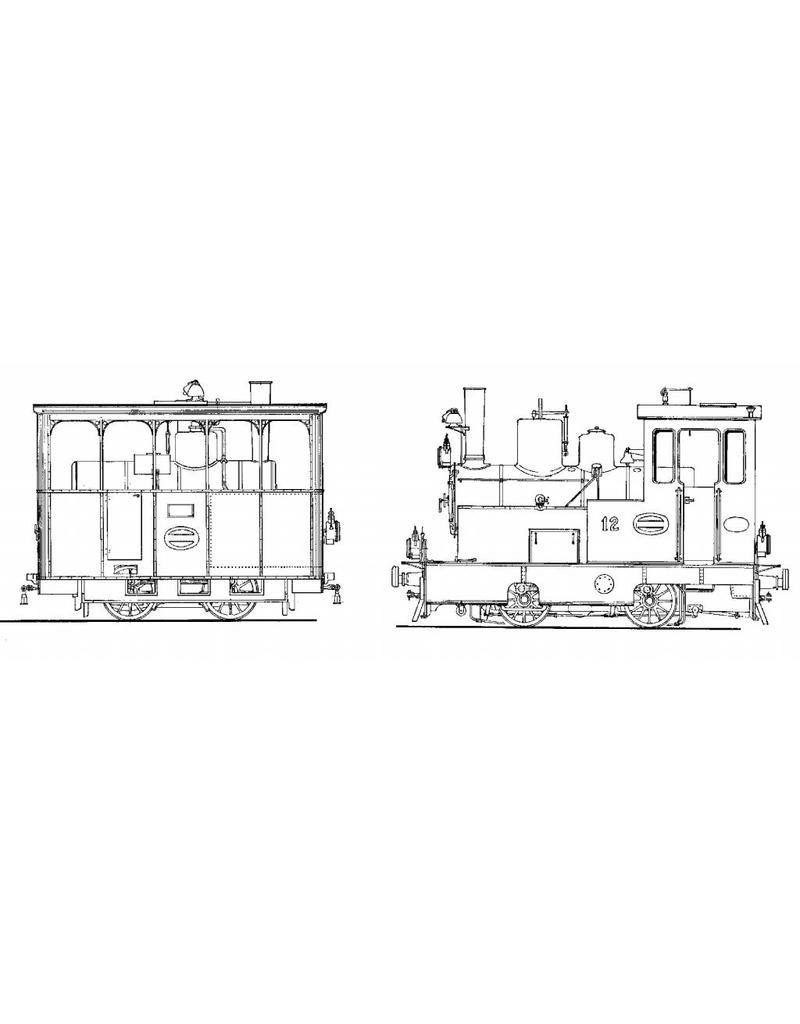

MBT 20.70.010 GOSM steam locos 6-8 (1902/3/5), 9-11, 12 (Henschel 1921/26)

Drawing number

20.70.010

Author

J.F. Smit

Description

GOSM steam locos 6-8 (1902/3/5), 9-11, 12 (Henschel 1921/26)

Quality

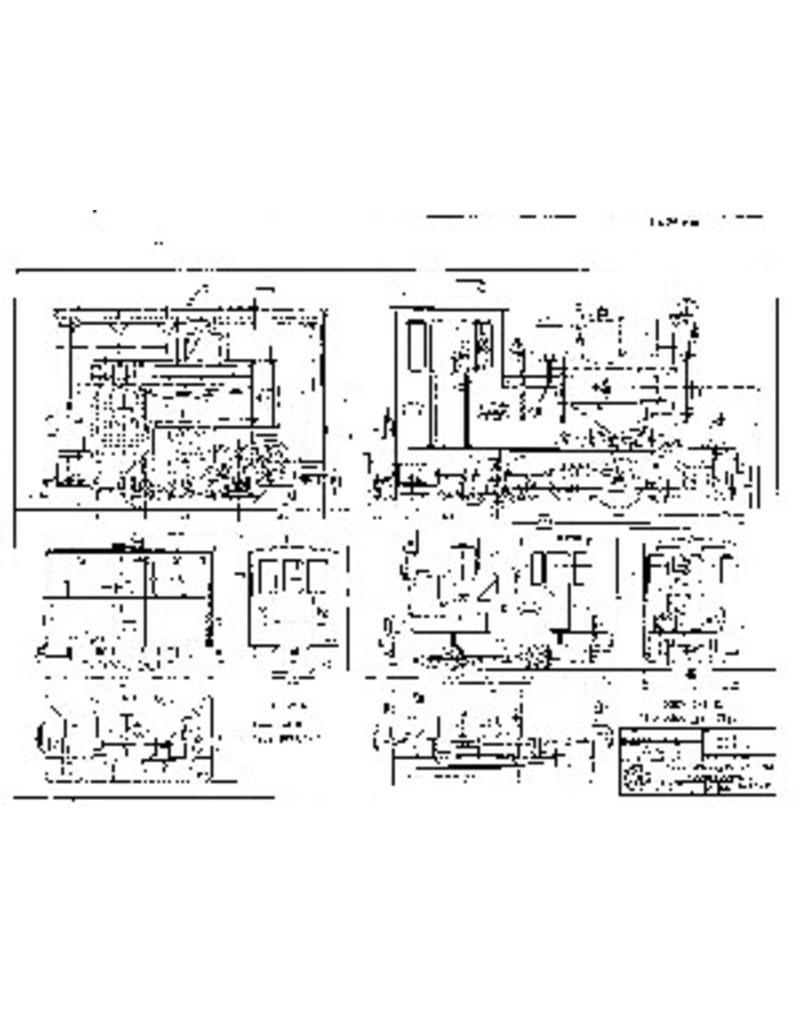

dimensioned sketches with main dimensions prototype

Difficulty level

C

Scale

1 : 20,1 : 32

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

1

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

45

Particulars

narrow gauge rolling stock

dM 2008/1 (historical info)

Copy of article: 22.70.010 (2 pages)

Notes
