| Article number: | 10.10.020 |
The ms Willemstad was a Dutch cargo and passenger ship that entered service in 1950 with the Royal Netherlands Steamship Company (KNSM). The ship was a converted version of the ms Socrates, built in 1938, which was originally designed as a cargo ship. After the conversion, the ms Willemstad was deployed on the route Amsterdam – Southampton – Caribbean ports – Georgetown (Guyana).
Gross tonnage: 5,088 tons
Type: Single-screw motor ship
Speed: 14.5 knots
Passenger capacity: 156 persons, divided into three classes
Converted: 1950
Ex-name: ms Socrates
After the conversion in 1950, the ms Willemstad was deployed on the aforementioned route. In 1964, the ship's hull was painted grey. In 1967, the ship was sold and in 1973 it was scrapped in Taiwan
Specifications :
|
Drawing number |
10.10.020 |
|
Author |
J.G.C.C.M. Muskens |
|
Description |

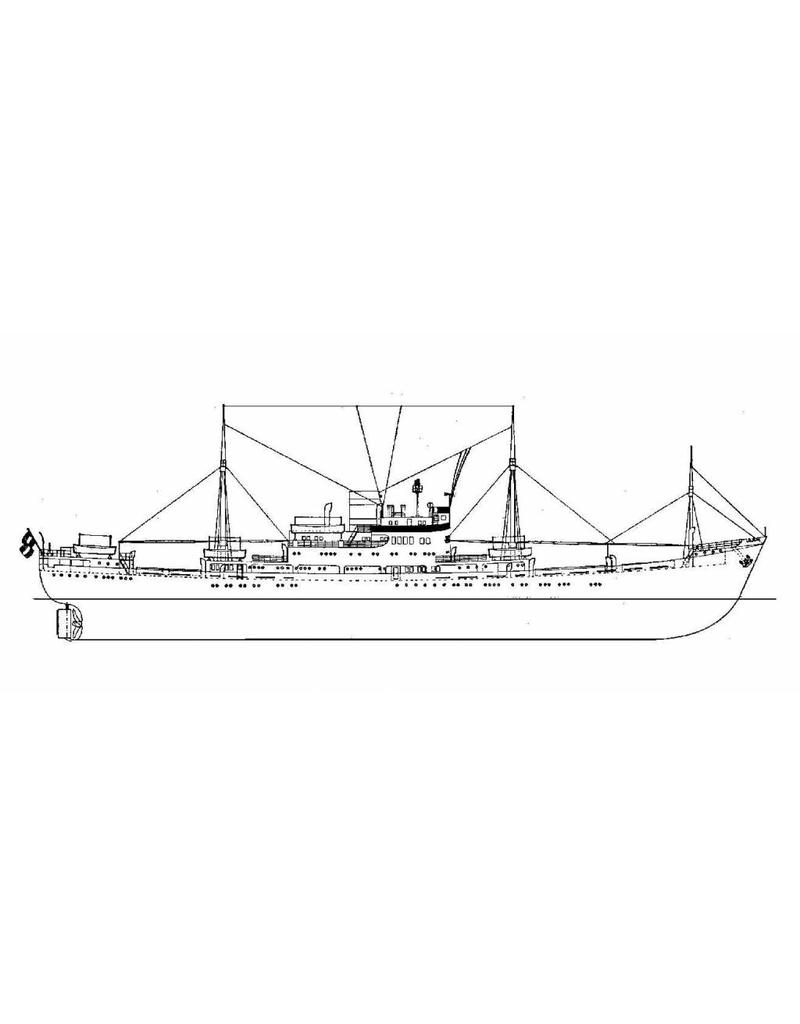

cargo-passenger ship ms "Willemstad" (1950) ex "Socrates"(1938)- KNSM |
|
Quality |

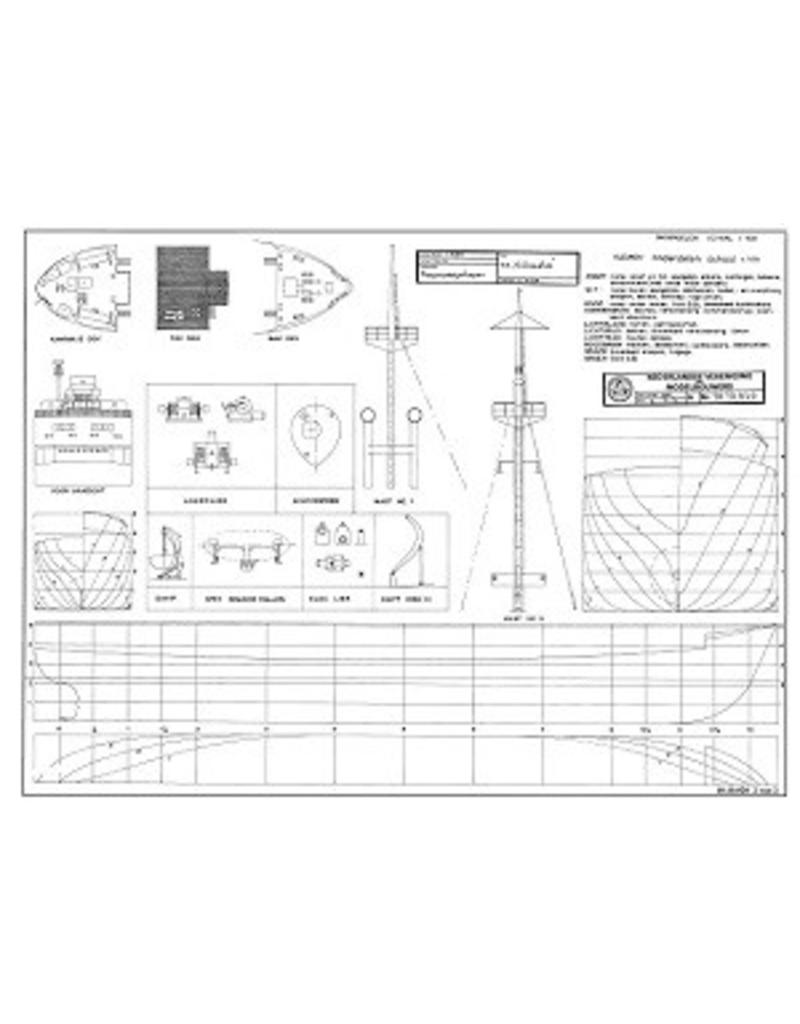

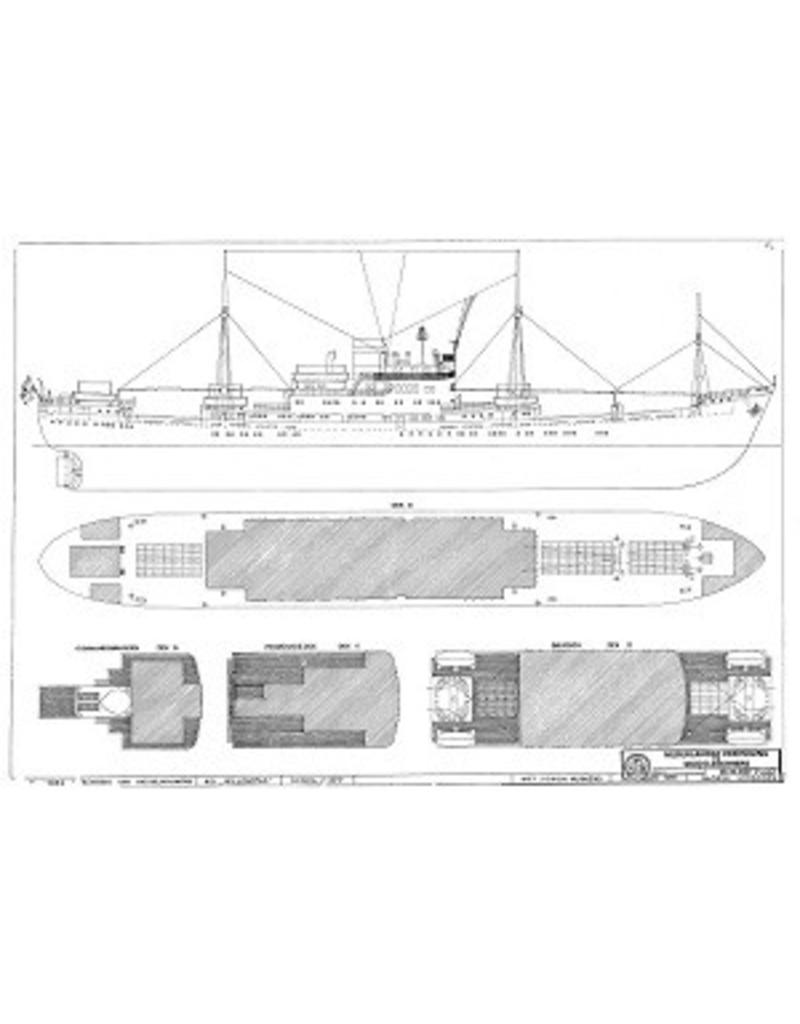

lines/frames; frames also 1:100; side view; deck plans |
|
Scale |
1 : 200 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
2 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
l.o.a. 58 cm |
|
Remarks |
