| Article number: | 10.10.013 |

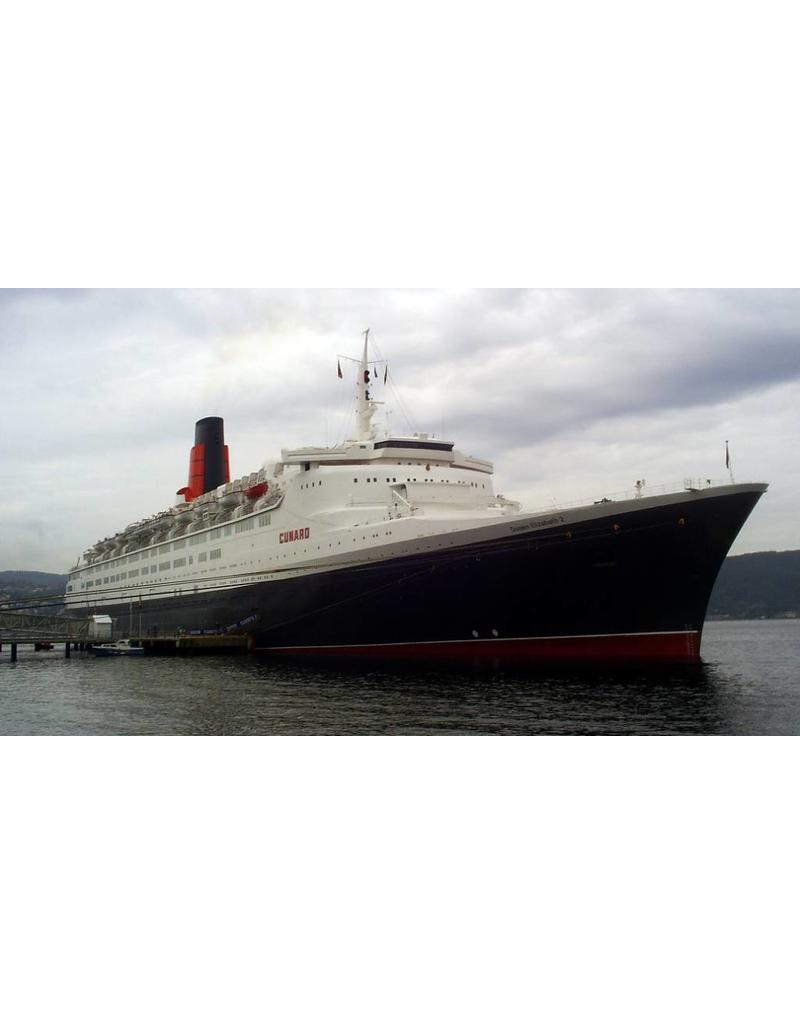

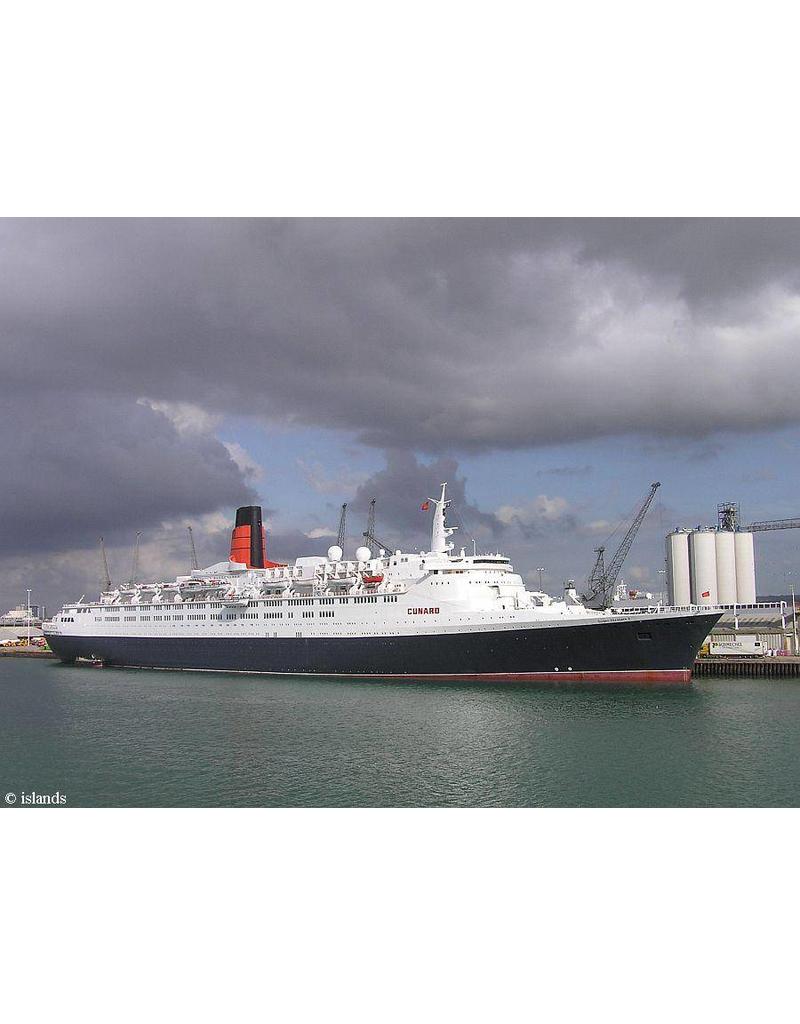

The SS Queen Elizabeth 2 (usually abbreviated to QE2) is one of the most famous passenger ships of the 20th century.
Type: Ocean liner / cruise ship
Built by: John Brown & Company, Clydebank (Scotland)
Owner: Cunard Line (British shipping company)
Launched: 20 September 1967
Entered service: 2 May 1969
Decommissioned: 27 November 2008
Length: 293.5 metres
Beam: 32 metres
Tonnage: approx. 70,000 GRT (after refits)
Speed: max. 32.5 knots
Passenger capacity: approx. 1,900 passengers
Crew: approx. 1,000
The QE2 was built as the successor to the famous Queen Mary and Queen Elizabeth.
Initially intended for the transatlantic service between Southampton and New York.
She was the last true ocean liner built for this route.
The QE2 had a streamlined profile, modern turbine propulsion and was lighter and faster than her predecessors.
It was later converted from steam turbines to diesel-electric propulsion (1986–87).
In 1982, the QE2 was requisitioned by the British government and converted into a troop transport ship.
It transported more than 3,000 troops and helicopters to the South Atlantic.
After her transatlantic service, she was mainly used for luxury cruises around the world.
The QE2 made many voyages around the world and enjoyed worldwide fame.
In 2008, she was taken out of service and sold to investors in Dubai.
The intention was to convert her into a floating hotel.
Since 2018, the QE2 has been permanently moored in the port of Dubai and serves as a hotel, restaurant and museum.
Specifications:
|
Drawing number |
10.10.013 |
|
Author |
P. Akkerman |
|
Description |

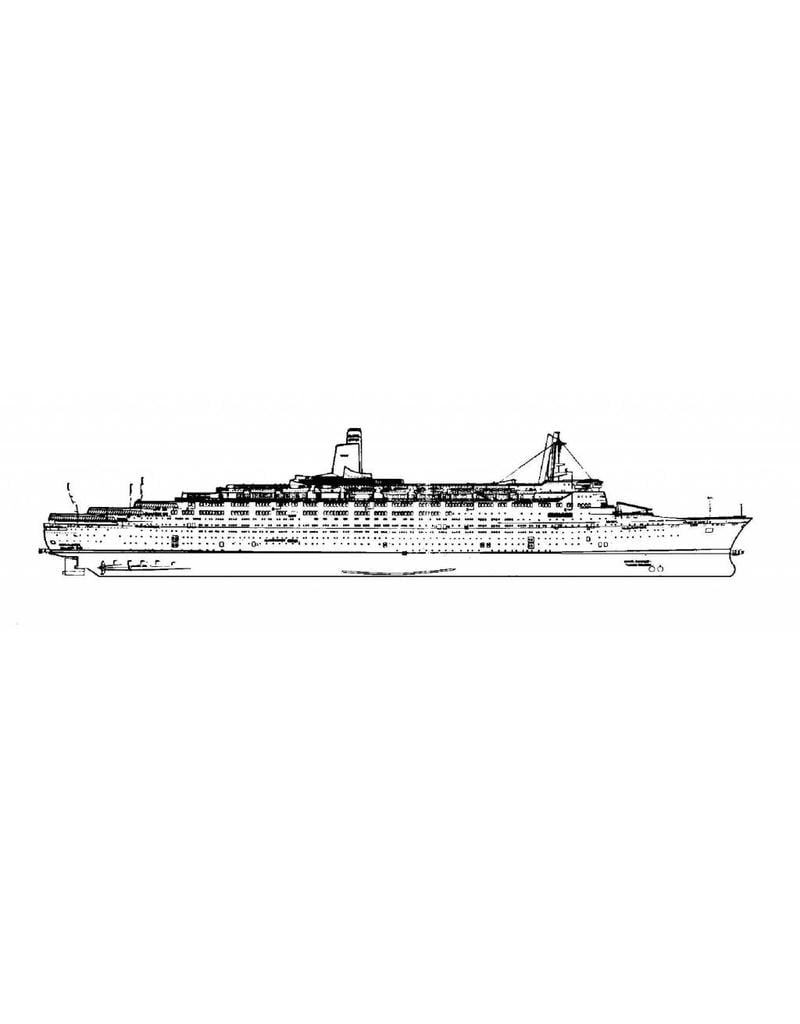

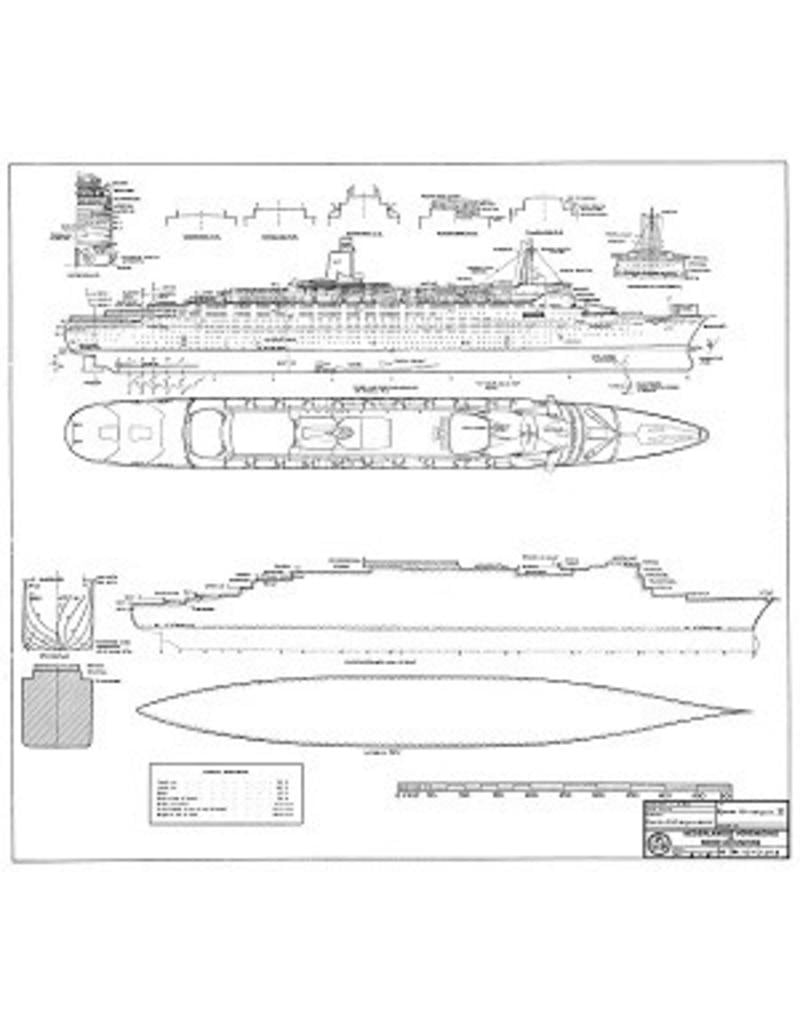

Passenger ship SS "Queen Elizabeth 2" (1969) - Cunard |
|
Quality |
frames; side view; top view; profile |
|
Scale |
1 : 550 |
|
Number of sheets A00 |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
1 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text pages |
0 |
|
Weight in grams |
65 |
|
Details |
Overall length 53 cm |
|
Remarks |
