| Article number: | 10.10.018 |

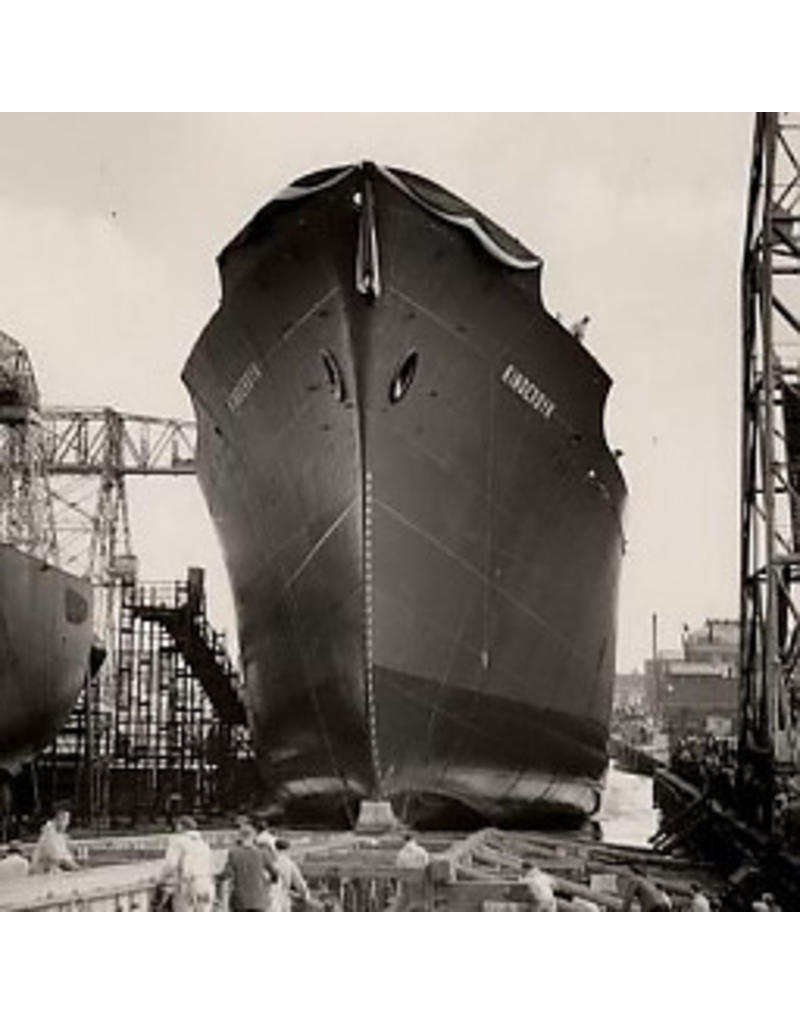

The ms Kinderdijk from 1955 was a Dutch cargo ship, built by the Royal Company "De Schelde" in Vlissingen. The ship was launched on 17 September 1955 and delivered on 2 March 1956. It was one of six K-type ships, specially designed for the Holland-America Line (HAL).
Dimensions: 140.14 m x 18.86 m x 11.28 m
Gross Tonnage (GRT): 5,634
Net Tonnage (NRT): 3,153
Deadweight Tonnage (DWT): 7,315
Speed: 16 knots
Engine Power: 7,200 hp (Werkspoor-Lucht 9-cylinder diesel engine)
Crew: 58 persons
Layout: Open shelterdeck with 2 decks, 17 derricks, 5 holds, deep tanks (2), refrigerated and freezer rooms.
On 3 March 1956, the Kinderdijk made her maiden voyage from Rotterdam to New York. During her service, she primarily sailed to the east coast of the United States, the Gulf of Mexico, and to Mexican ports such as Veracruz, Tampico, and Coatzacoalcos. The voyages to Mexico were particularly pleasant for the crew, who could often enjoy local outdoor cafes with live music ashore in the evenings.
In April 1969, after more than 75 voyages for HAL, the ship was chartered to Johnson-Lines in Sweden for liner services between Sweden and South America. In April 1970, the Kinderdijk was sold to the Yugoslav shipping company Splosna Plovidba Piran and renamed Borovnica. She sailed on routes between the Mediterranean and West Africa. In 1982, the ship was sold for scrap and delivered to the Brodopas scrapyard in Split, Yugoslavia, on 30 December 1982
Specifications :
|
Drawing Number |
10.10.018 |
|
Author |
C. Oliemans |
|
Description |
cargo ship ms "Kinderdijk" (1955) - HAL |
|
Quality |

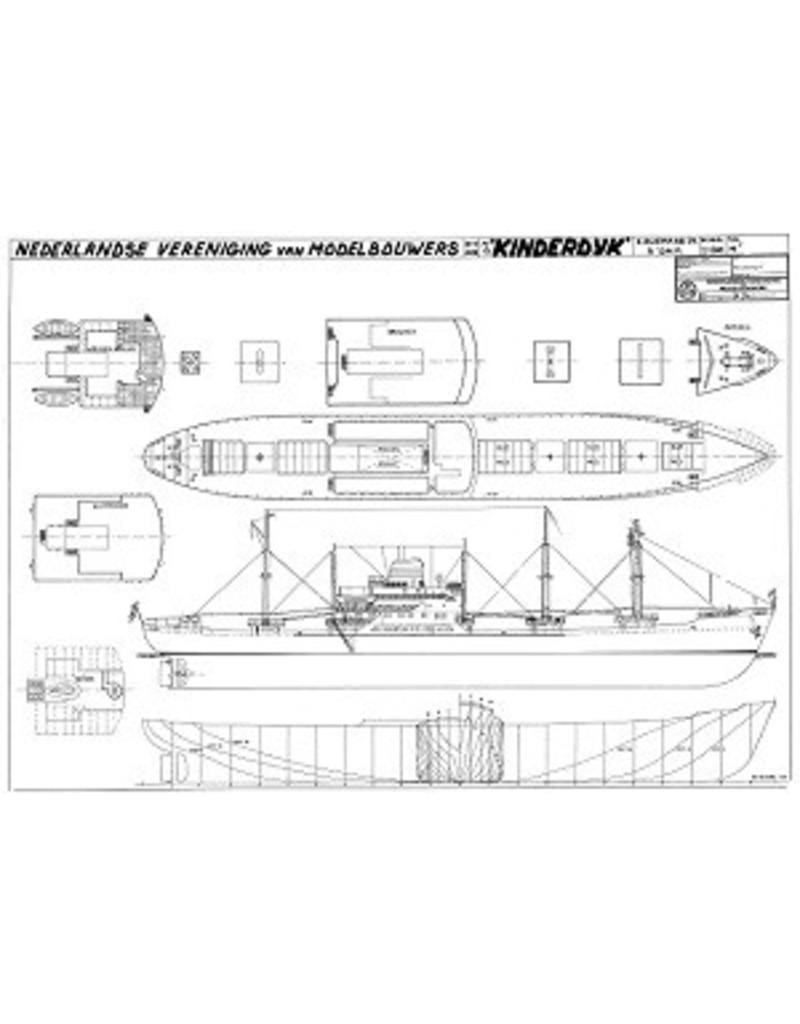

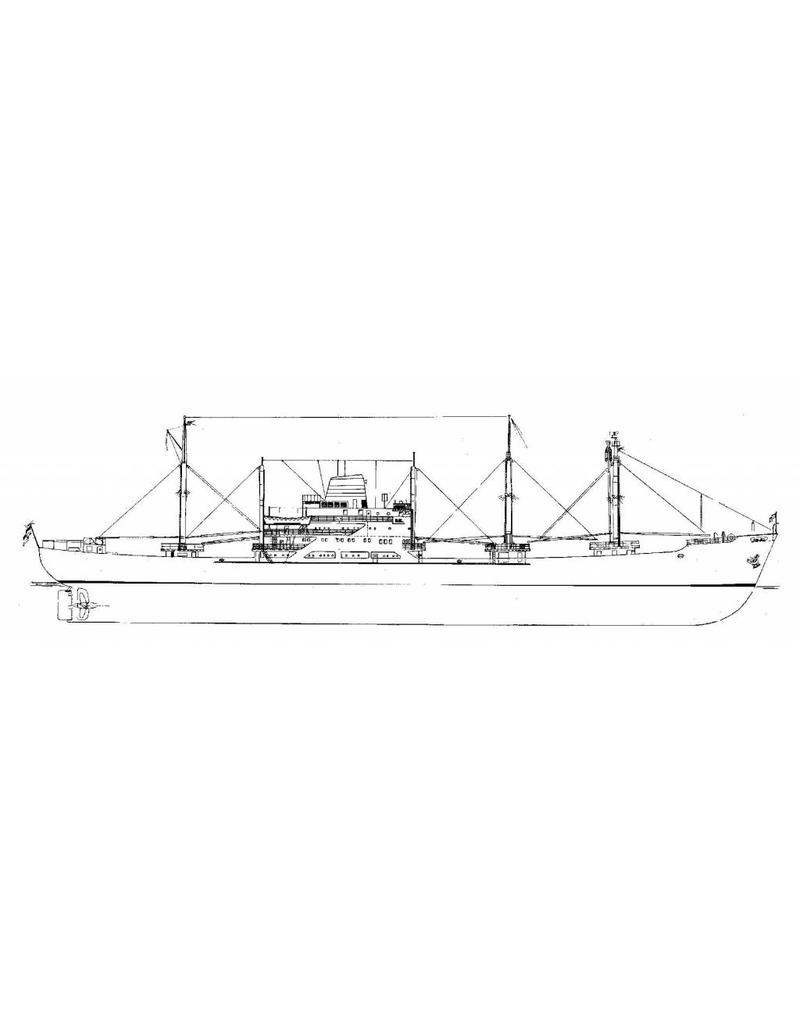

sp/lines; side view; deck plans |
|
Scale |
1 : 200 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
l.o.a. 66 cm |
|
Remarks |
