| Article number: | 10.10.022 |
Specifications :
|
Drawing number |
10.10.022 |
|
Author |
J. Koutstaal |
|
Description |

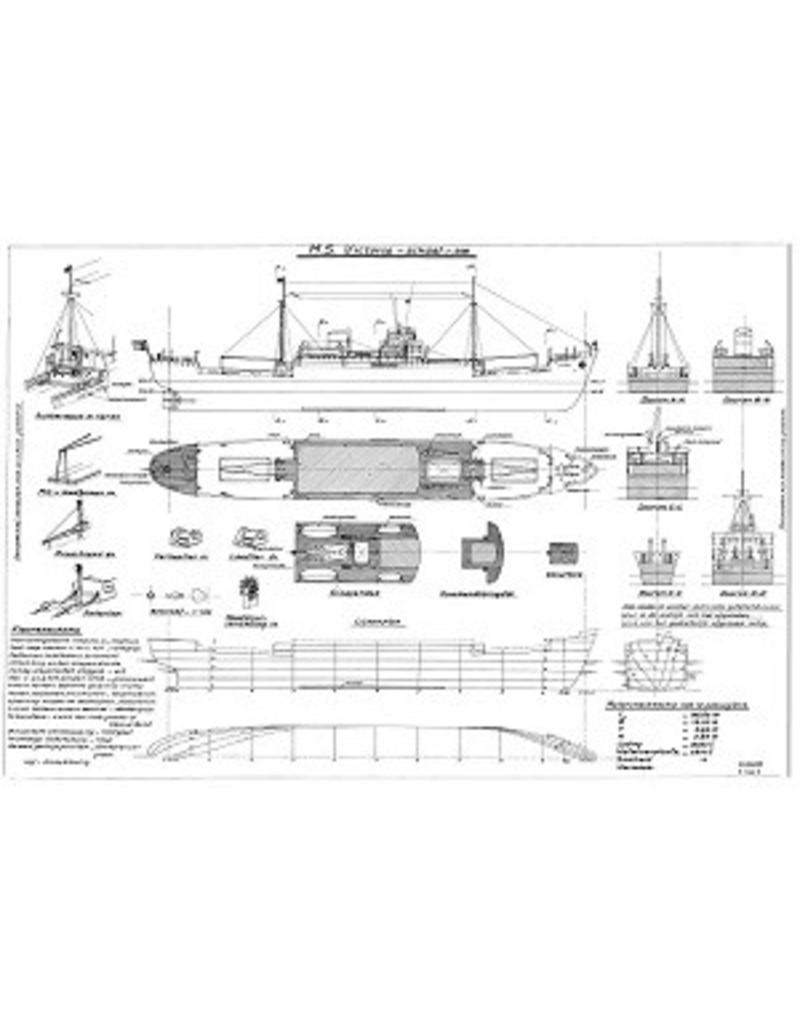

cargo ship ms "Victoria" |
|
Quality |

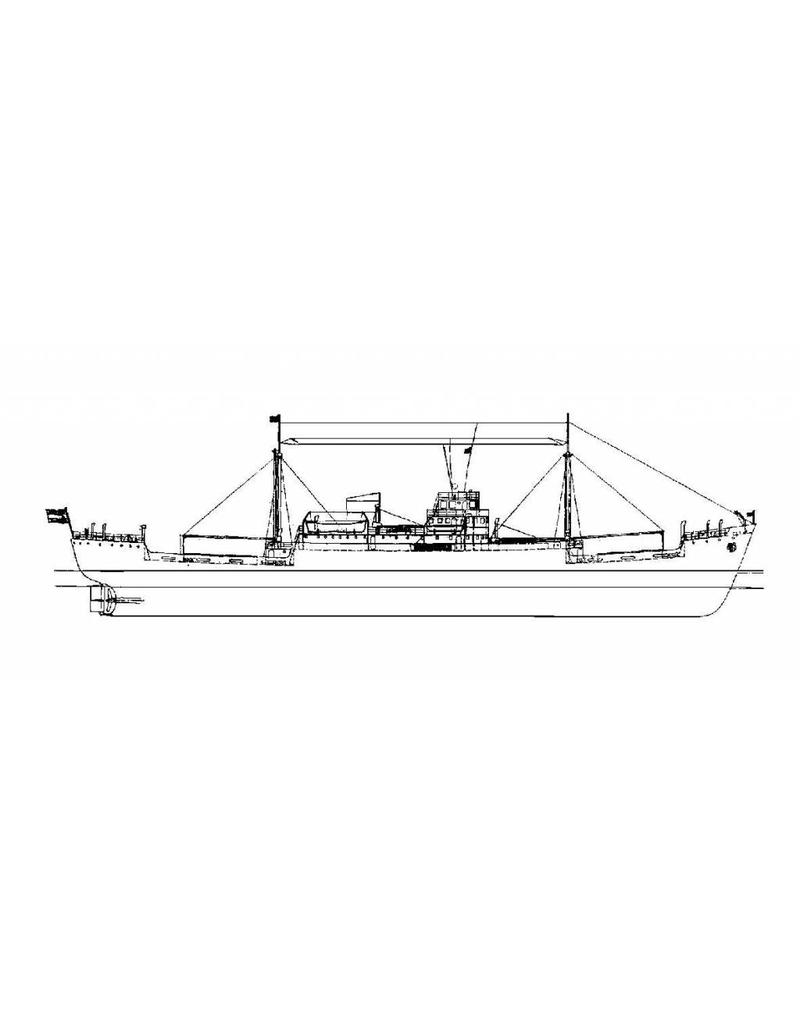

frames/lines; side view; deck plans; details |
|
Scale |
1 : 200 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Special features |
l.o.a. 47 cm |
|
Remarks |
