| Article number: | 10.13.015 |
Specifications :
|
Drawing number |
10.13.015 |
|
Author |
C. Hardonk |
|
Description |

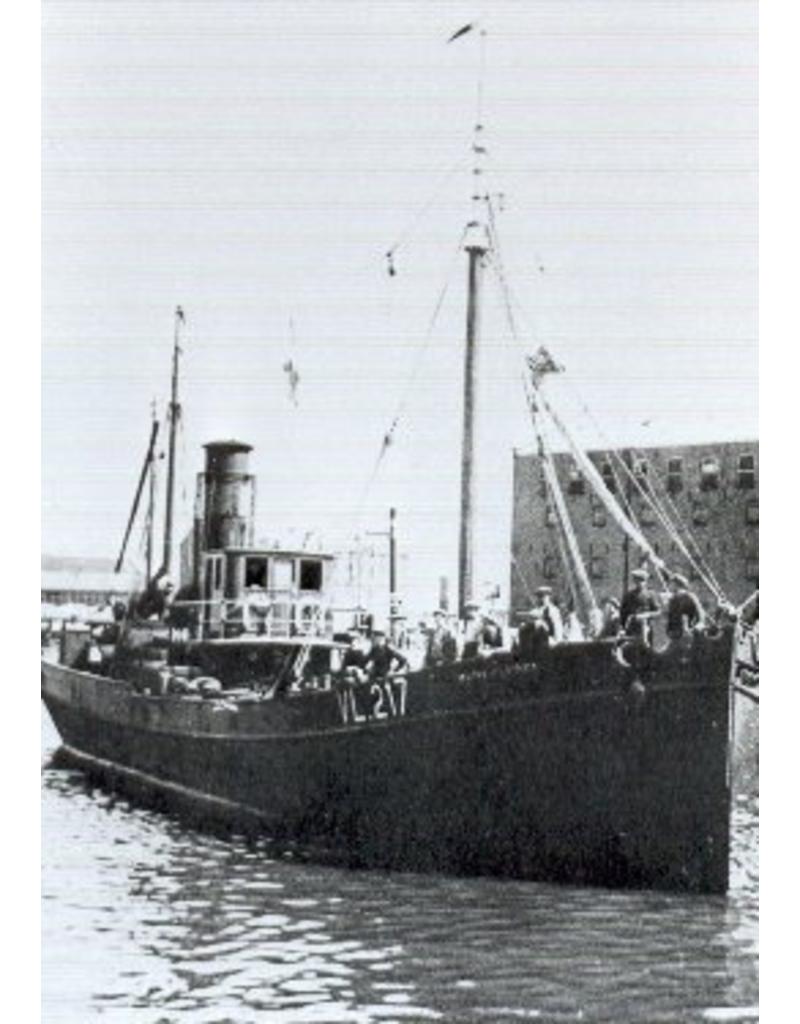

steam drifter "Maria-Adriana" VL 217 (1925) - Fishery Co. "Callenburg" |
|
Quality |

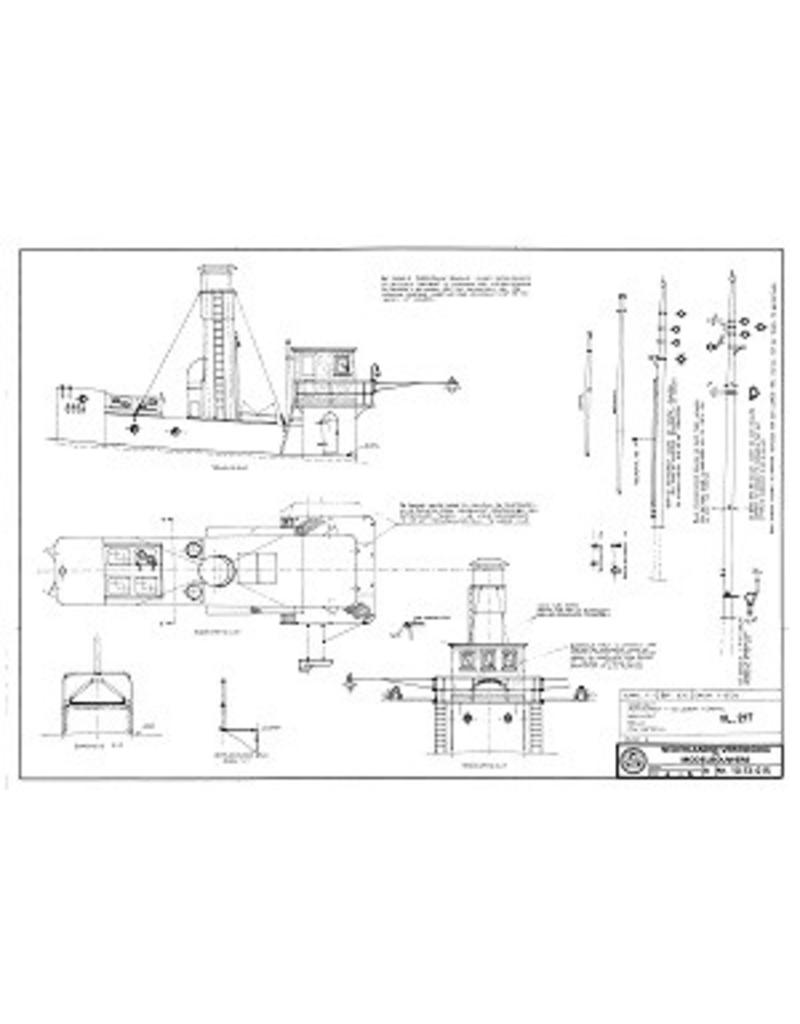

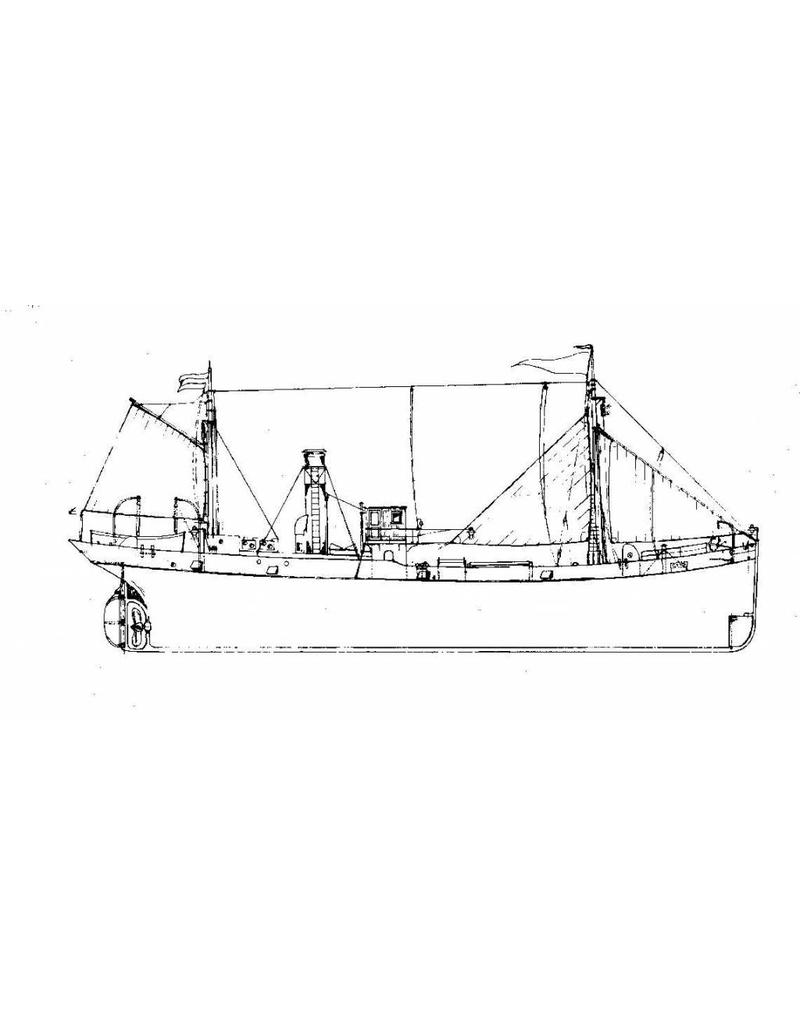

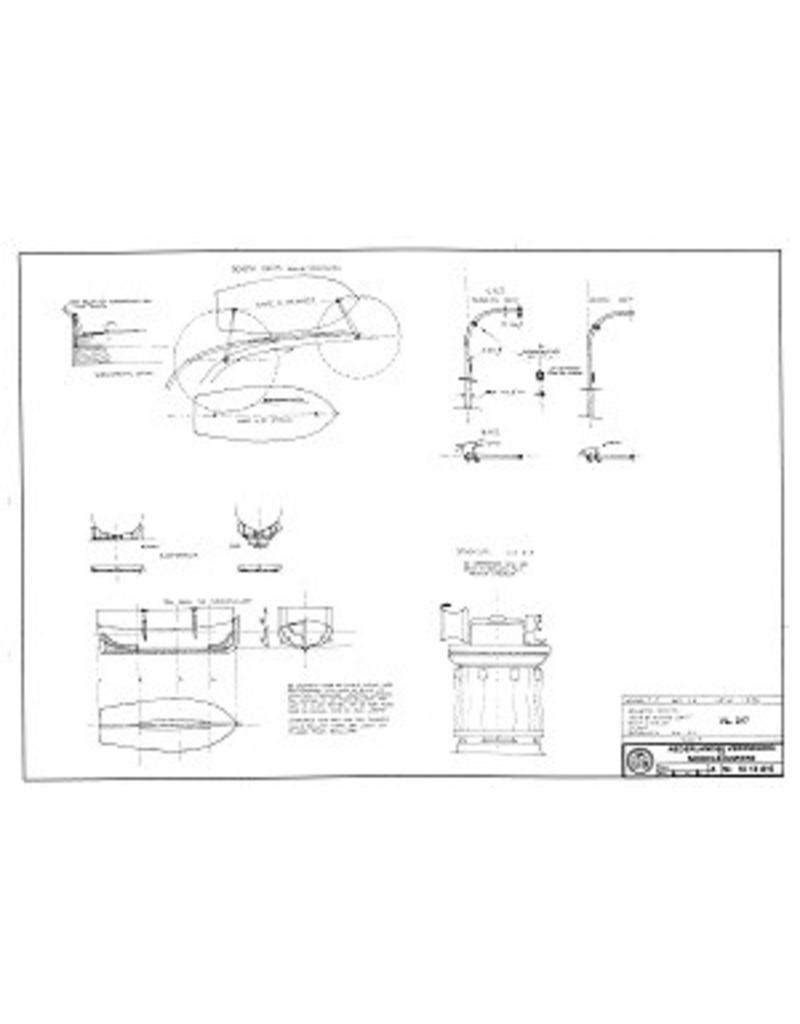

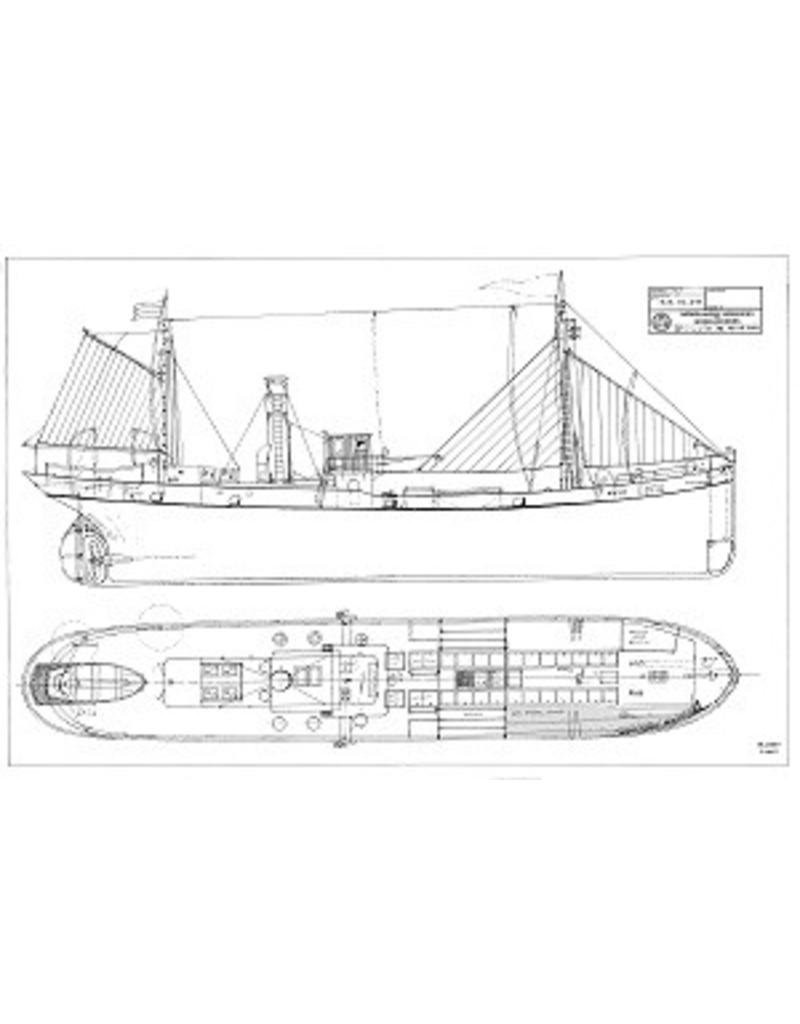

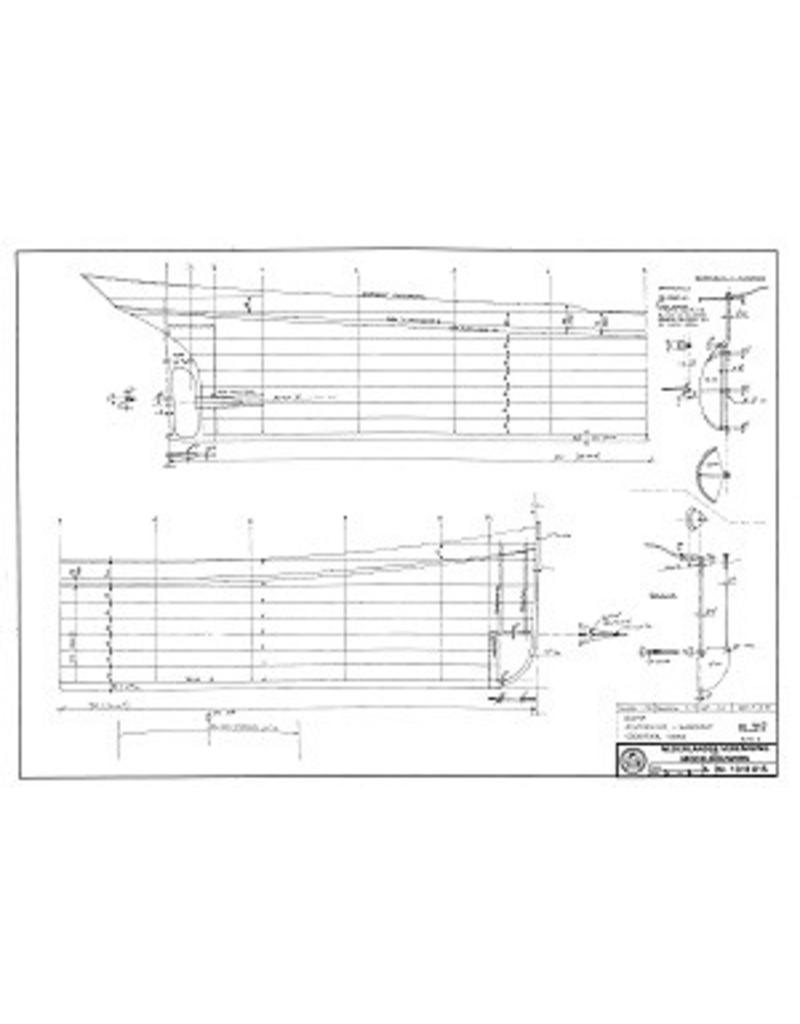

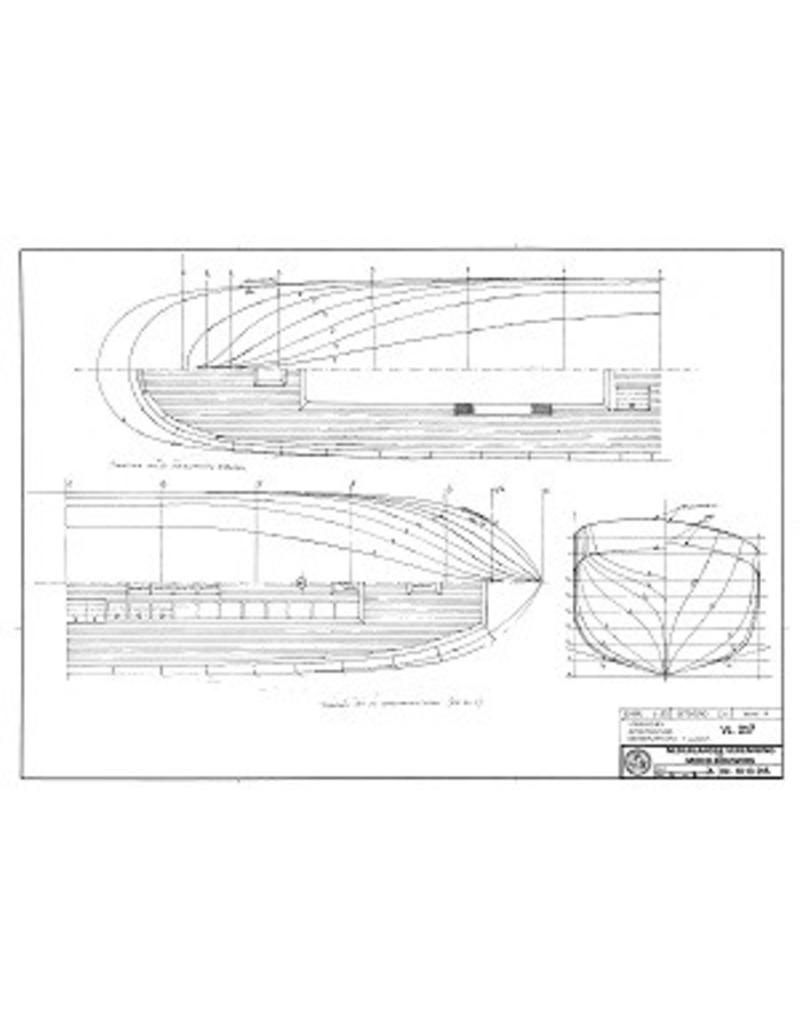

frames/lines; side view; longitudinal section 1:50; deck plan; details |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
4 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
145 |
|
Particulars |
l.o.a. 78 cm |
|
Remarks |
