MBT 10.19.023 "Taklift 4" (1981), after conversion - Smit Tak

Article number:

10.19.023

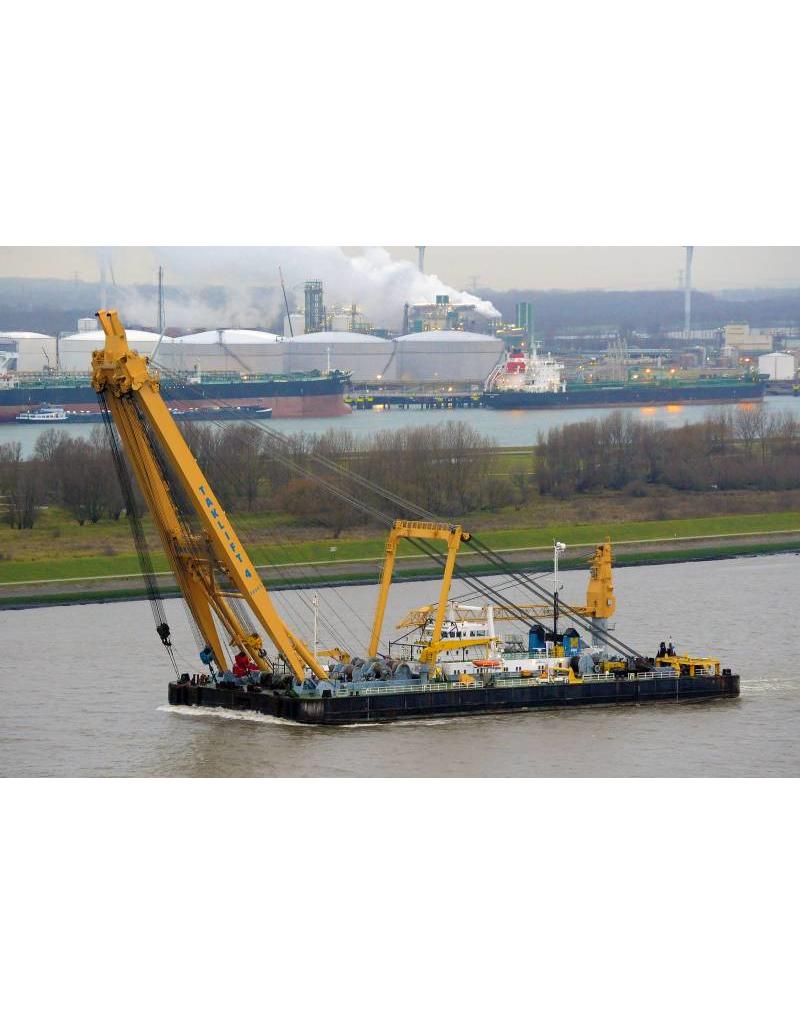

Taklift 4 is a floating sheerleg of the Transport & Heavy Lift division of the Dutch company Smit Internationale. The vessel is registered in Rotterdam.

The vessel was launched on 9 May 1981 at the shipyard of Verolme Verenigde Scheepswerven in Heusden. The vessel is approximately 83.2 metres long, 36.9 metres wide and has a minimum draught of 3 m and a height of 24.7 m. The vessel can accommodate 31 people.

The sheerleg has a lifting capacity of 2,200 tonnes, while a mass of 3,000 tonnes can be lifted to the waterline using the winches on deck.

The Taklift 4 served in the construction of the Oosterscheldekering, where the vessel positioned the steel gates, the traffic tubes, threshold beams and sill beacons. This sheerleg was also deployed during the salvage of the capsized British ferry Herald of Free Enterprise near Zeebrugge.

Specifications:

Drawing number	10.19.023
Description	"Taklift  4" (1981), after conversion - Smit Tak

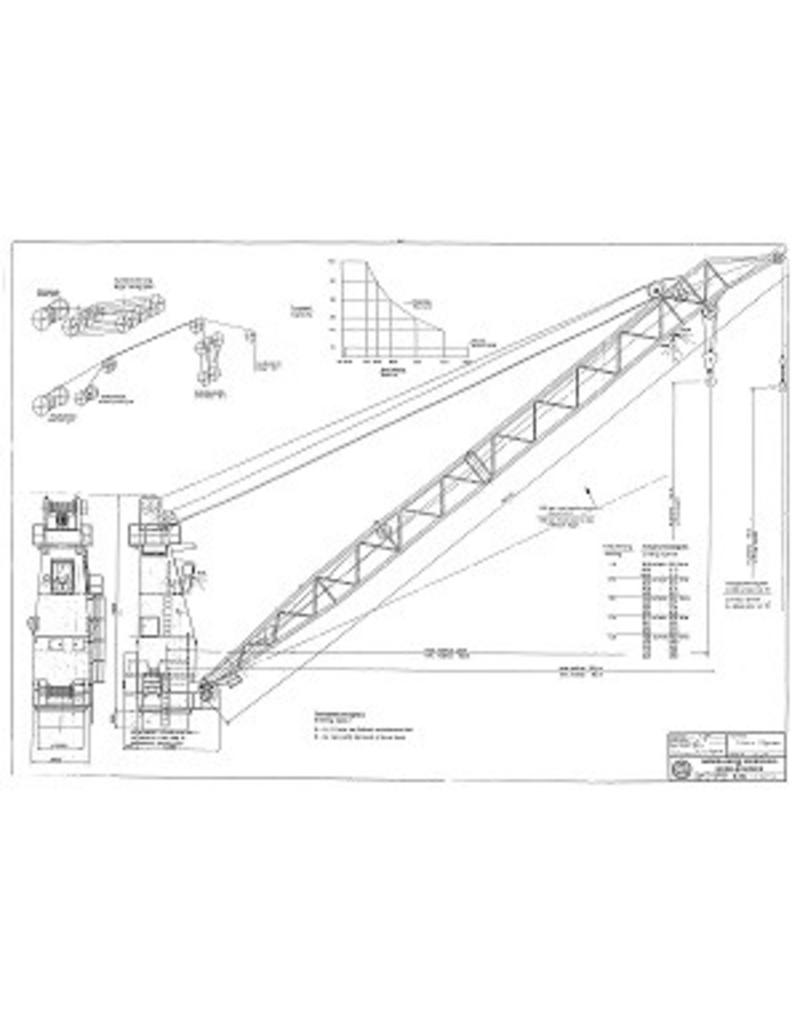

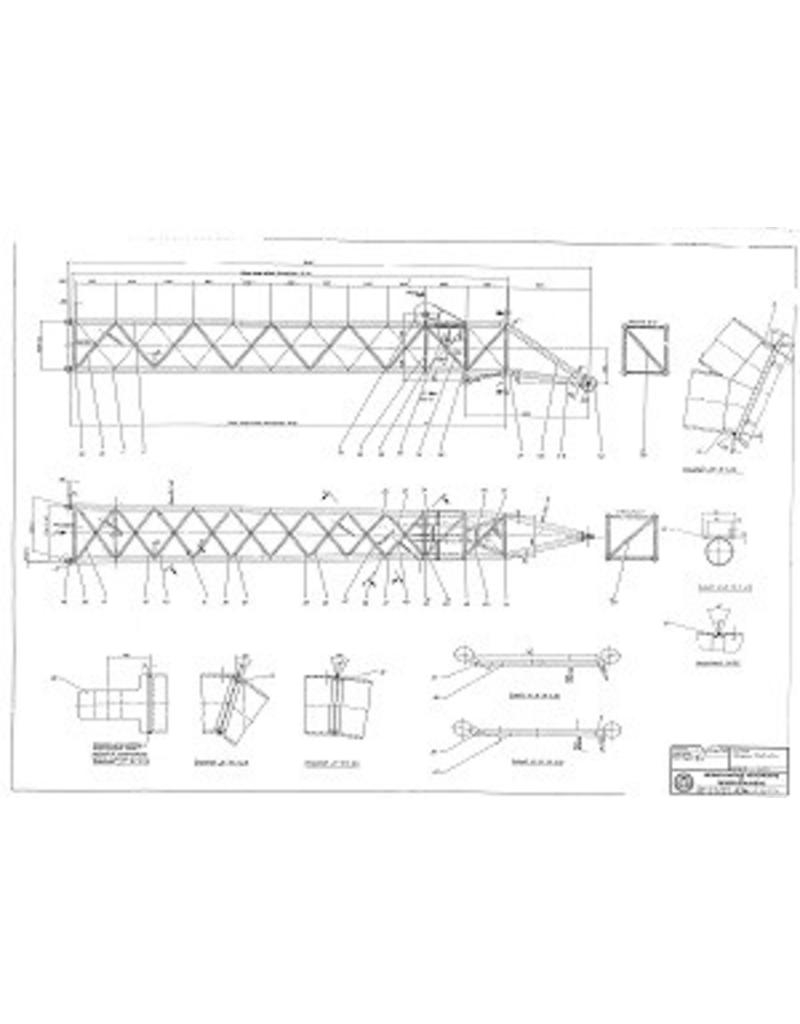

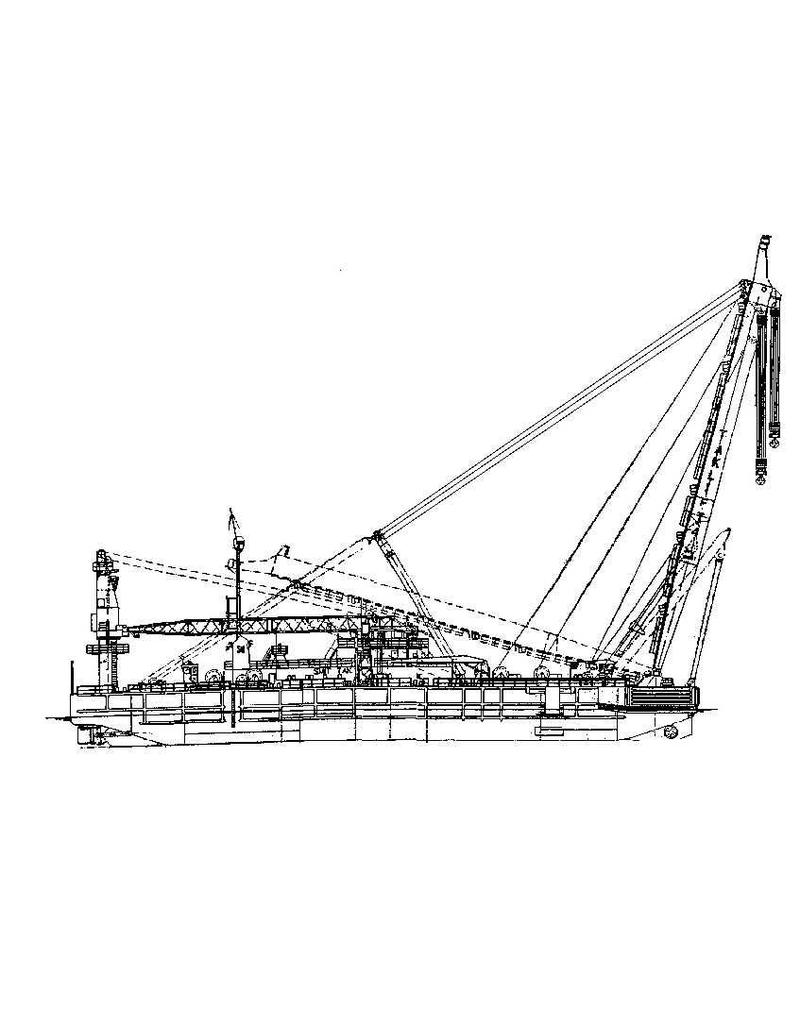

Quality	side view and deck plans 1:100; tower crane details 1:25
Scale	1 : 100
Number of sheets A00	0
Number of sheets A0	1
Number of sheets A1	2
Number of sheets A2	0
Number of sheets A3	0
Number of sheets A4	0
Total number of drawing sheets	3
Number of A4 text sheets	0
Weight in grams	185
Particulars	according to data from A.A. Hoomoedt These are shipyard drawings, which have been extended with a tower crane compared to 10.19.004; the construction description of 10.19.004 (see 72.10.011) can serve as an aid
Notes	renumber to 16.19…. add year of conversion
