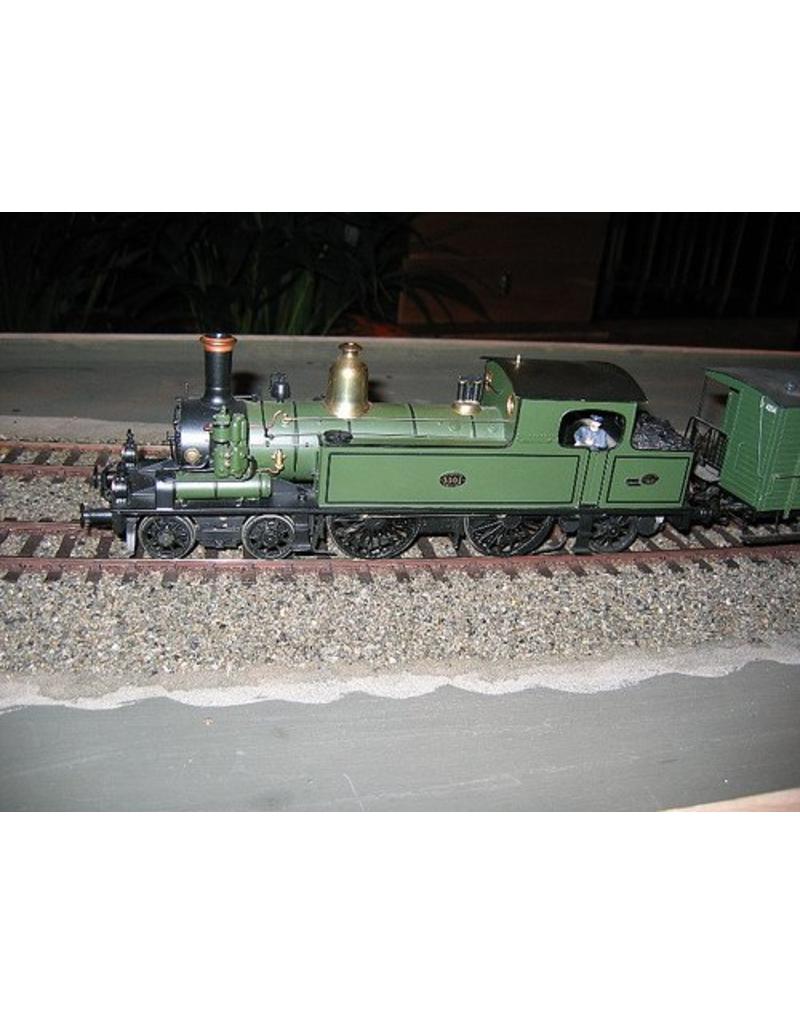

MBT 20.00.001 NS 5500 tank locomotive for O gauge

Drawing number

20.00.001

Author

H. Wijnbeek

Description

NS 5500 tank locomotive for O gauge

Quality

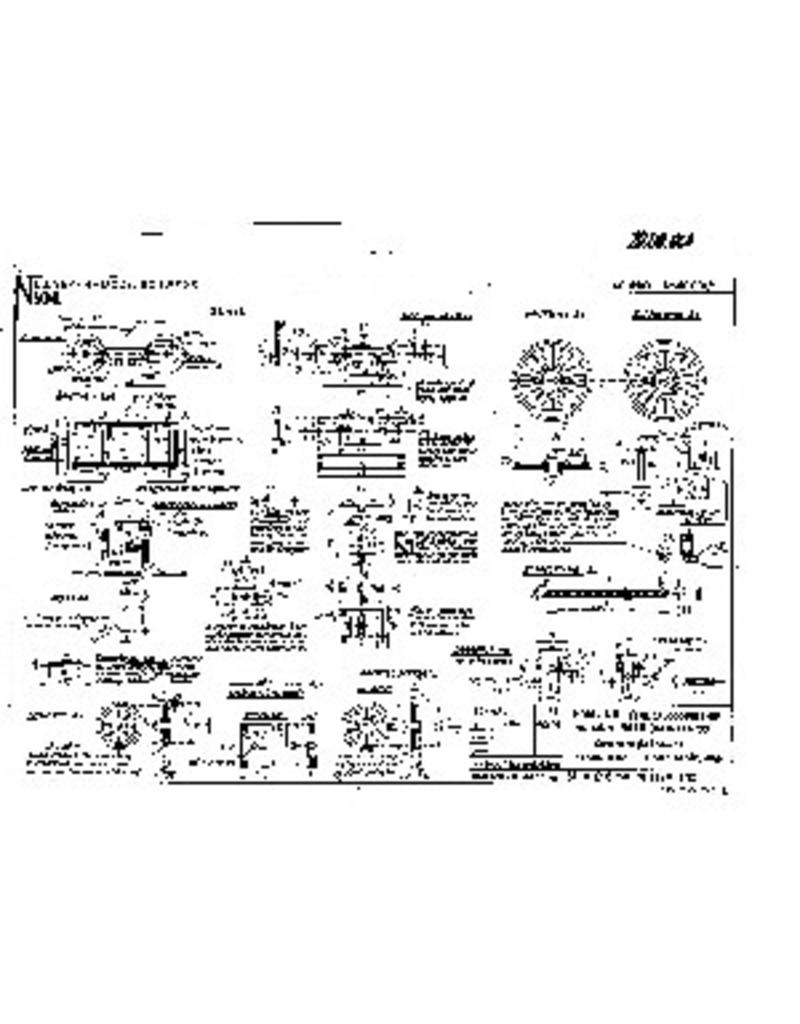

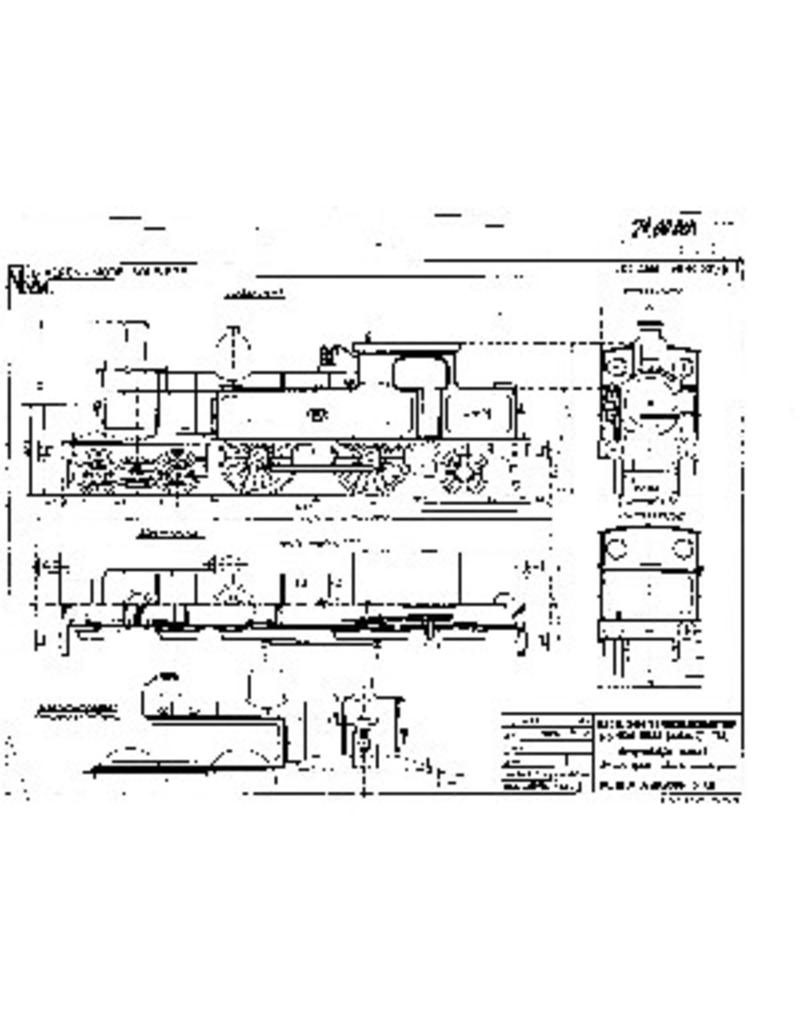

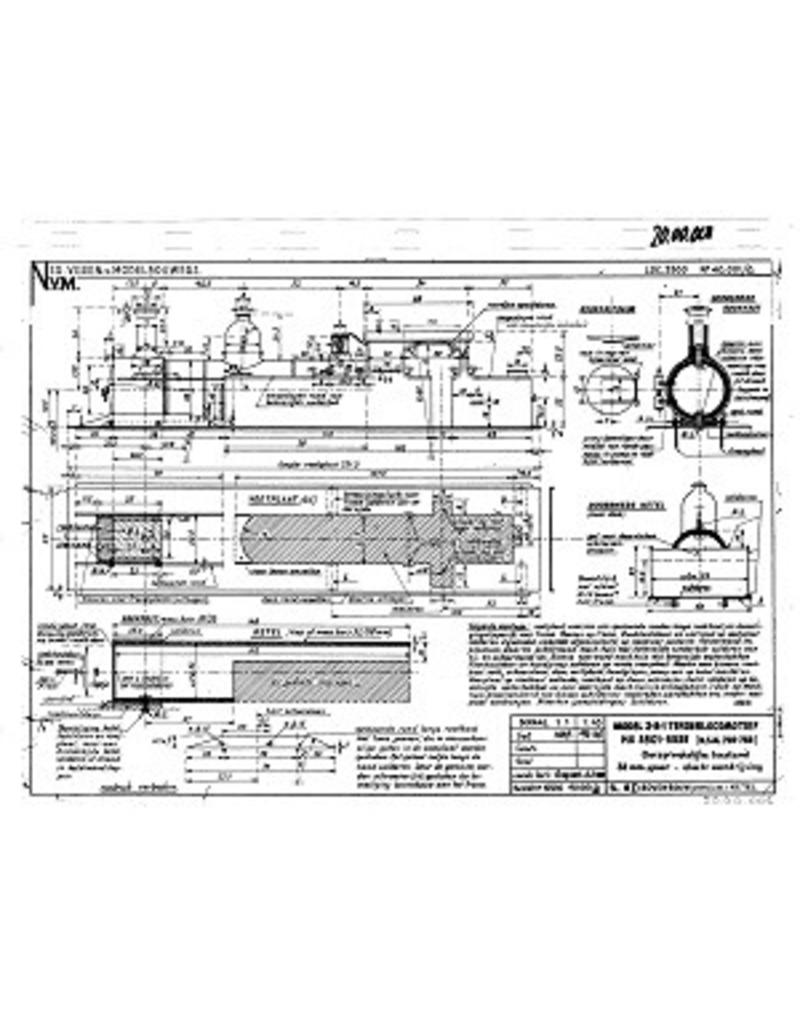

complete construction drawing; all parts dimensioned

Difficulty level

C

Scale

1 : 45

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

0

Number of A3 sheets

5

Number of A4 sheets

0

Total number of drawing sheets

5

Number of A4 text sheets

0

Weight in grams

75

Special features

dM 1946/1,2,3,6; 2008/3

Copy of article: 22.00.001 (13 pages) (the original articles)

The 2008 article is a re-publication, with an expansion regarding the livery and history.

The drawn electric drive is outdated and will need to be adapted by the builder at their own discretion.

Remarks
