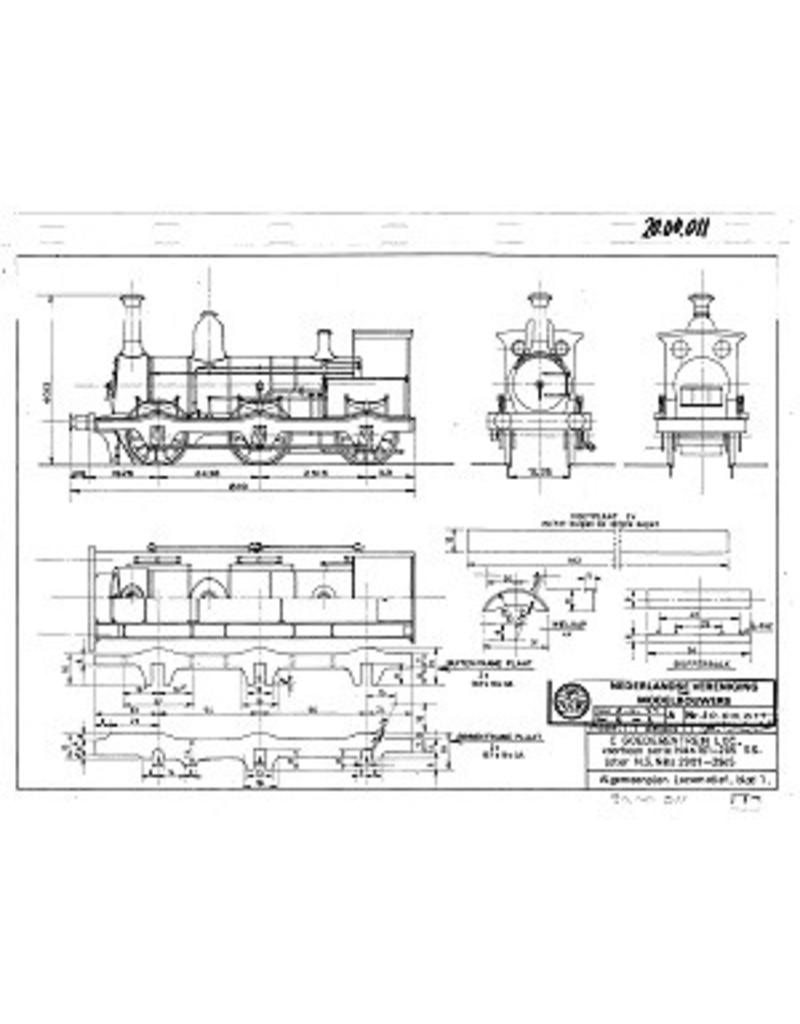

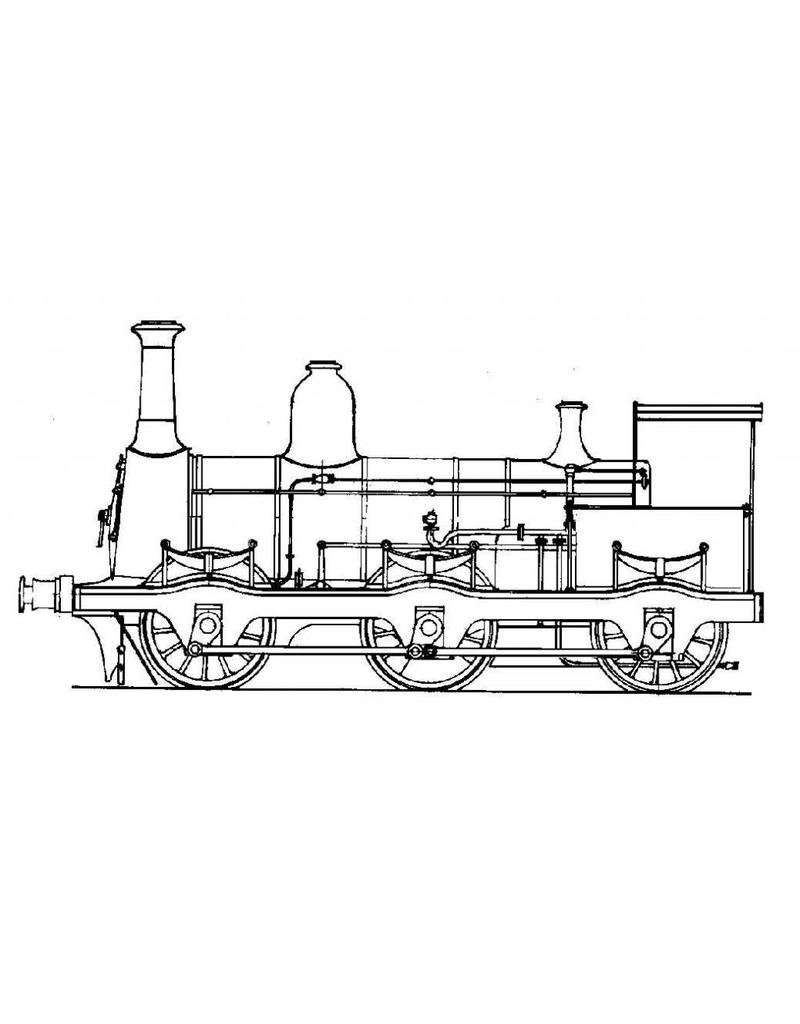

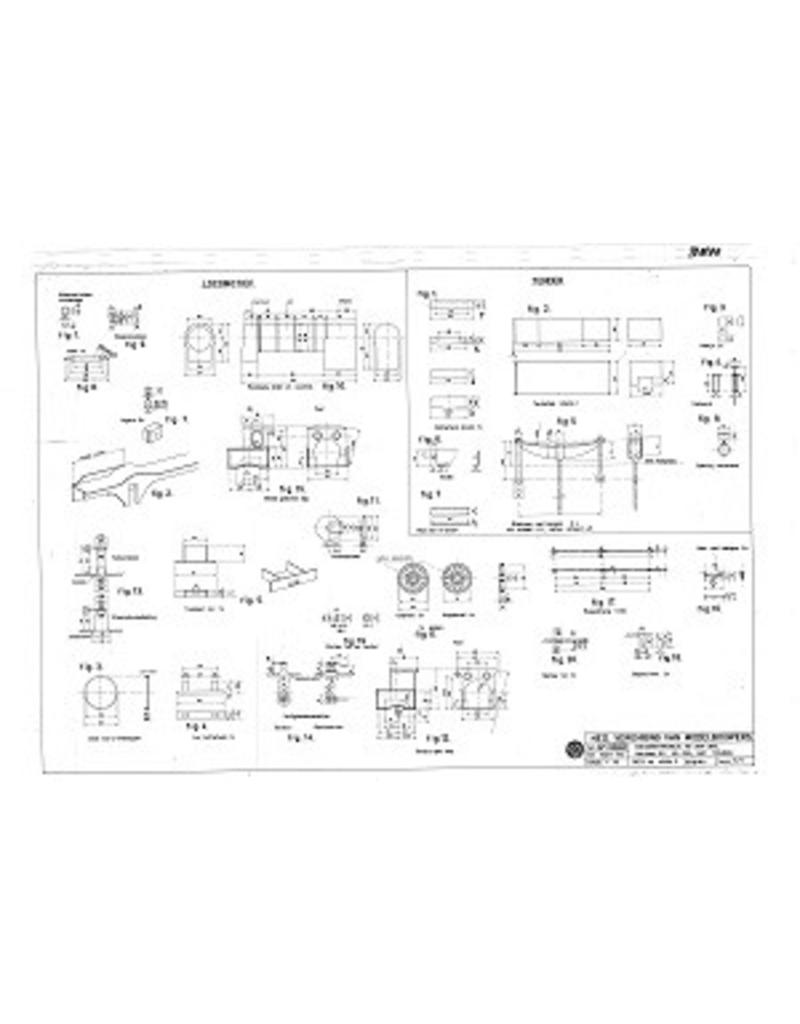

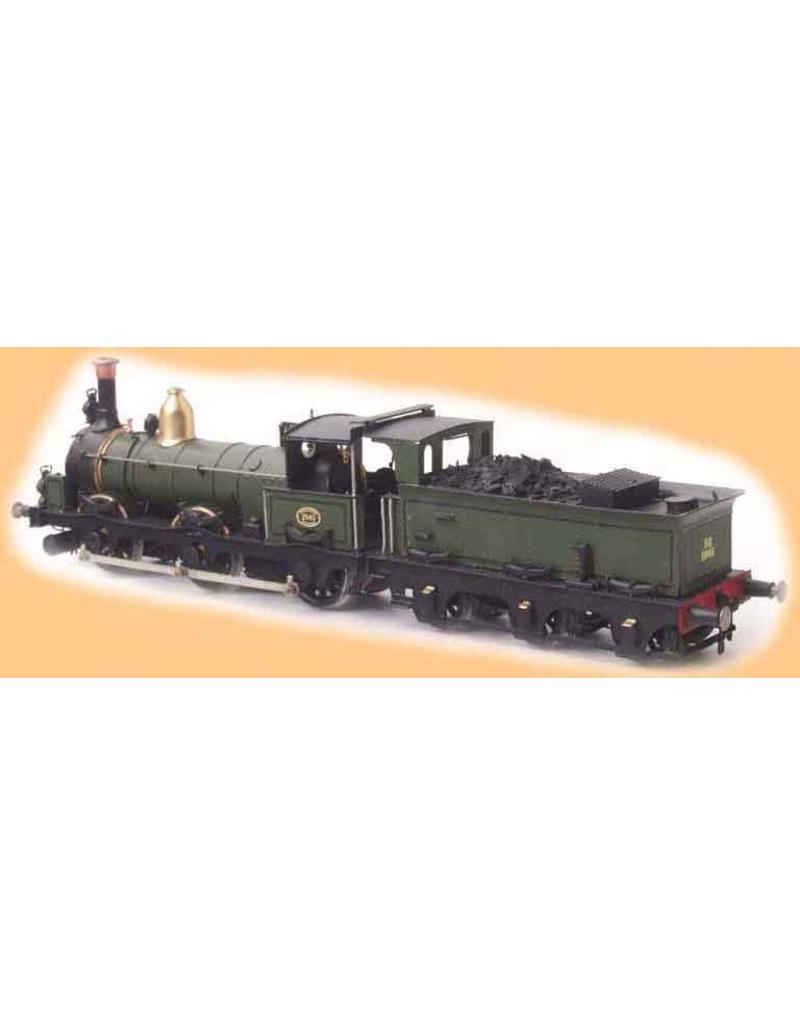

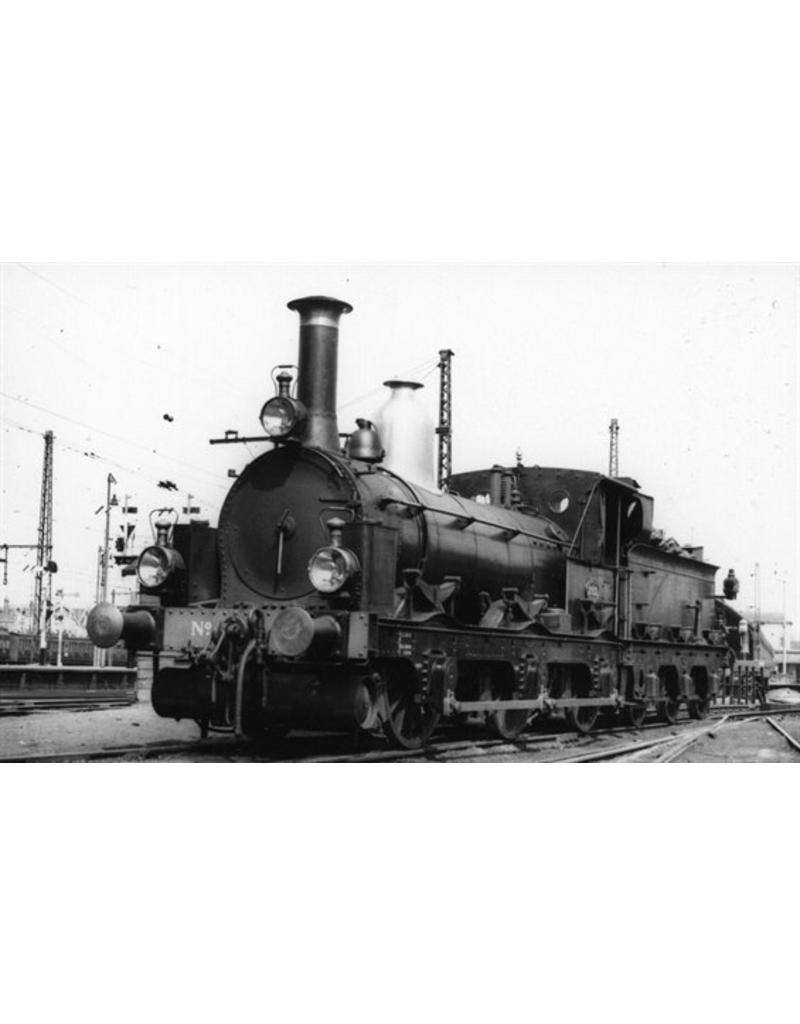

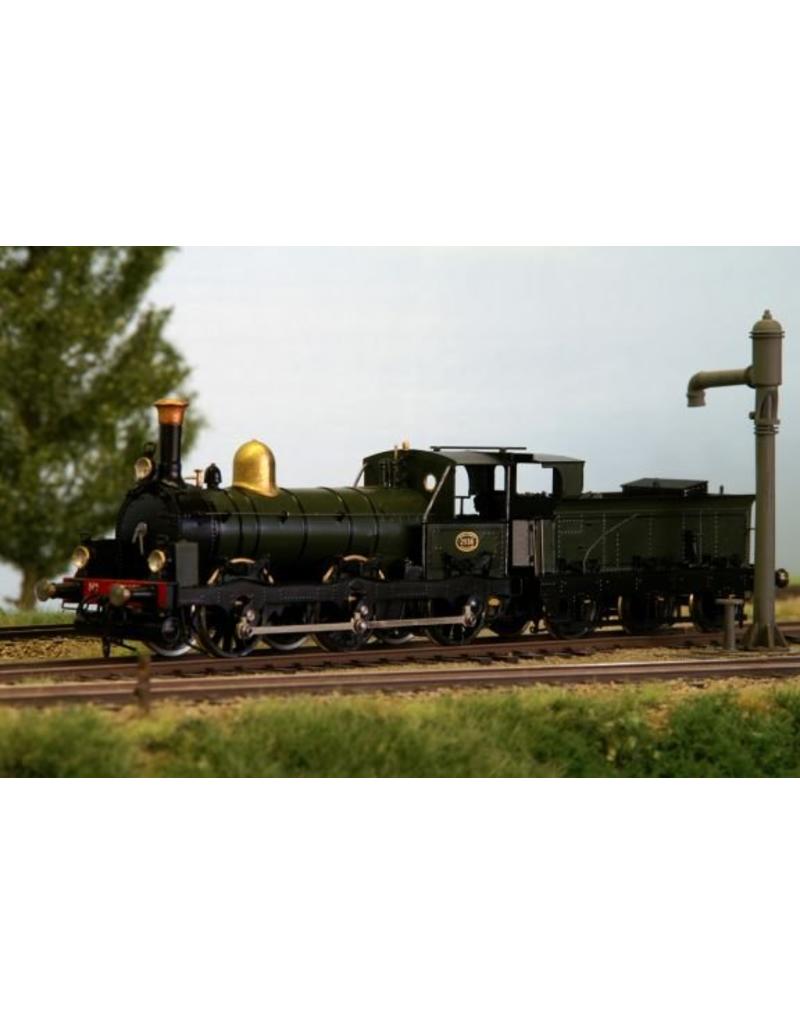

MBT 20.00.011 freight locomotive NS 2900 - ex State Railway for gauge 0

Drawing number

20.00.011

Author

P.J. van Helden

Description

freight locomotive NS 2900 - ex State Railway for gauge 0

Quality

complete construction drawing with limited details; all parts dimensioned

Difficulty level

C

Scale

1 : 45

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

1

Number of A2 sheets

0

Number of A3 sheets

2

Number of A4 sheets

0

Total number of drawing sheets

3

Number of A4 text sheets

0

Weight in grams

85

Special features

dM 1965/8,9, 1966/1,2

Article copy: 22.00.011 (5 pages)

The electric drive is not drawn

Remarks
