| Article number: | 20.00.009 |
Specifications :
|
Drawing number |
20.00.009 |
|
Author |
G.J.Ì´Ì_Hendriks |
|
Description |

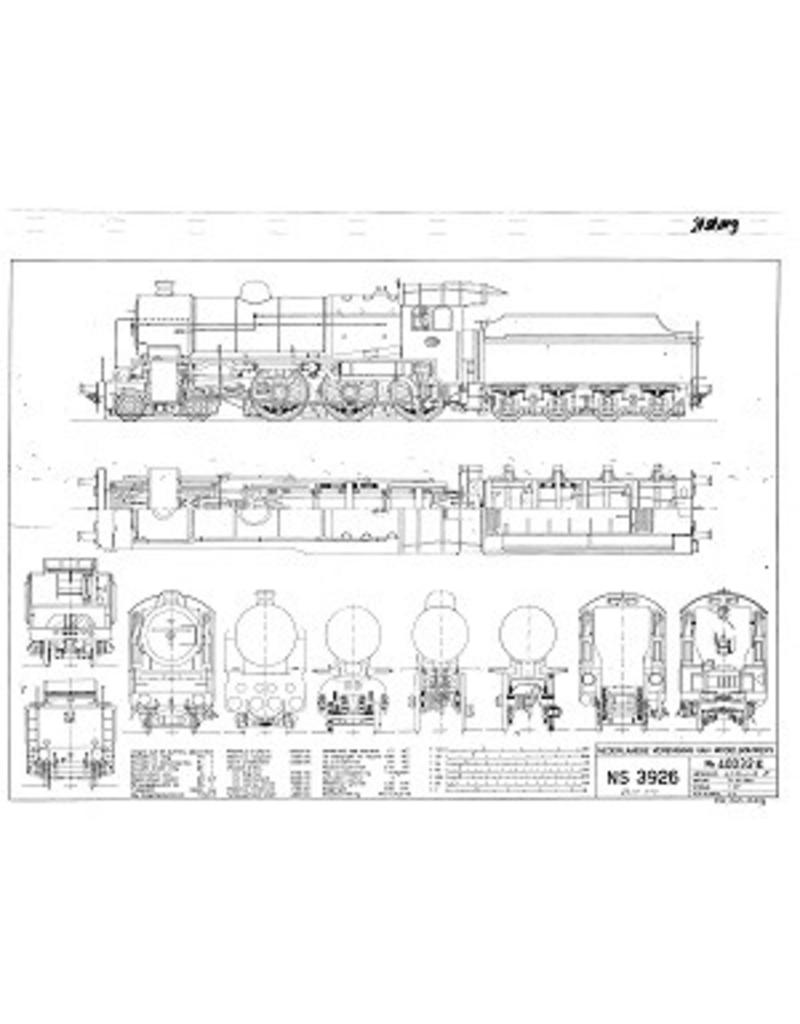

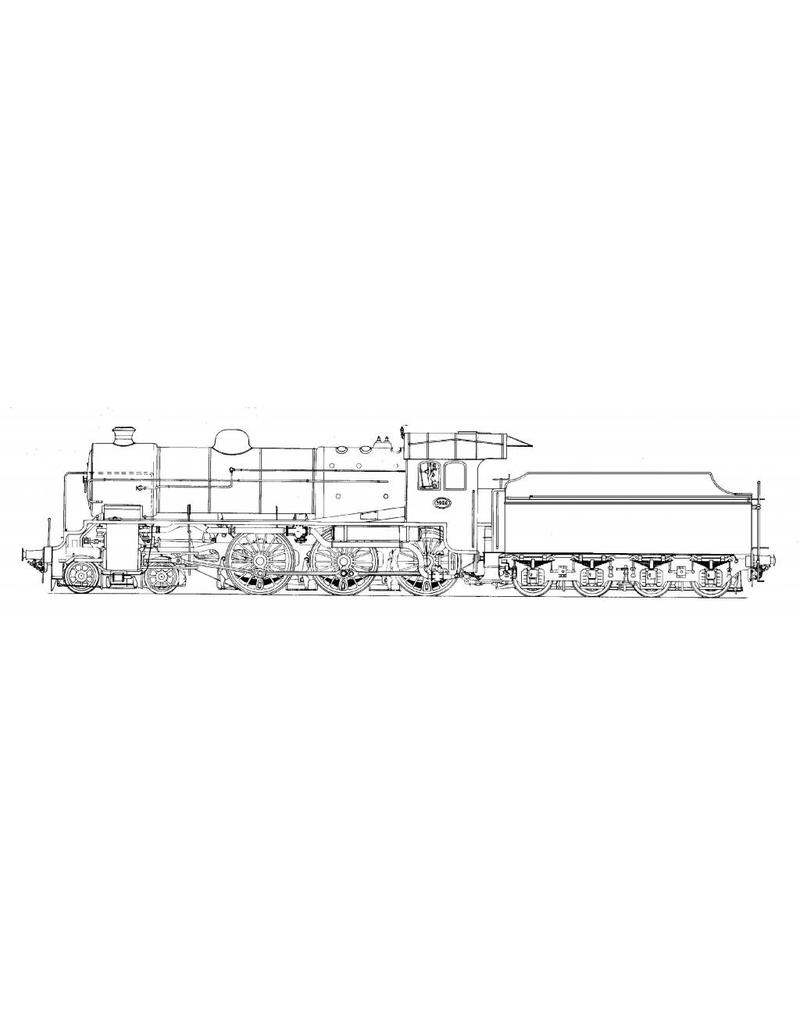

express train locomotive NS 3900 for H0 gauge |
|
Quality |

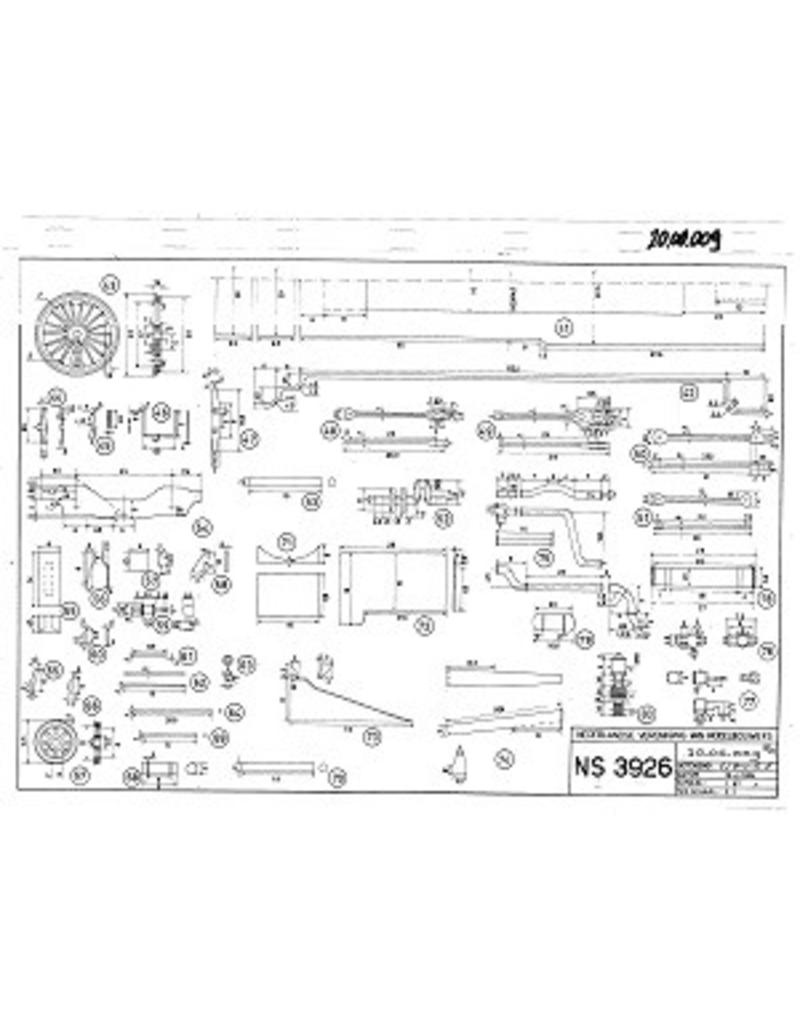

complete construction drawing with a fair amount of details; all parts dimensioned; general plan (2:1) not dimensioned |
|
Difficulty level |
C |
|
Scale |
1 : 87 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
1 |
|
Number of A3 sheets |
4 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Details |
dM 1964/9,11,12 |
|
Remarks |
Ì´Ì_ |
