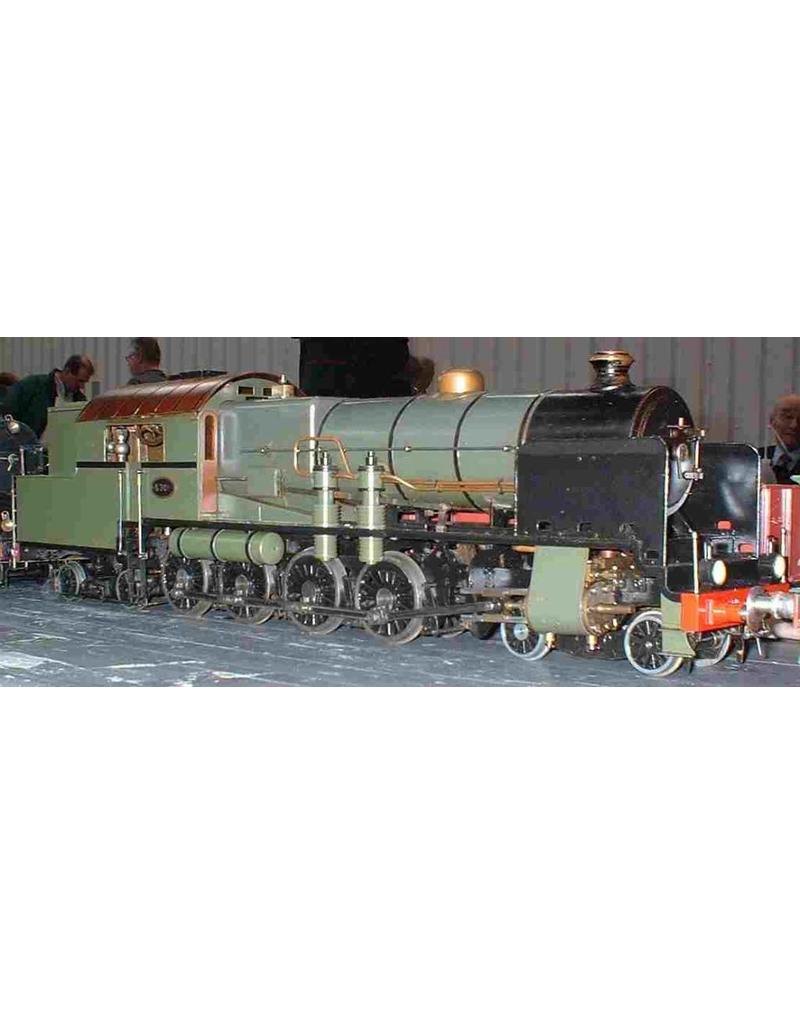

MBT 20.00.008 tank locomotive NS 6300 - ("Executioner") for gauge 0

Drawing number

20.00.008

Author

A. Donker

Description

tank locomotive NS 6300 - ("Executioner") for gauge 0

Quality

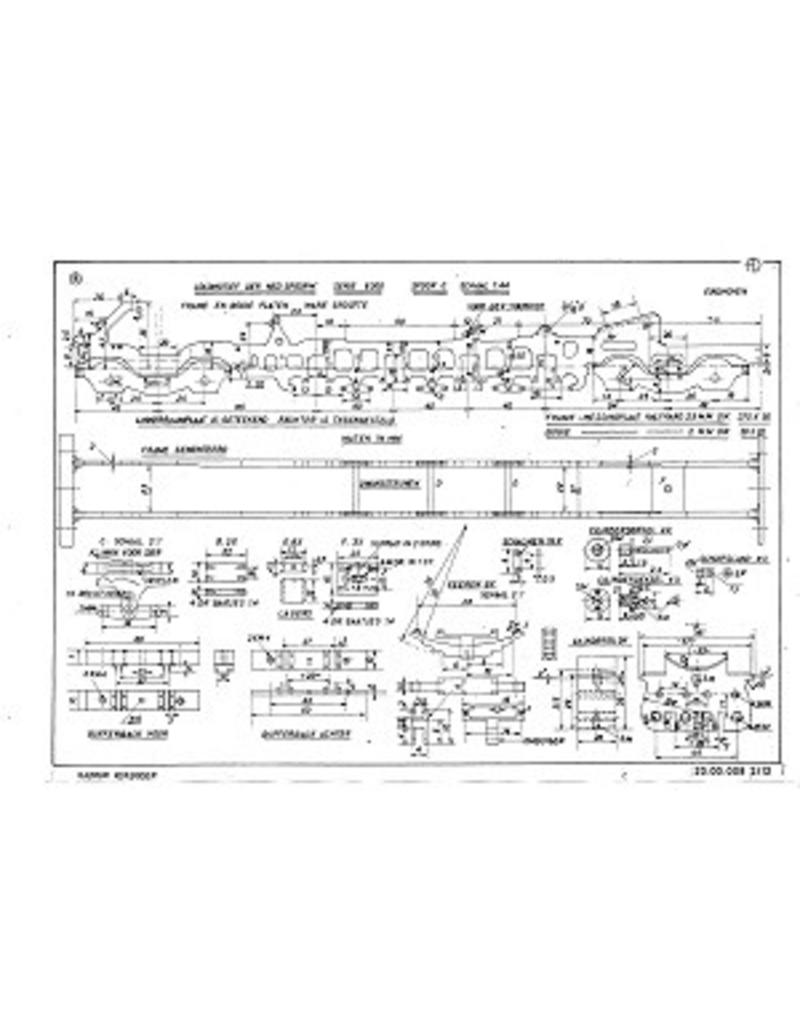

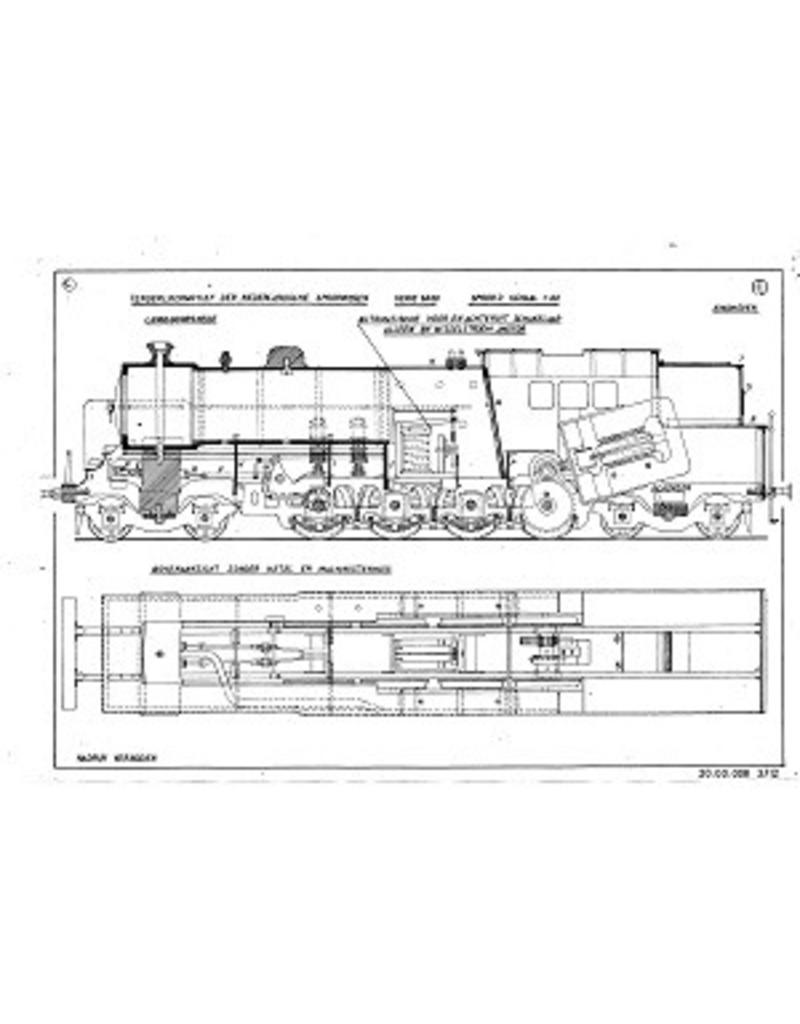

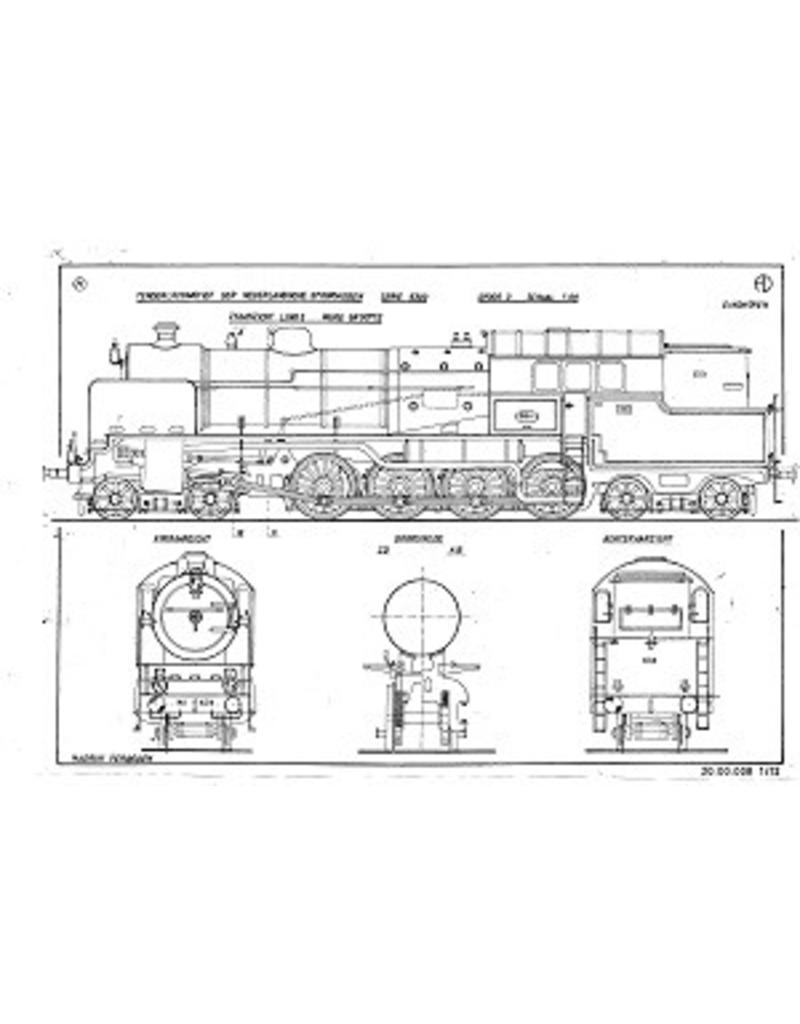

complete construction drawing, very detailed; all parts dimensioned

Difficulty level

D

Scale

1 : 44

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

0

Number of A3 sheets

12

Number of A4 sheets

0

Total number of drawing sheets

12

Number of A4 text sheets

0

Weight in grams

145

Special features

dM 1968/8, 1971/1,2,4,5,8,10, 1972/3,4

Article copy: 22.00.00 (18 pages)

The drawn electric drive is outdated and must be adapted by the builder at their own discretion.

A steam-powered version of this model was described in the 1972 volume

Remarks
