MBT 20.00.002 shunting locomotive NS 8700 for H0 gauge

Drawing number

20.00.002

Author

Gerhard

Description

shunting locomotive NS 8700 for H0 gauge

Quality

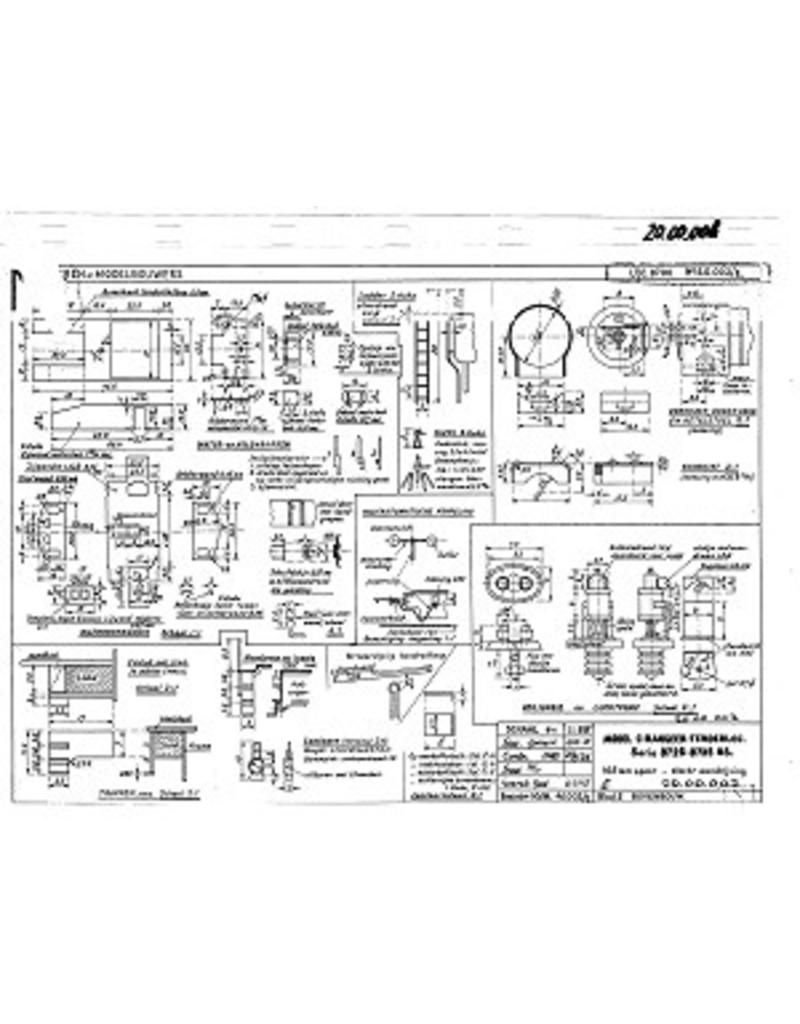

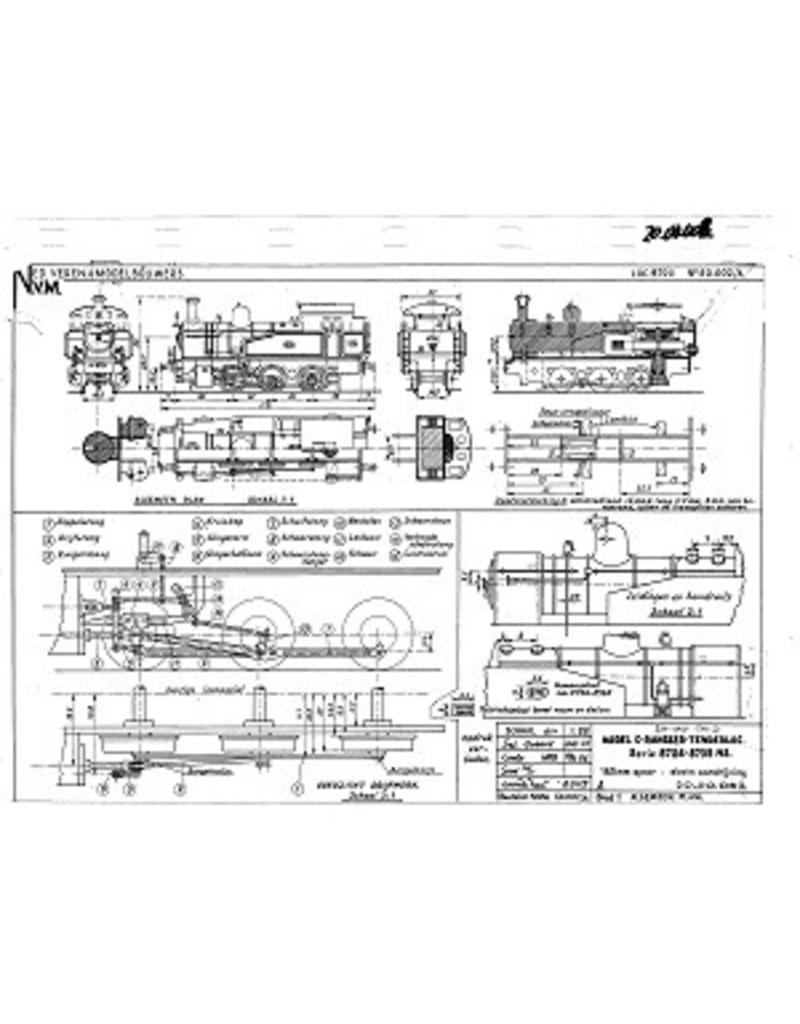

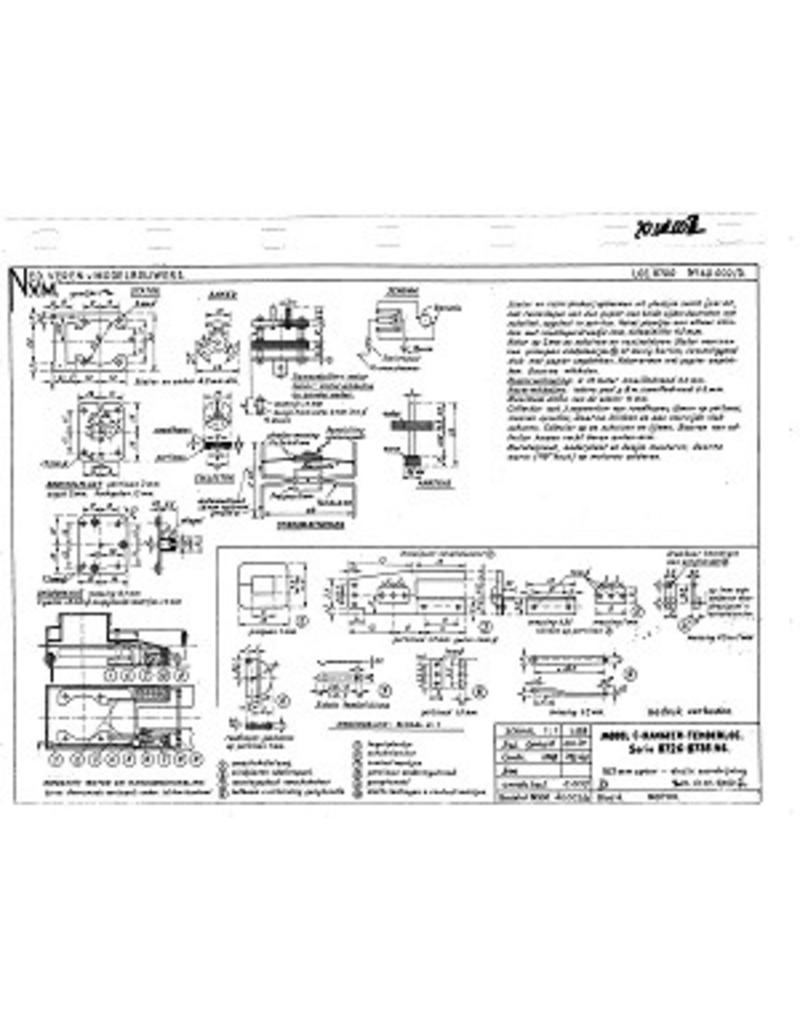

complete construction drawing; all parts dimensioned

Difficulty level

C

Scale

1 : 87

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

0

Number of A3 sheets

6

Number of A4 sheets

0

Total number of drawing sheets

6

Number of A4 text sheets

0

Weight in grams

85

Details

dM 1946/4,5,6,19 47/1-8

Article copy: 22.00.002 (16 pages)

the drawn electrical drive is outdated and must be adapted by the builder at their own discretion

Remarks
