| Article number: | 20.00.041 |
Specifications :
|
Drawing number |
20.00.041 |
|
Author |
J. van Roekel |
|
Description |

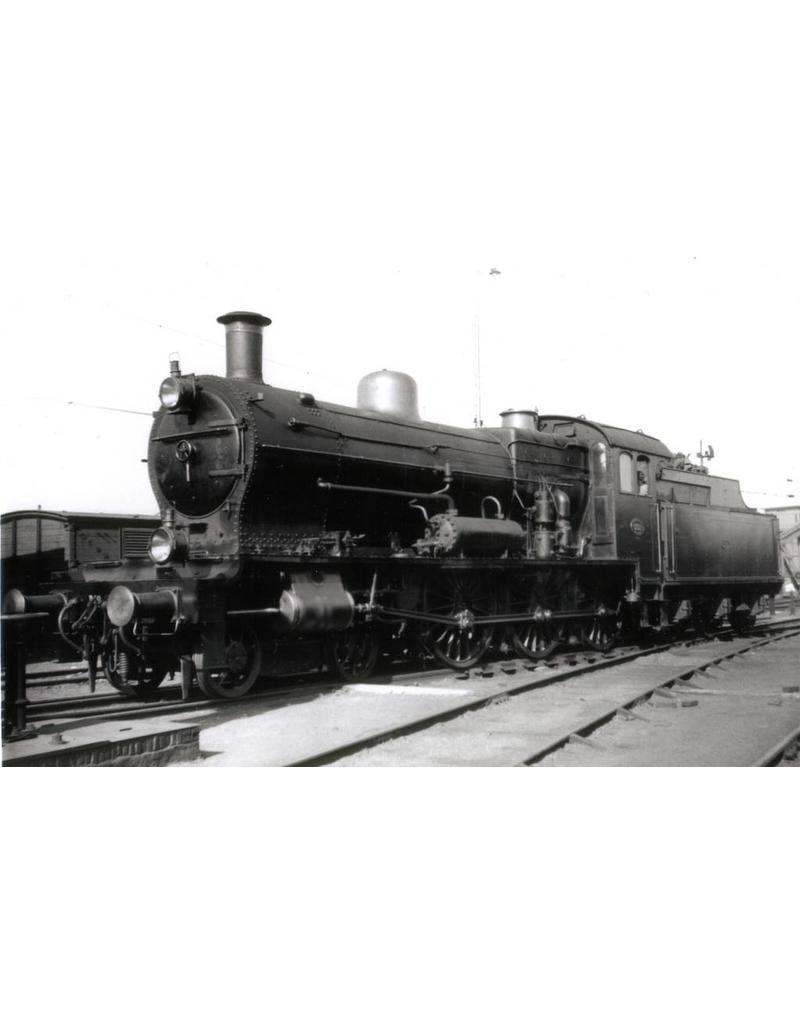

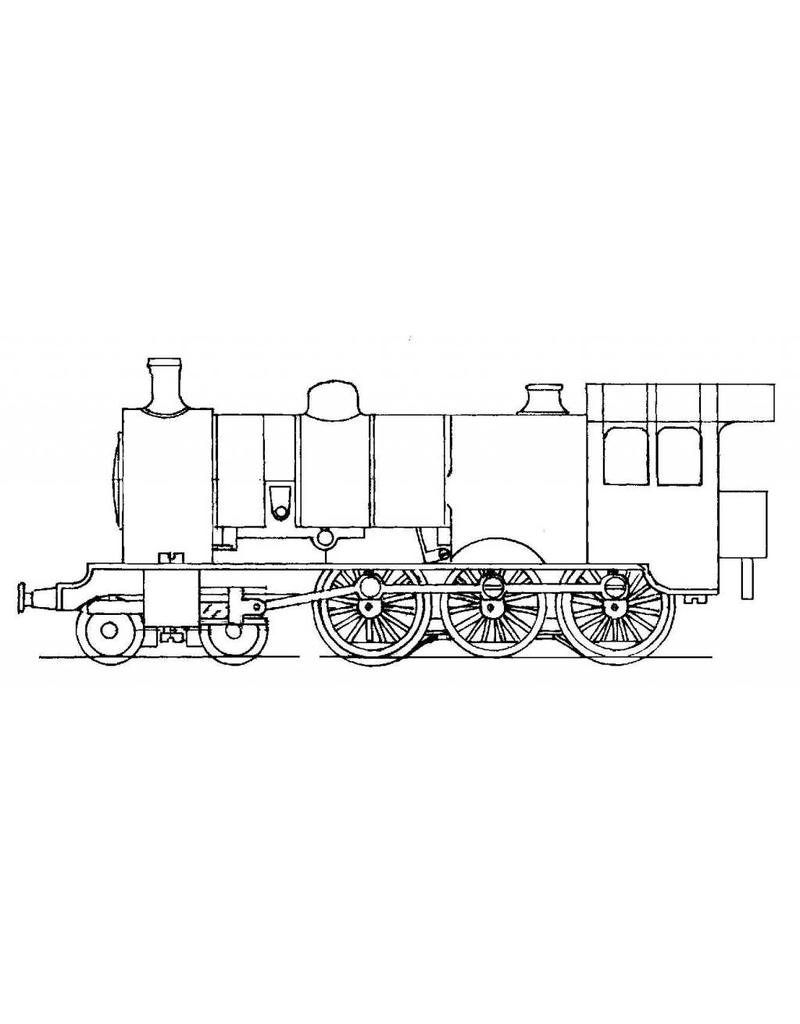

steam locomotive NS 3721- ex SS 721 - "Jumbo" for H0 gauge |
|
Quality |
a somewhat simplified construction drawing with limited details; all parts dimensioned |
|
Difficulty level |
C |
|
Scale |
|
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Special features |
Like 20.00.042 and 20.00.043, based on the original drawings by Labrijn from 1937 for models for the Zwolle marshalling yard model at the 100 years of railway exhibition in 1939. |
|
Remarks |
