MBT 20.02.001 Locomotor NS 200 - ("Sik") for gauge 0

Drawing number

20.02.001

Author

A. Brasser

Description

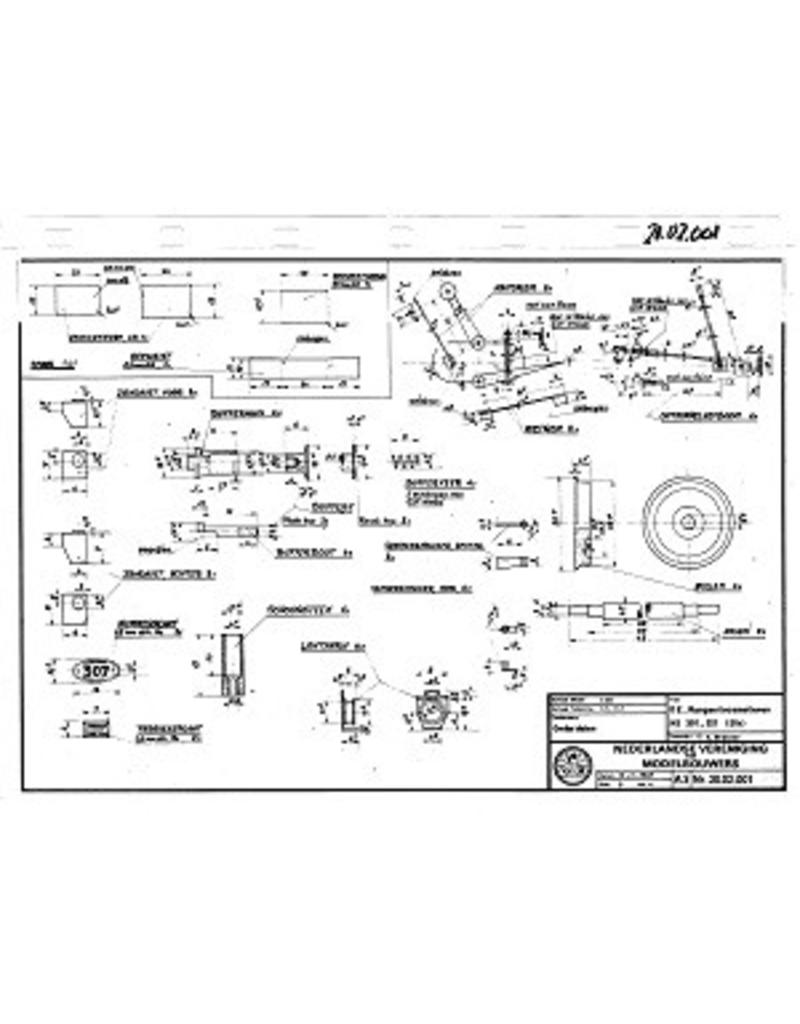

Locomotor NS 200 - ("Sik") for gauge 0

Quality

complete construction drawing; all parts are dimensioned; the general plan shows the dimensions of the prototype

Difficulty level

B

Scale

1 : 45

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

0

Number of A3 sheets

4

Number of A4 sheets

0

Total number of drawing sheets

4

Number of A4 text sheets

0

Weight in grams

65

Special features

dM 1947/9-12, 1948/1, 1969/8-12, 1972/2, 1976/10

Copy of article: 22.02.001 (11 pages)

The mentioned copy description is from the 1947/48 volume, for 1:45, the other articles are for 1:87 models.

The drawn electrical drive is outdated and must be adapted by the builder at their own discretion

Remarks
