| Article number: | 20.02.003 |
Specifications :
|
Drawing number |
20.02.003 |
|
Author |
J. Ekkelenkamp |
|
Description |

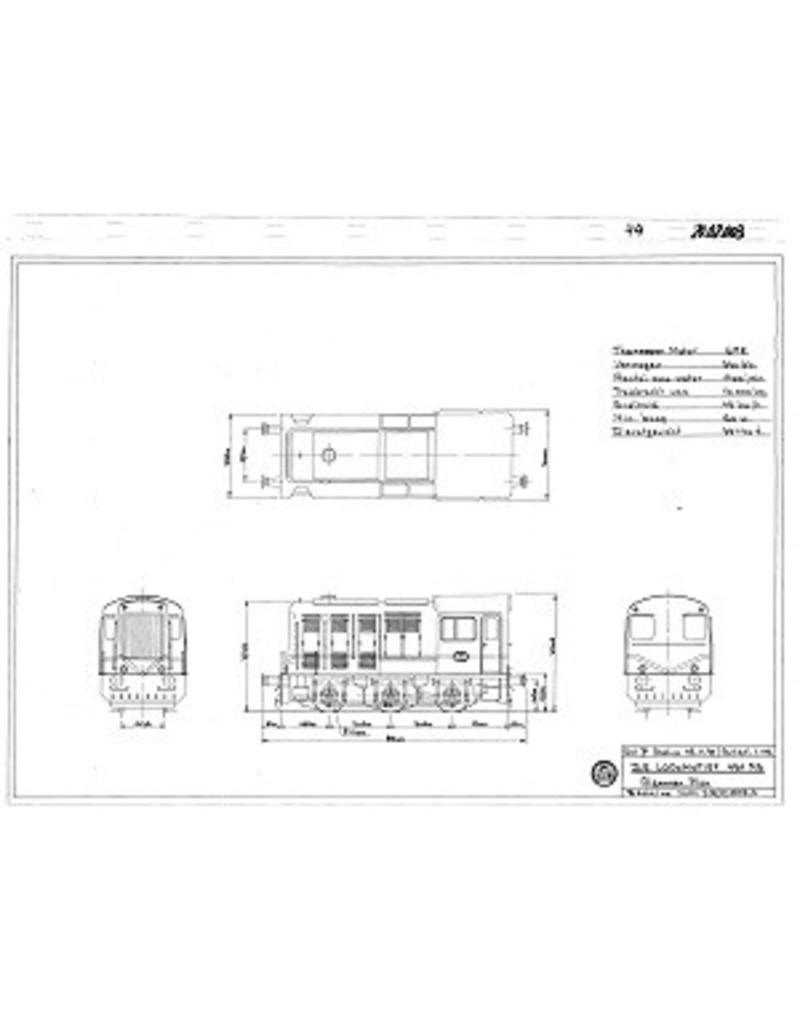

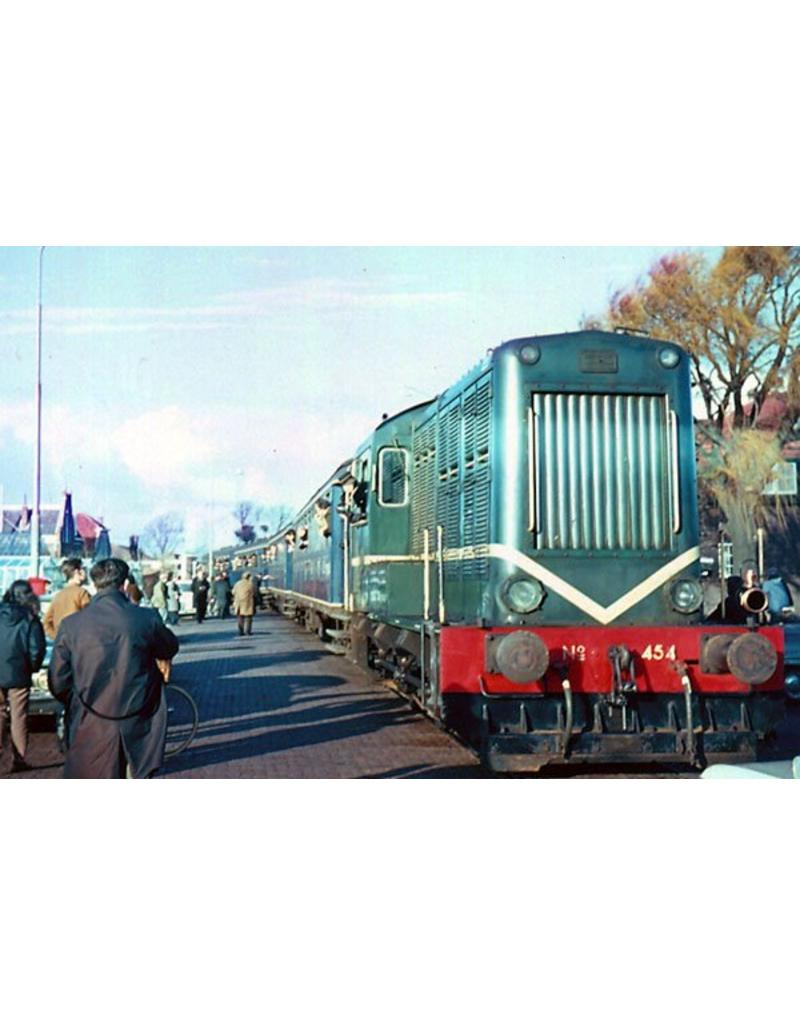

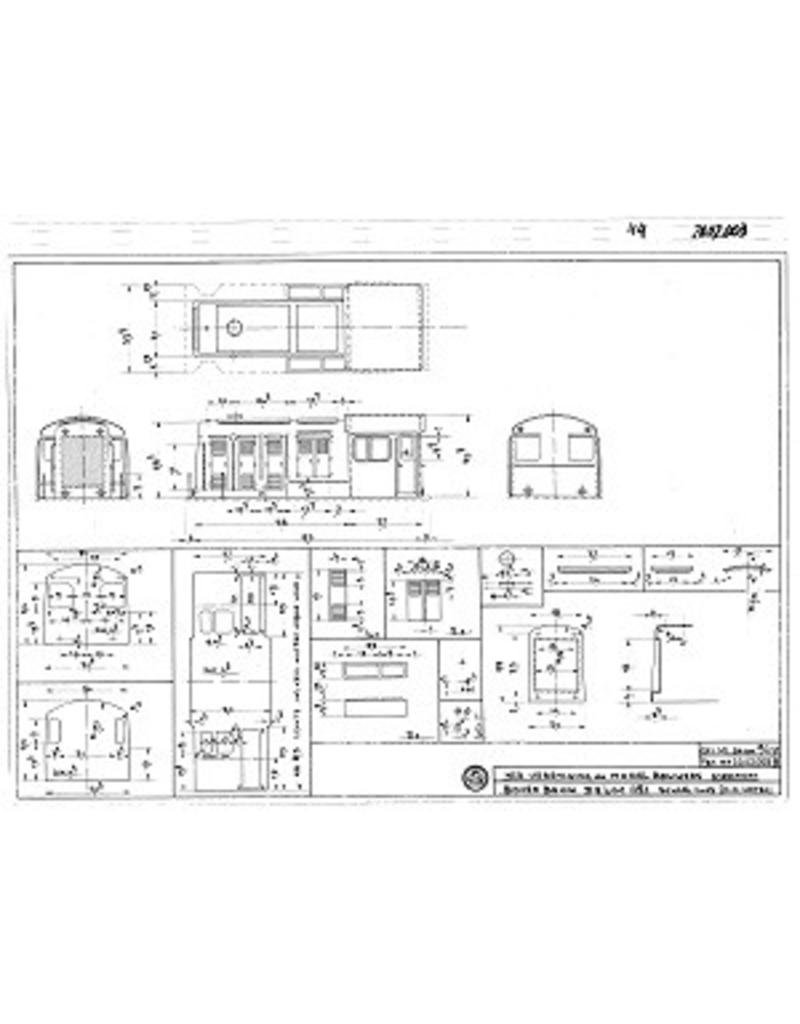

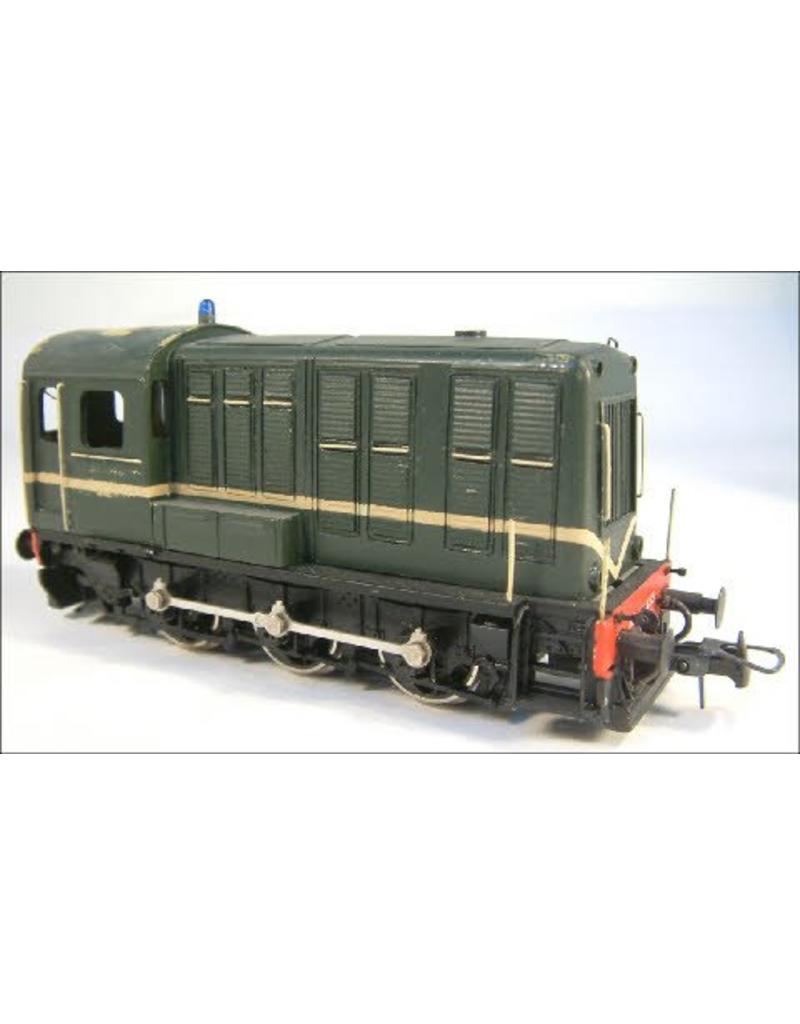

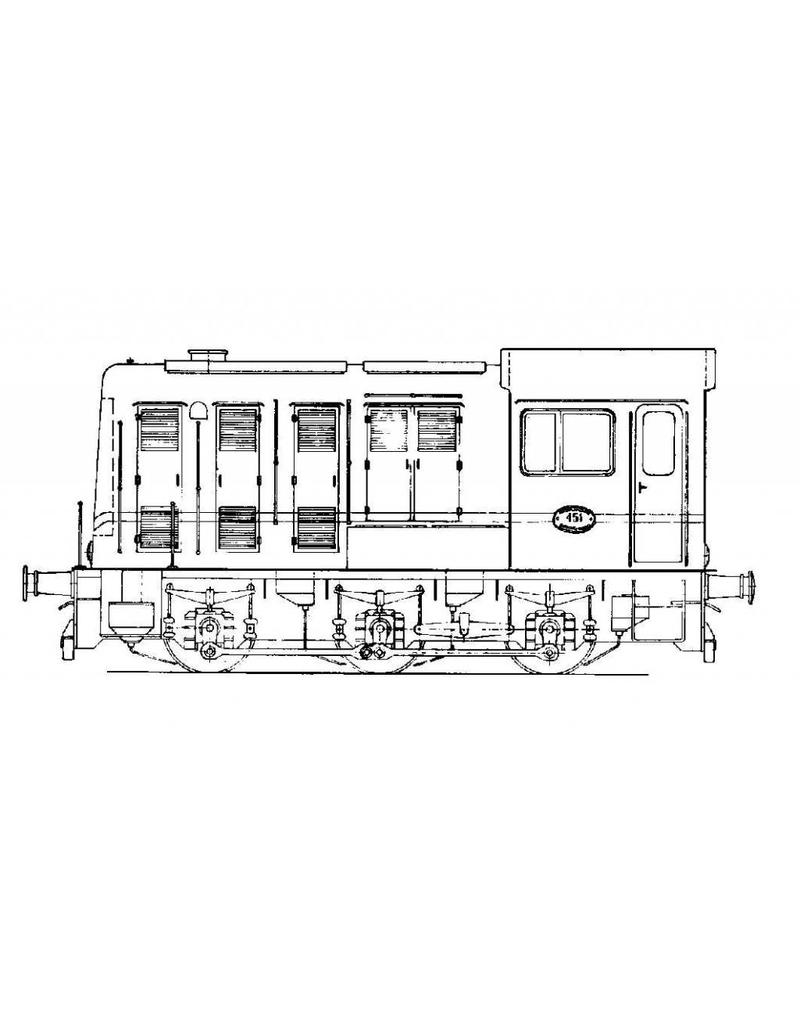

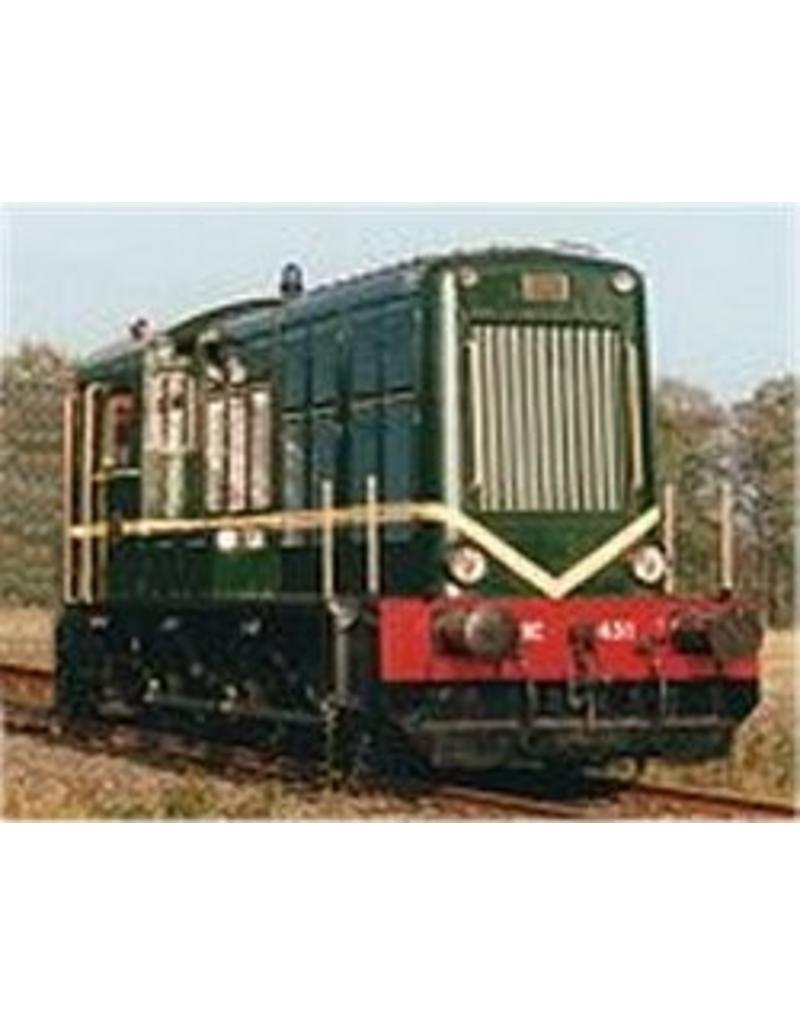

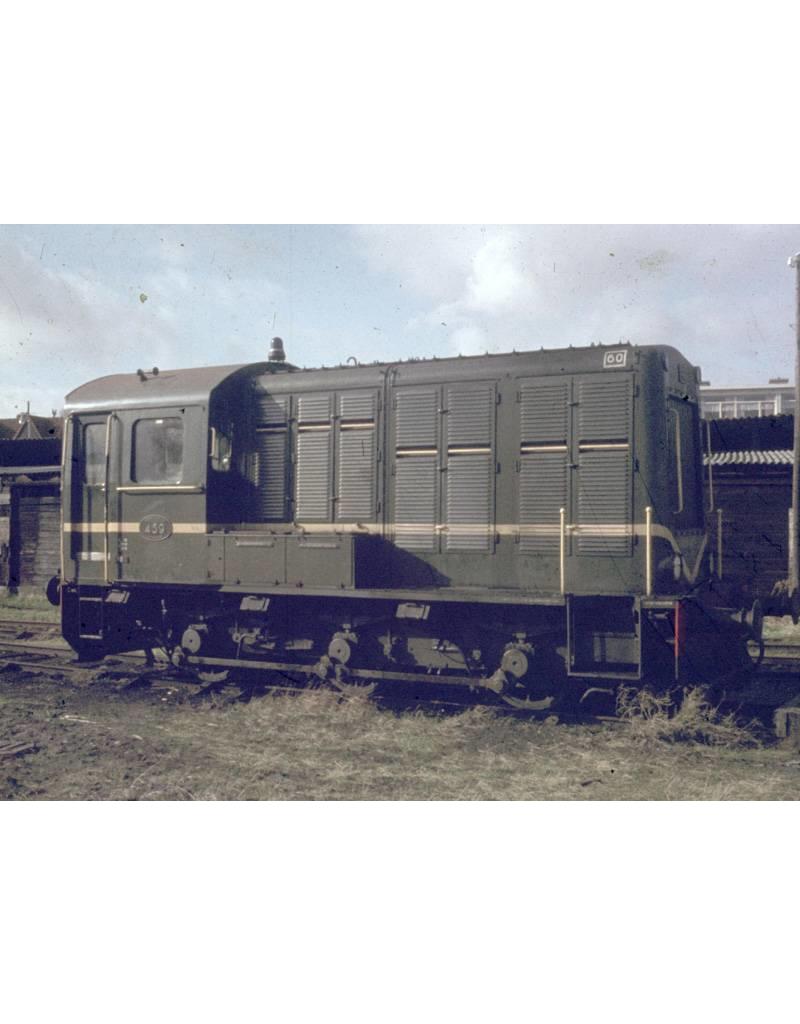

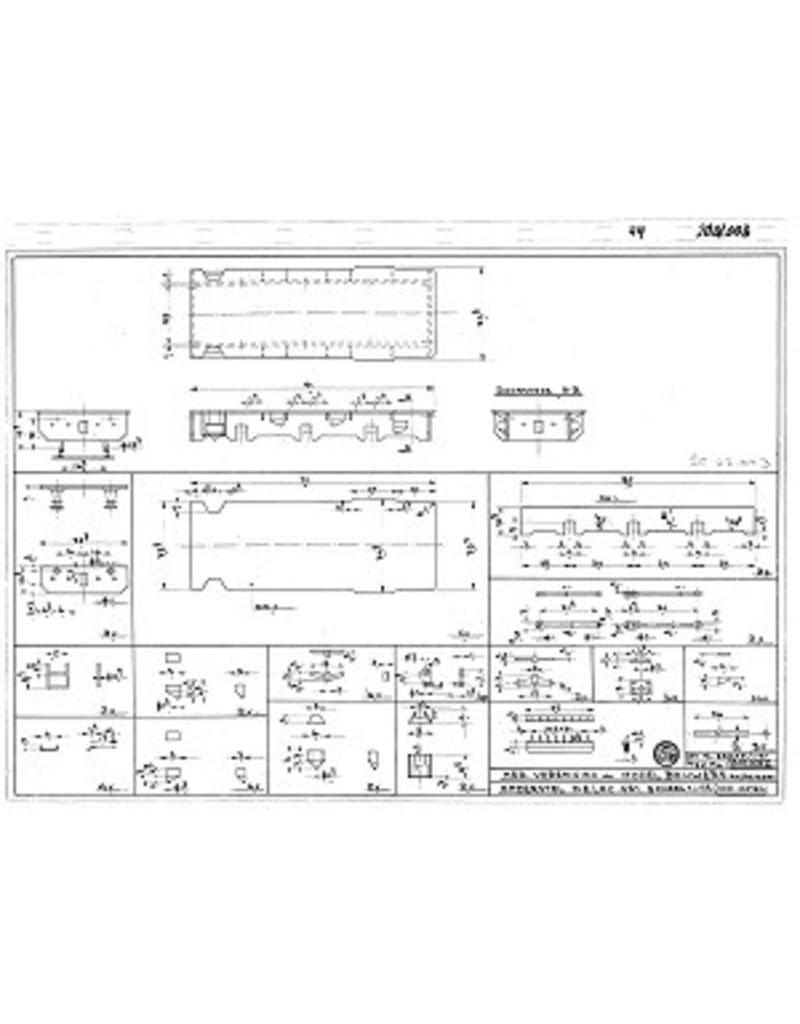

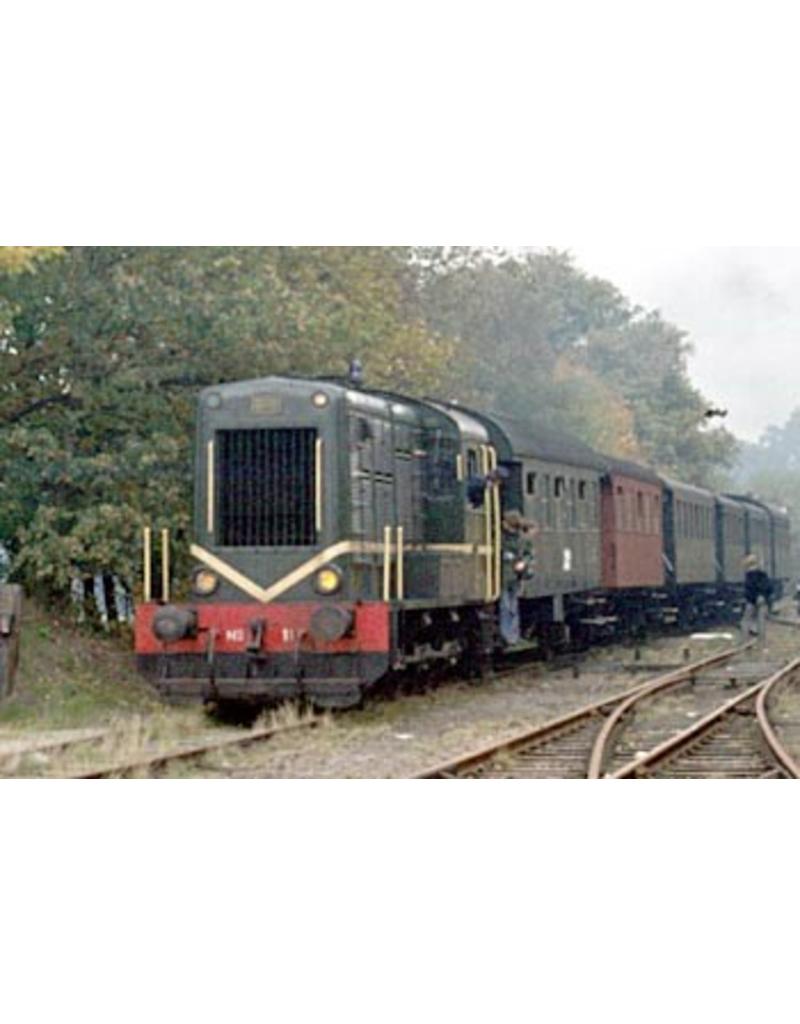

DE locomotive NS 450 - tramway locomotive for gauge 0 |
|
Quality |
complete construction drawing with limited details; parts are dimensioned for H0 gauge; the general plan shows the dimensions of the prototype |
|
Difficulty level |
D |
|
Scale |
1 : 45 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
3 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Special features |
dM 1958/2 |
|
Remarks |
Ì´Ì_ |
