MBT 20.02.002 DE locomotive NS 400 - ("Grote sik") for track II (64 mm)

Drawing number

20.02.002

Author

G.C. Schalk

Description

DE locomotive NS 400 - ("Grote sik") for track II (64 mm)

Quality

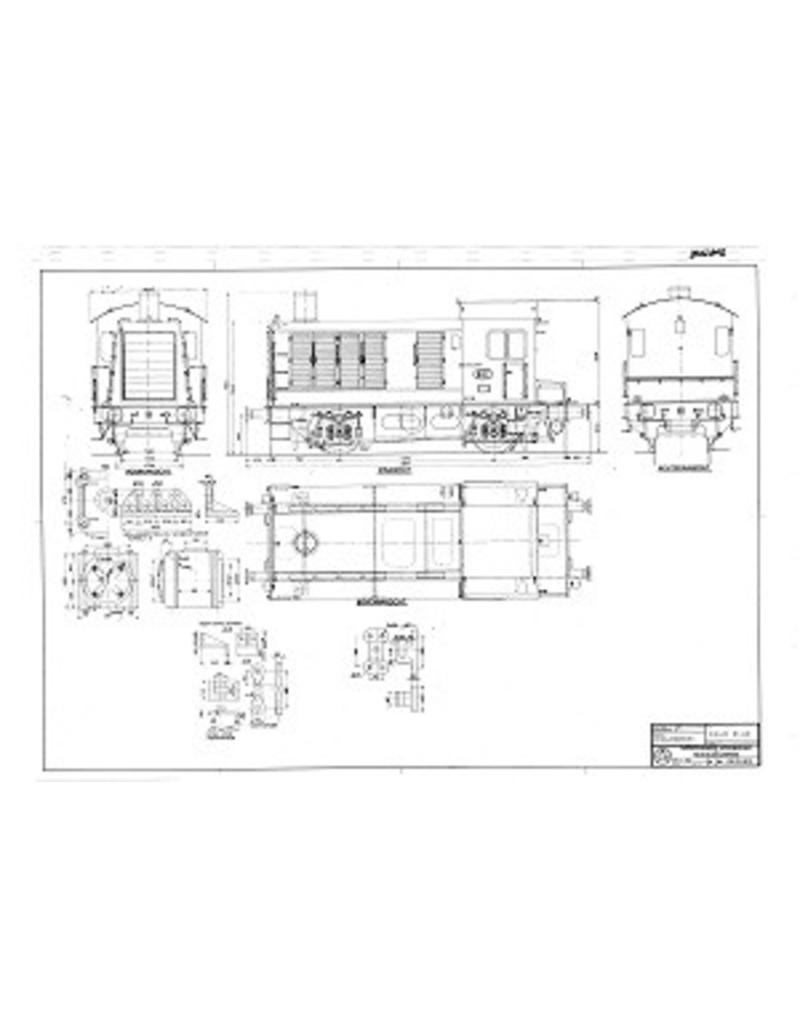

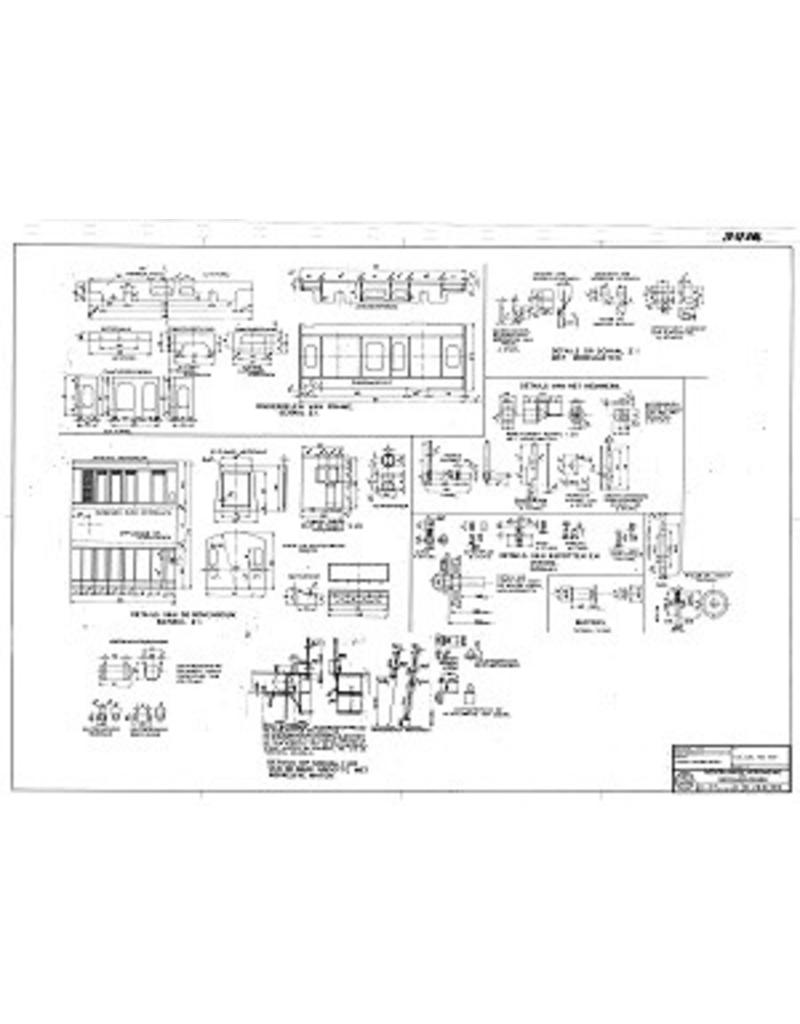

extensive construction drawing with limited details; various parts dimensioned; some details show the dimensions of the prototype, as well as the general plan

Difficulty level

D

Scale

1 : 22.5

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

2

Number of A2 sheets

0

Number of A3 sheets

0

Number of A4 sheets

0

Total number of drawing sheets

2

Number of A4 text sheets

0

Weight in grams

105

Particulars

dM 1949/2

Copy article: 22.02.002 (1 page)

The electrical drive is not drawn

Remarks
