| Article number: | 20.02.010 |
Specifications :
|
Drawing number |
20.02.010 |
|
Author |
J.C.W. Steffers |
|
Description |

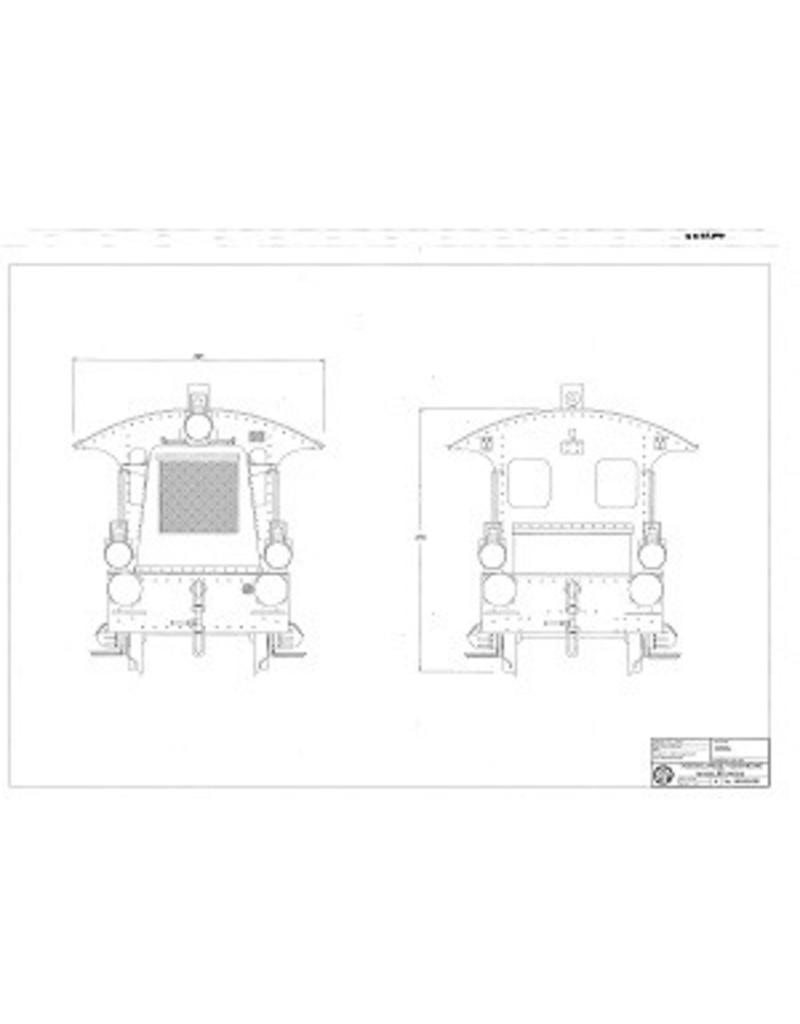

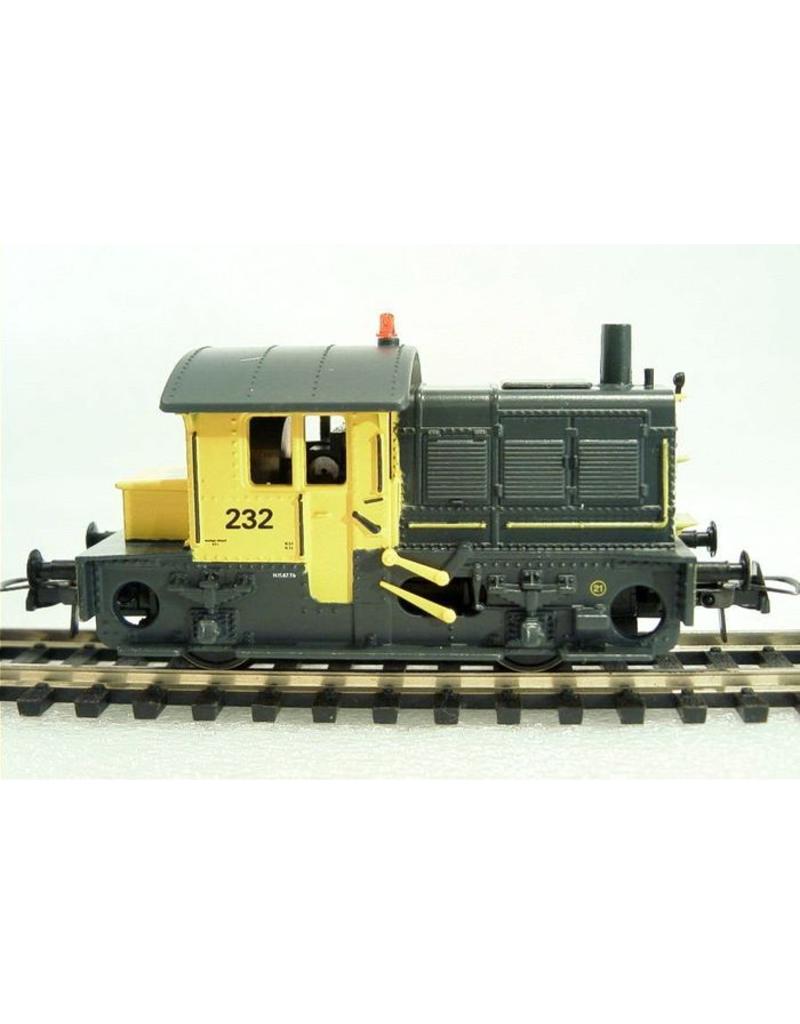

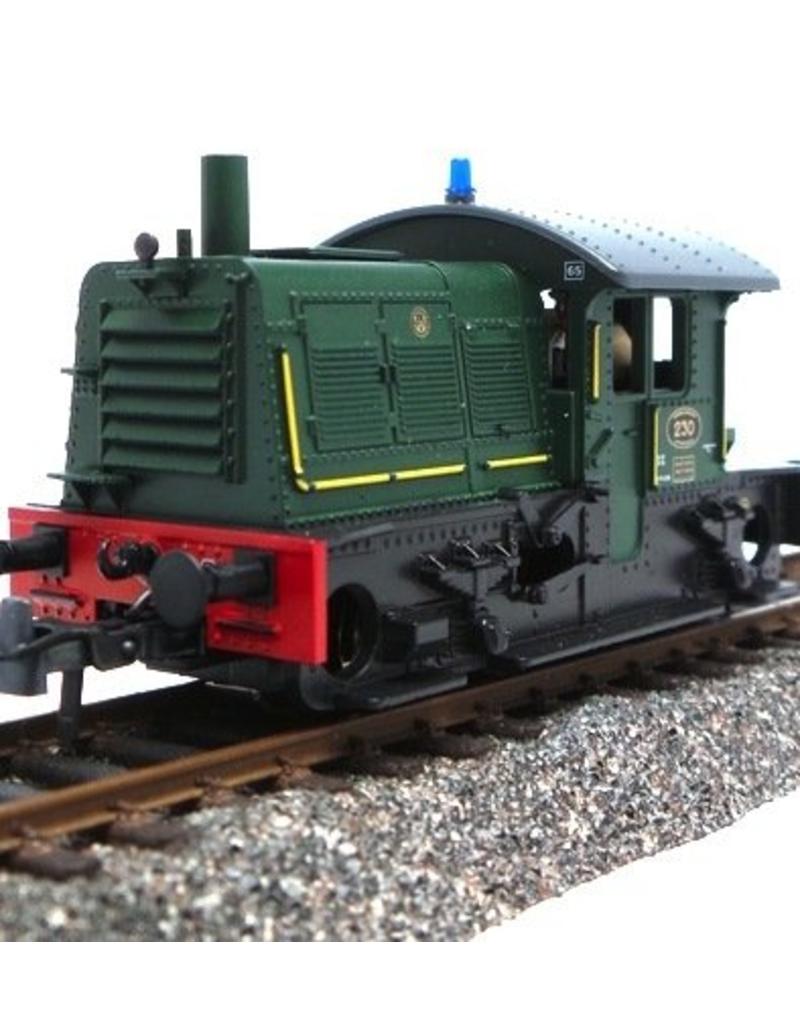

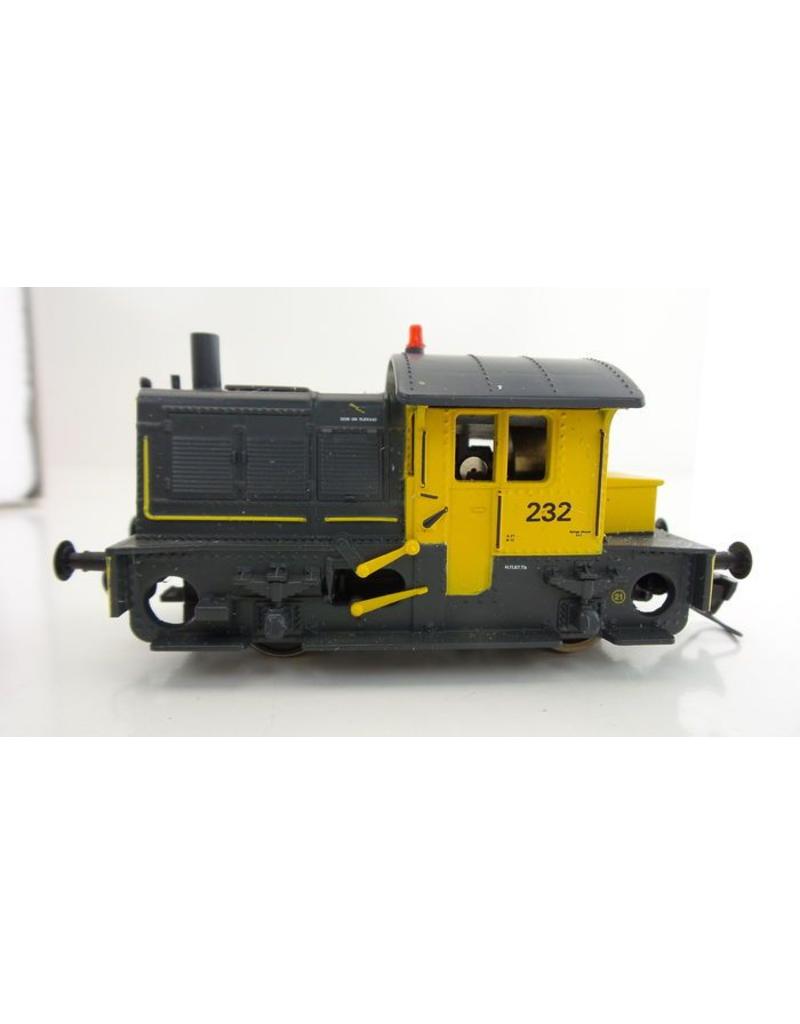

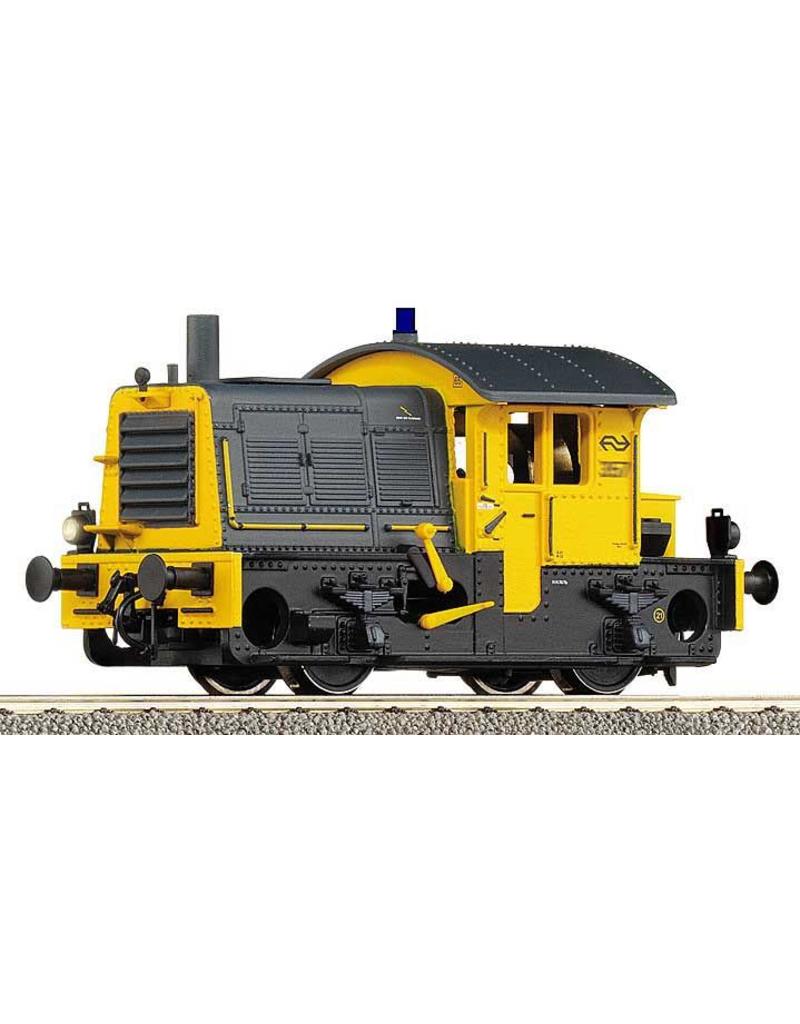

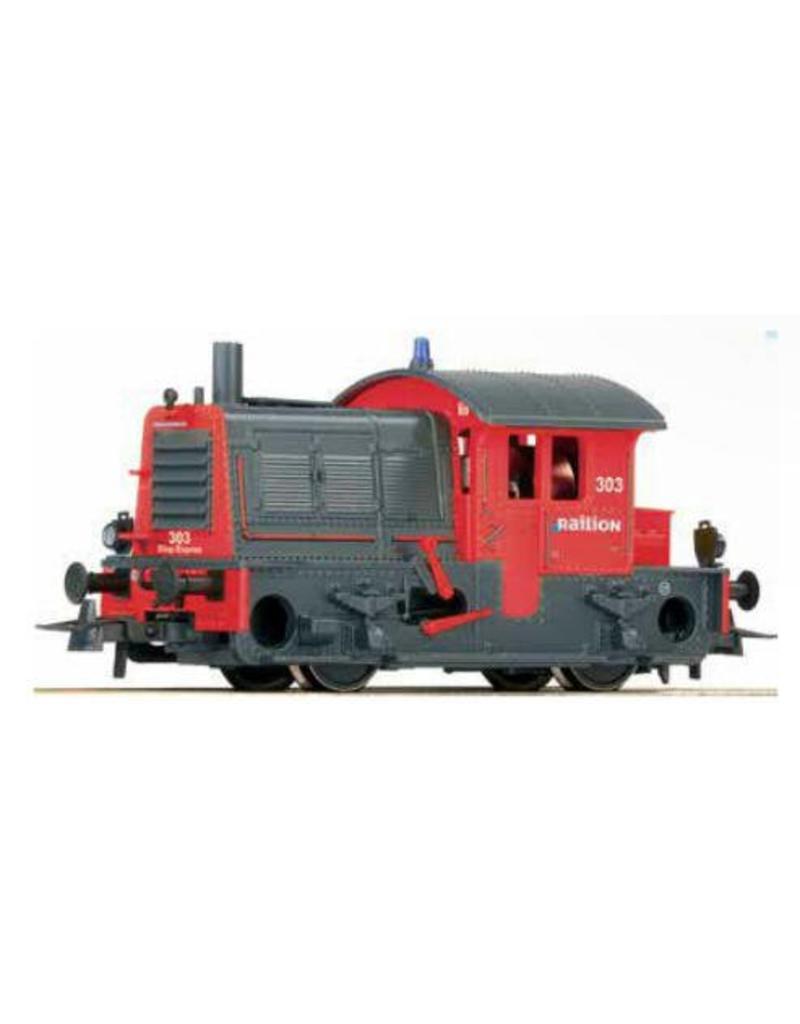

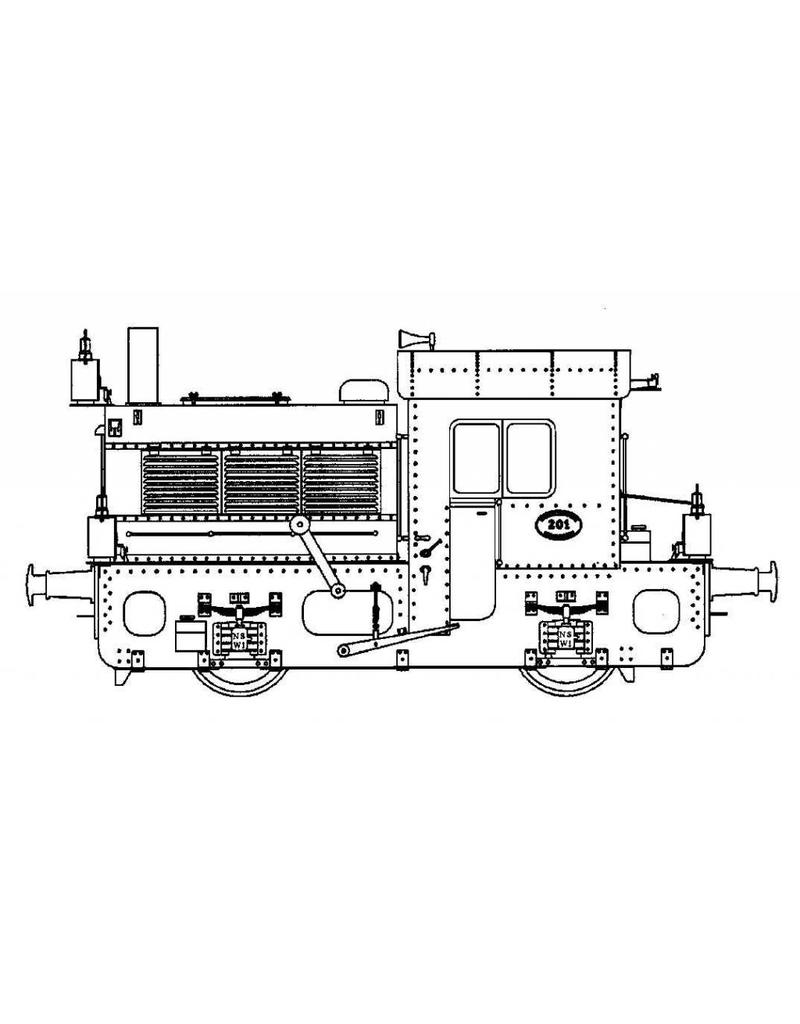

NS shunting locomotive 201-212; "Sik"; for 5"gauge (127 mm) |
|
Quality |
complete construction drawing with many details; all parts are dimensioned |
|
Difficulty level |
D |
|
Scale |
1 : 11,3 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
7 |
|
Number of A2 sheets |
4 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
11 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
385 |
|
Special features |
dM 2008/7, |
|
Remarks |
