| Article number: | 20.07.012 |
Specifications :
|
Drawing number |
20.07.012 |
|
Author |
W.J. Dijkshoorn |
|
Description |

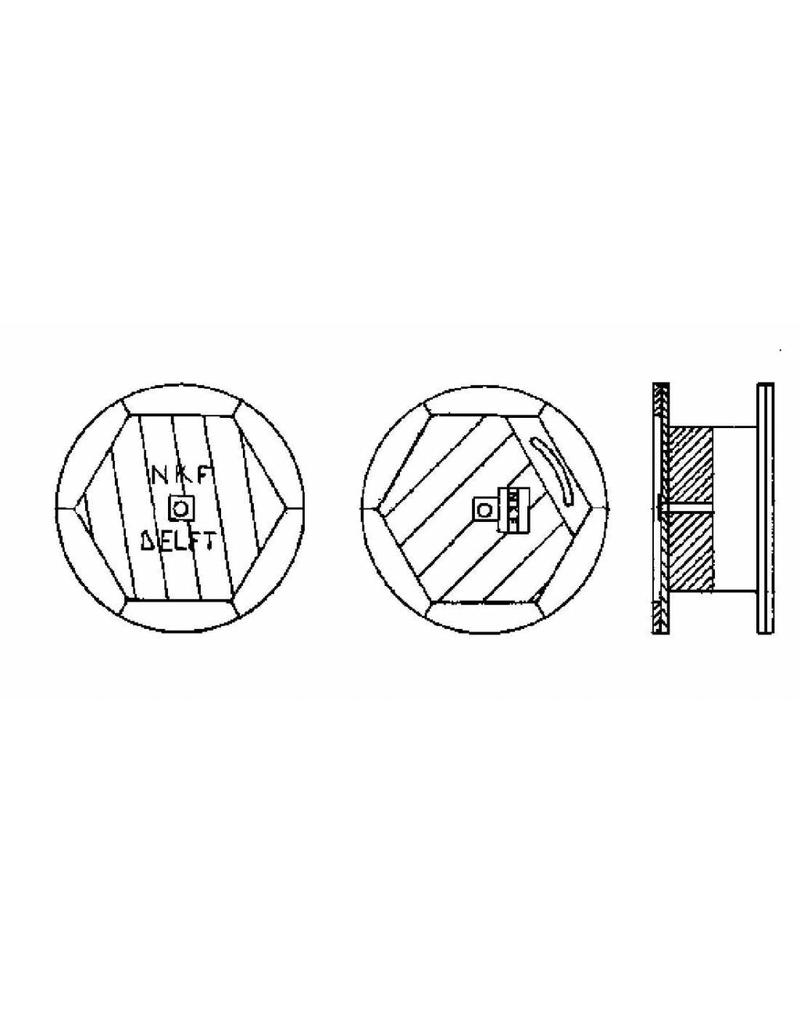

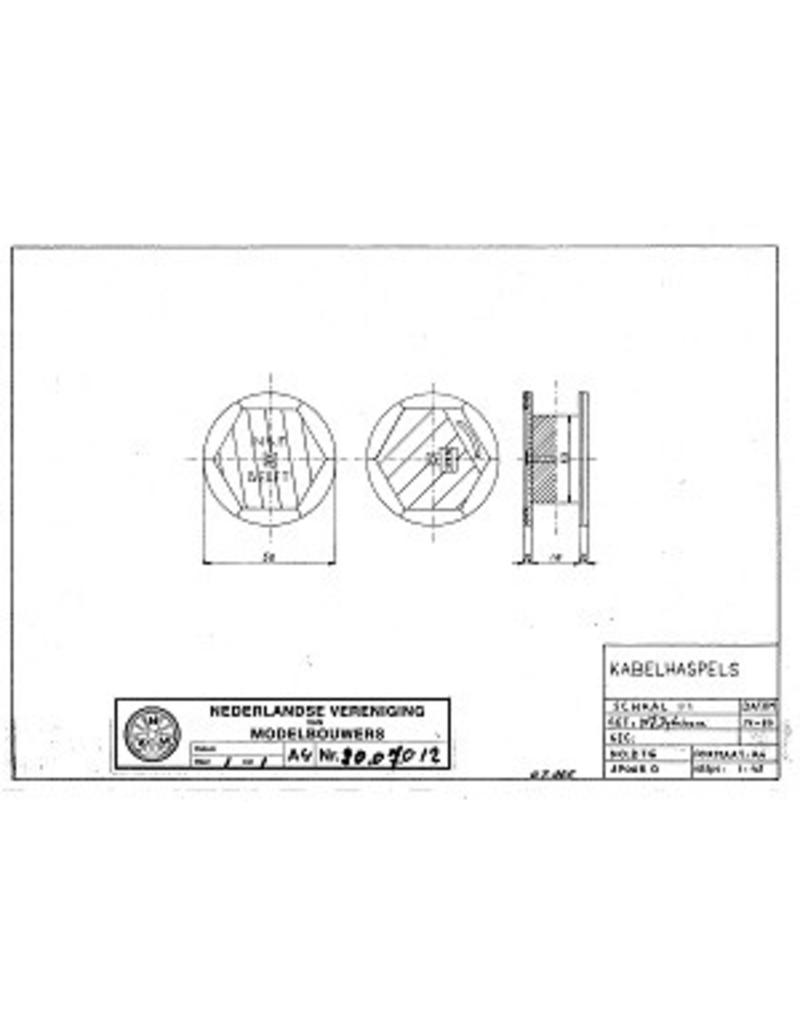

cable reels for gauge 0 |
|
Quality |
dimensioned sketch with model dimensions |
|
Difficulty level |
A |
|
Scale |
1 : 1 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
1 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
30 |
|
Special features |
|
|
Remarks |
