| Article number: | 20.07.015 |
Specifications :
|
Drawing number |
20.07.015 |
|
Author |
J.A.M. de Waal |
|
Description |

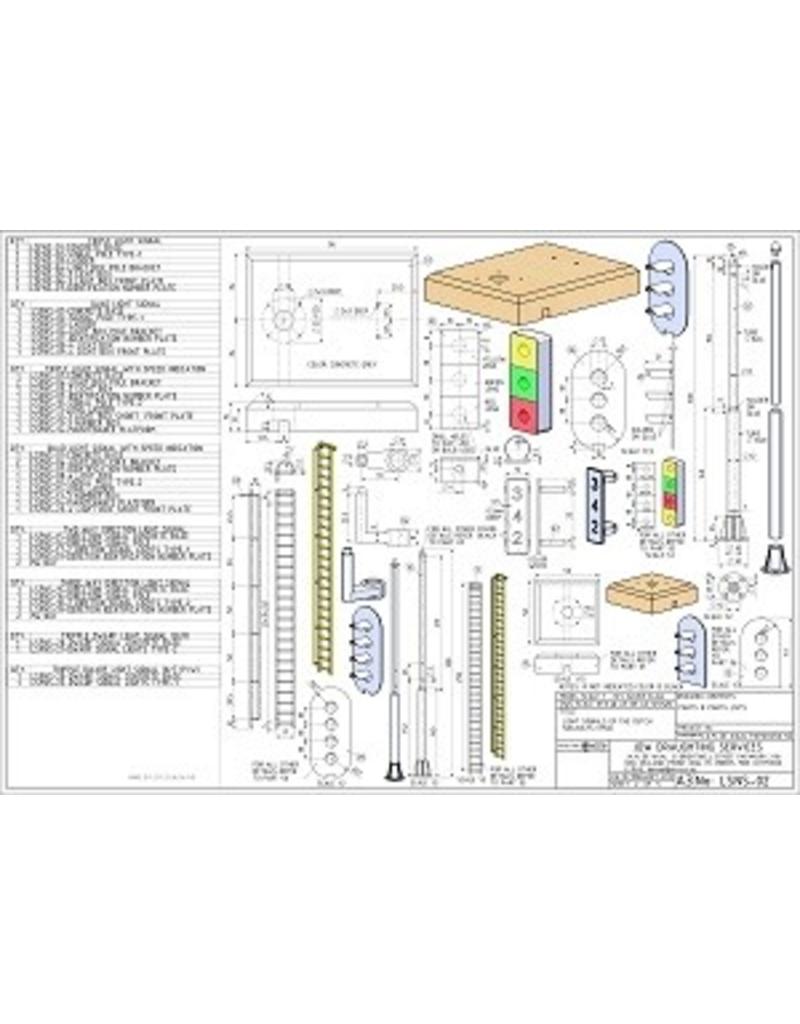

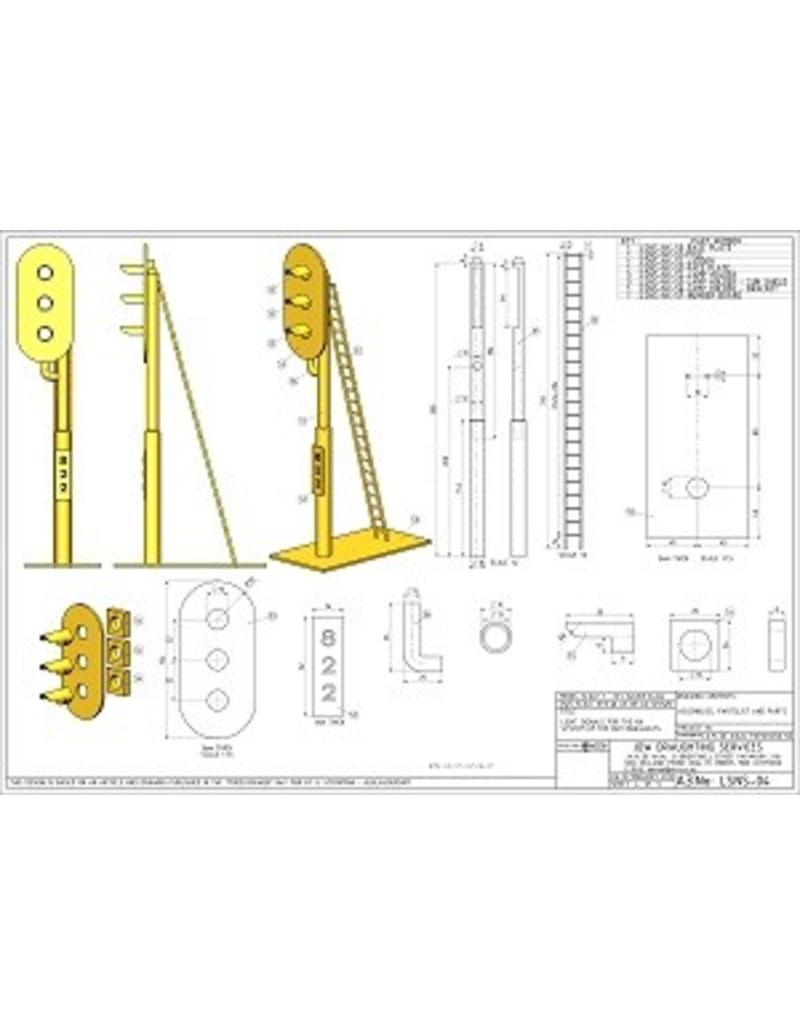

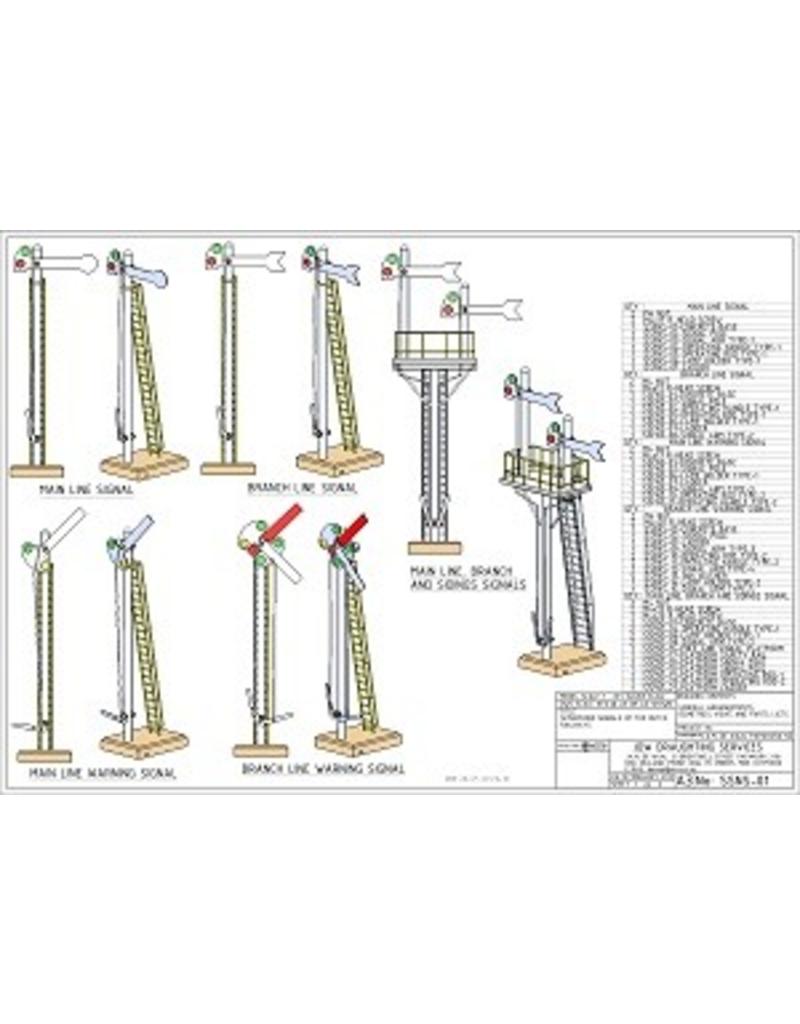

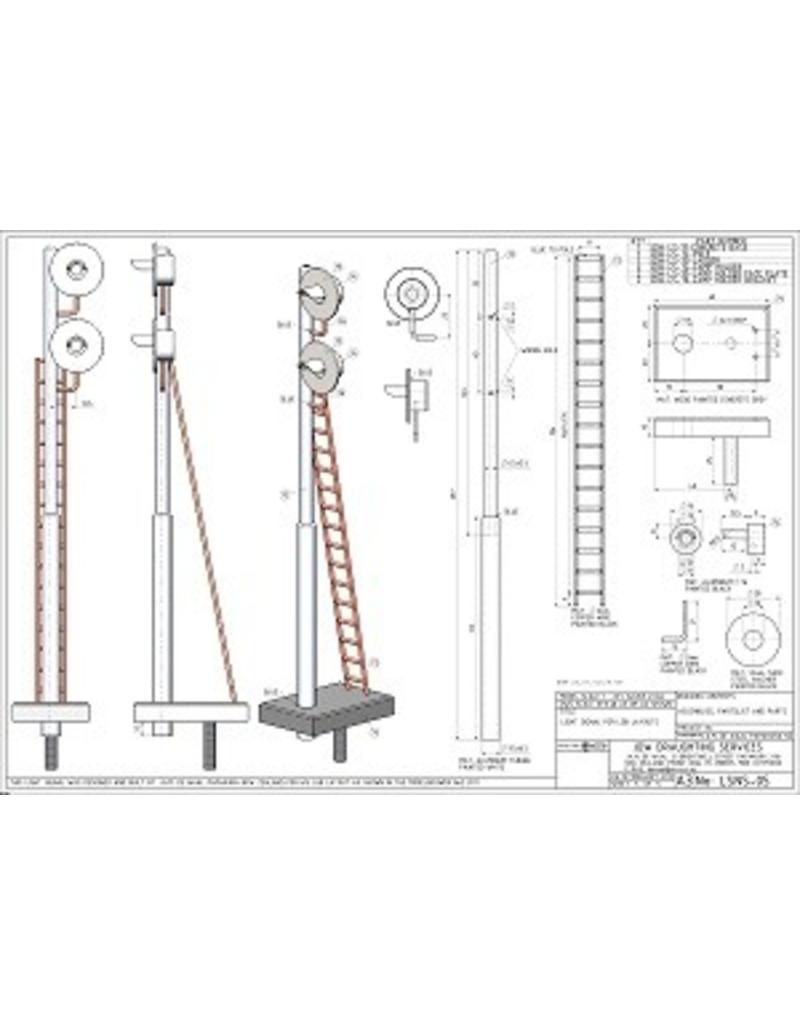

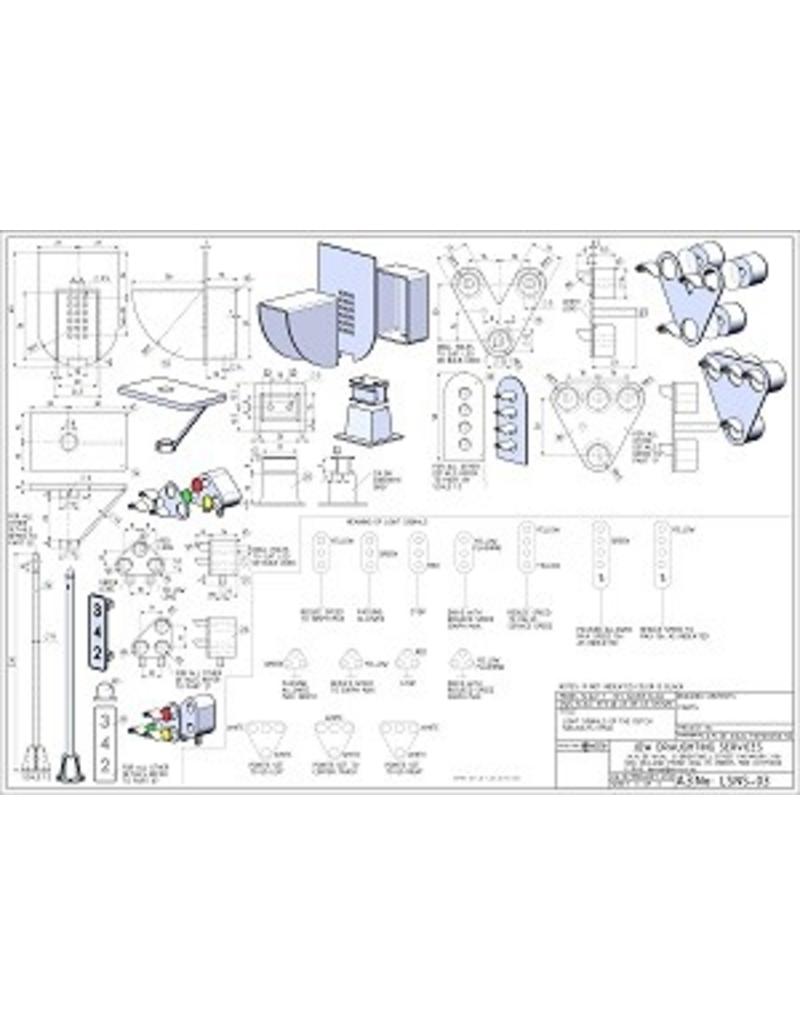

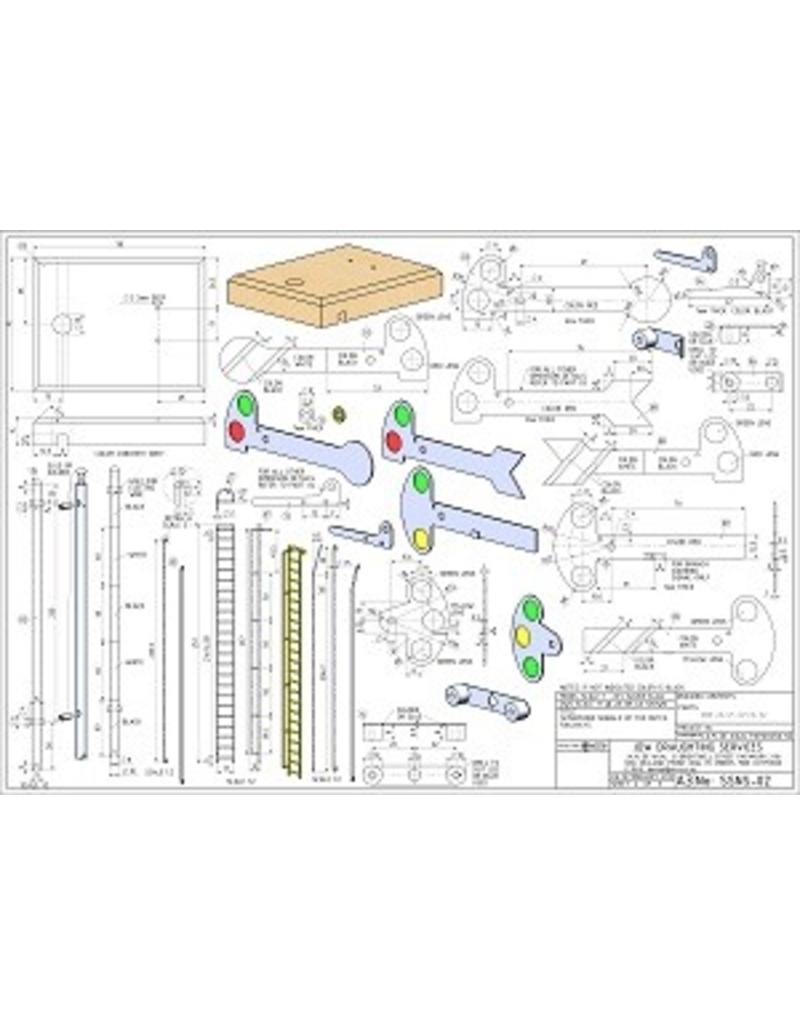

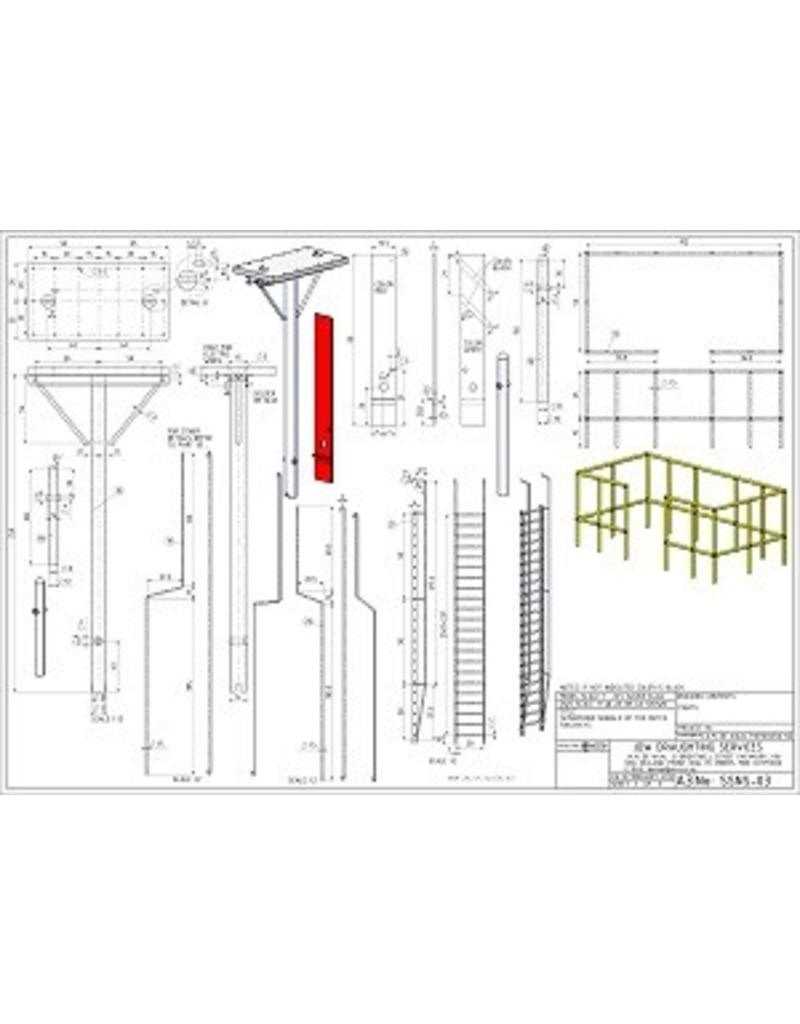

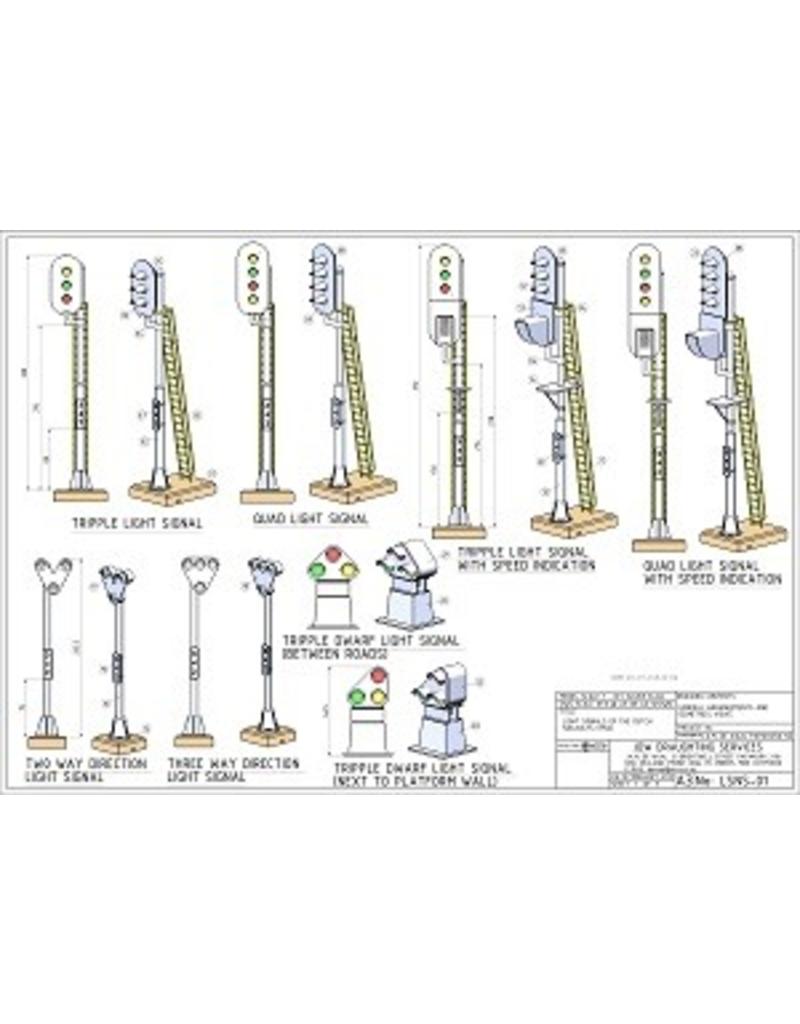

CD - Arm signals and daylight signals NS, system 1952; freelance daylight signal for LGB |
|
Quality |
detailed model building drawings |
|
Difficulty level |
B |
|
Scale |
1 : 64 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
0 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
0 |
|
Special features |
The CD contains files in SolidWorks, PDF, and e-Drawing format as well as the e-Drawings program; The CD also contains the source material. |
|
Notes |
