MBT 20.20.012 freight locomotive NS 4700 - ("Goods Swede"); for gauge 2 (58 mm)

Drawing number

20.20.012

Author

J.J. van Rooijen

Description

freight locomotive NS 4700 - ("Goods Swede"); for gauge 2 (58 mm)

Quality

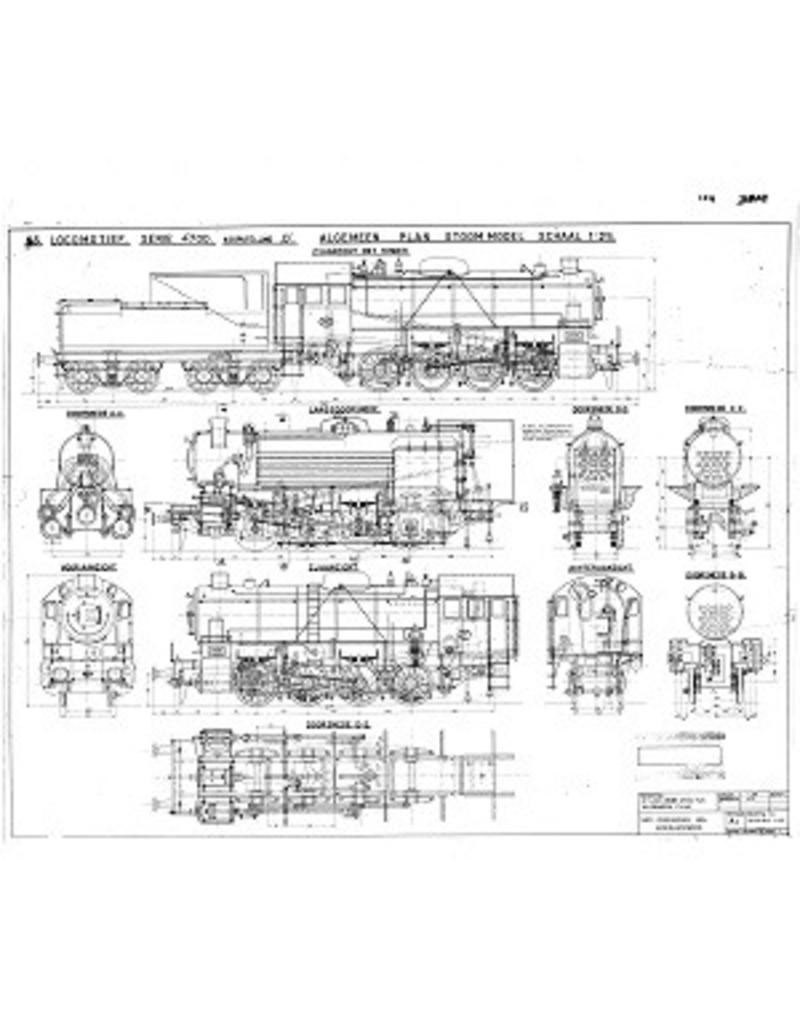

detailed construction drawing; the tender drawing is 1:45

Difficulty level

D

Scale

1 : 25 and 1:1 : 45

Number of A00 sheets

0

Number of A0 sheets

1

Number of A1 sheets

1

Number of A2 sheets

4

Number of A3 sheets

12

Number of A4 sheets

0

Total number of drawing sheets

18

Number of A4 text sheets

0

Weight in grams

345

Details

dM 1965/12, 1066/1,3, 1978/4,6

Article copy: 22.20.012 (8 pages)

Gauge 2 (58 mm); spirit-fired; 3 bar; driving wheels diam. 57 mm

In 1978, a new boiler and some modifications were published; these are part of the drawing set

Remarks

was 20.00.012
