| Article number: | 10.09.009 |
The Boskoop Triple Schouw is a traditional type of wooden flat-bottomed boat that was originally used for transporting trees and other products in the tree nursery areas around Boskoop. These schouwen were essential for tree growers, as they were the only way to transport their products via the many ditches and waterways to the markets.
Construction Material: Wood, often oak or other durable wood.
Shape: Flat-bottomed with a slight curve, suitable for shallow waters.
Length: Varying, but often between 10 and 12 metres.
Use: Transport of trees, soil, and other products within the tree nursery sector.
Propulsion: Originally with a quant pole or by rowing; later also with an outboard motor.

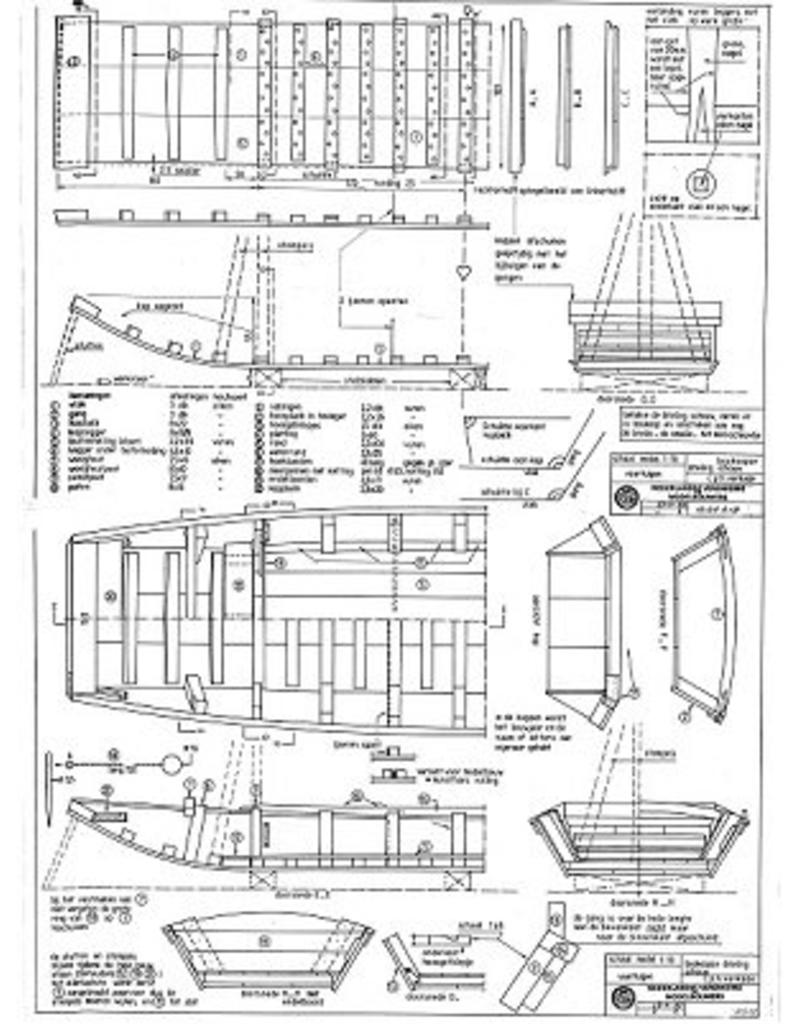

For model builders, there is drawing NVM 10.09.009 of the Boskoop Triple Schouw, made by C.P.H. Molenaar. This drawing is available in scale 1:8 and contains cross-sections and construction details on a single A1-sized sheet. It is a valuable resource for those interested in building a scale model of this schouw
Specifications :
|
Drawing Number |
10.09.009 |
|
Author |
C.P.H. Molenaar |
|
Description |
Boskoop Triple Schouw |
|
Quality |
cross-sections; construction details; two sheets combined on one A1 sheet |
|
Scale |
1 : 8 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
1 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
l.o.a. 64 cm |
|
Remarks |
