| Article number: | 10.10.097 |
The MS Stability is a Dutch cargo ship built in 1949 at Scheepswerf A. Apol in Wirdum, Groningen. The ship was a motor cargo ship with a 4-cylinder MAN diesel engine of 255 hp and a speed of 9 knots. It had a gross tonnage of 392 GRT and a deadweight capacity of 440 tons.
The ship had a raised quarter deck and was equipped with two masts and two derricks with a lifting capacity of 2 tons each. The hull was made of steel and the ship had one deck.
After construction, the ship was registered under the Dutch official number 2493 Z GRON 1949 and classified by Lloyd's Register of Shipping (LR). It was a general cargo ship primarily active on domestic and European trade routes.
Limited information is available about the ship's later history. It is possible that it was decommissioned and scrapped in the 1970s or 1980s, but specific details are not documented.
Specifications :
|
Drawing number |
10.10.097 |
|
Author |
J.TH.M. Buter |
|
Description |

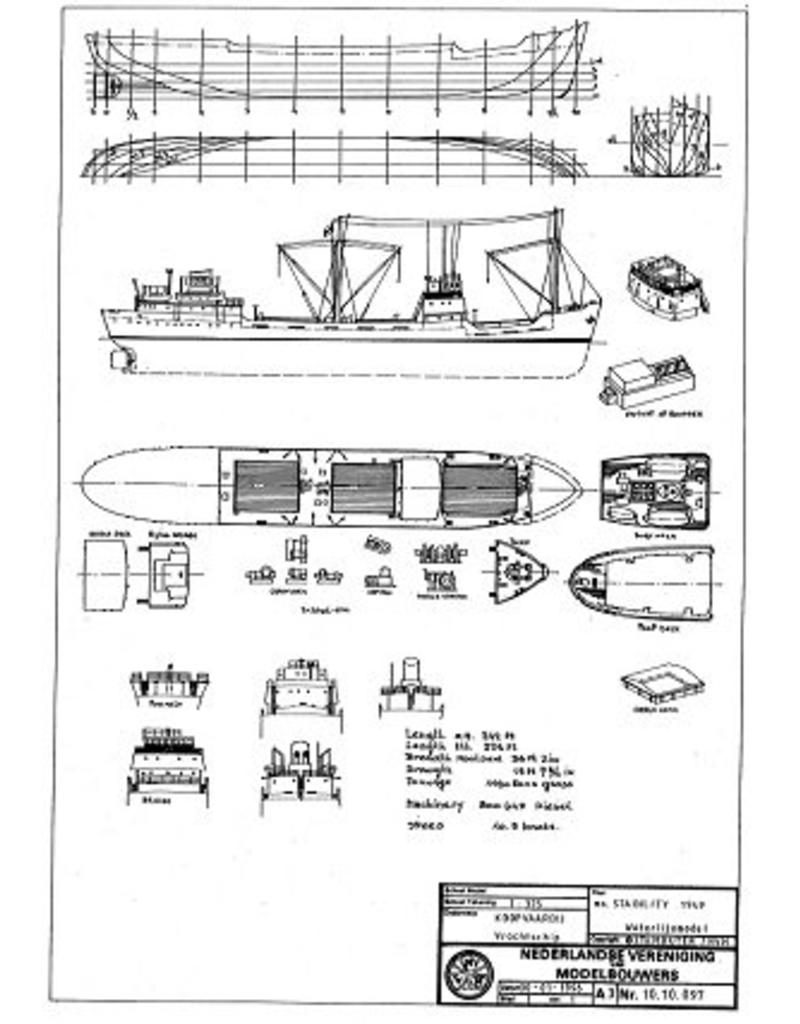

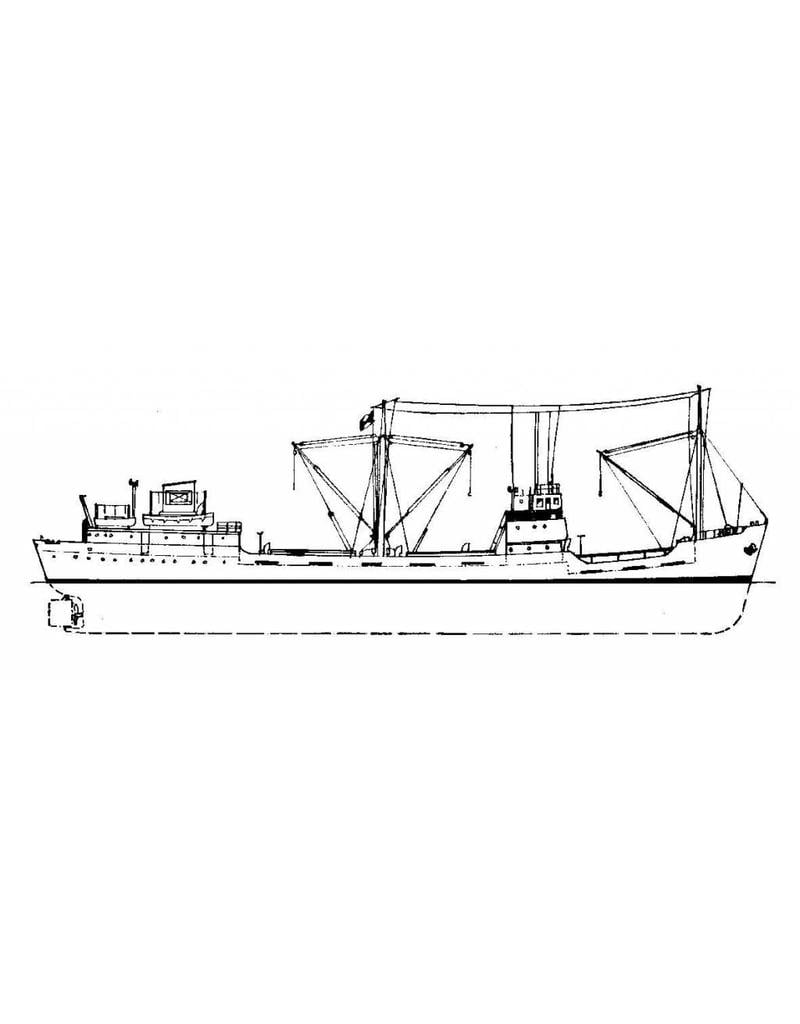

cargo ship ms "Stability" (1949) |
|
Quality |
sp/lines; side view; decks; details |
|
Scale |
1 : 375 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Particulars |
l.o.a. 19.6 cm |
|
Remarks |
check name and owner |
