| Article number: | 10.10.098 |
The MS Witmarsum was a Dutch motor cargo ship built in 1956 at the Scheepswerf v/h Jan Smit Czn. shipyard in Alblasserdam. The ship was originally launched under the name Winsum, but was later renamed Witmarsum.
Type: Motor cargo ship (General Cargo)
Year of construction: 1956
Shipyard: N.V. Scheepswerf v/h Jan Smit Czn., Alblasserdam, Netherlands
IMO number: 5392329
Length: 147.48 metres (LOA)
Width: 18.84 metres
Draught: 7.88 metres
Gross tonnage (GRT): 6,229
Net tonnage (NRT): 3,415
Deadweight tonnage (DWT): 10,290 tonnes
Speed: 14.5 knots
Main engine: MAN diesel, 8 cylinders, 5,400 BHP
Number of propellers: 1
Number of decks: 2
Deck type: Open shelter deck
Hull material: Steel
Accommodation: For 10 passengers
The ship was delivered in February 1956 to N.V. Stoomvaart Maatschappij 'Oostzee' in Amsterdam, with Vinke & Zonen acting as manager. The ship was deployed on various trade routes, including to ports in Europe and Africa.
In 1972, the ship was sold to the Ocean Tramping Company Ltd in Mogadishu, Somalia, and renamed Minfung. In 1976, the ship came into the possession of the China Ocean Shipping Company (COSCO) in Shanghai, China, and was renamed Hong Qi-12
The ship was scrapped in 1982 or 1983.
Specifications:
|
Drawing number |
10.10.098 |
|
Author |
J.TH.M. Buter |
|
Description |

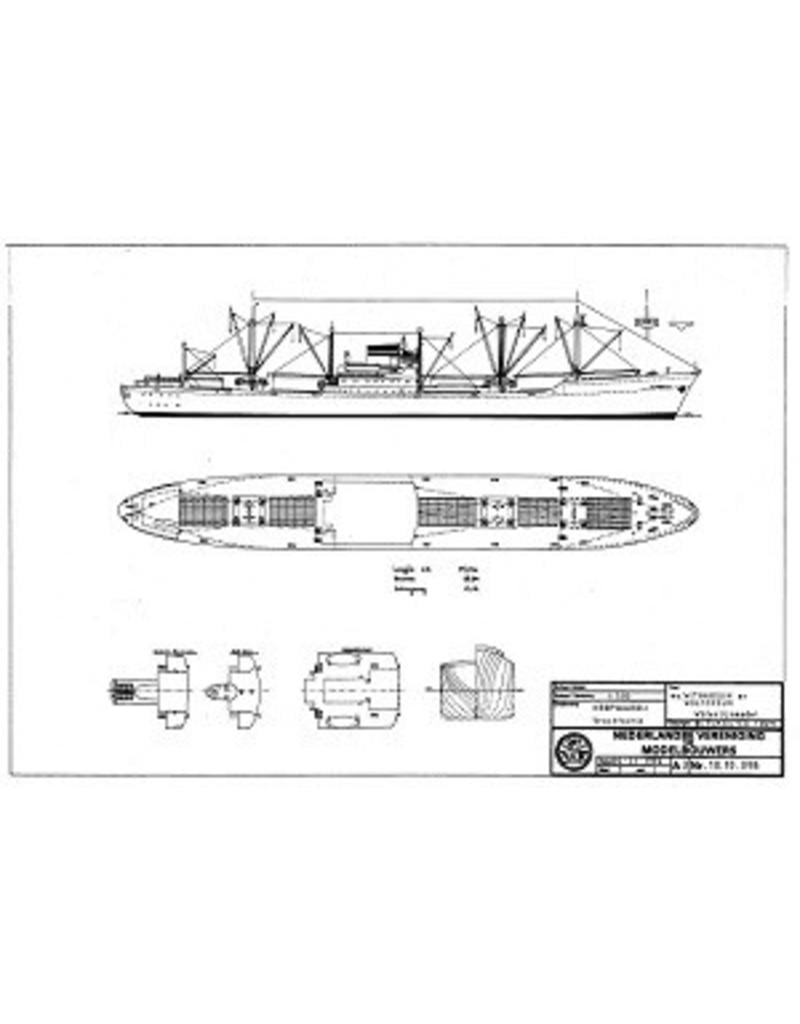

Cargo ship MS "Witmarsum" (1955) – Mij. Oostzee; "Woltersum" |
|
Quality |

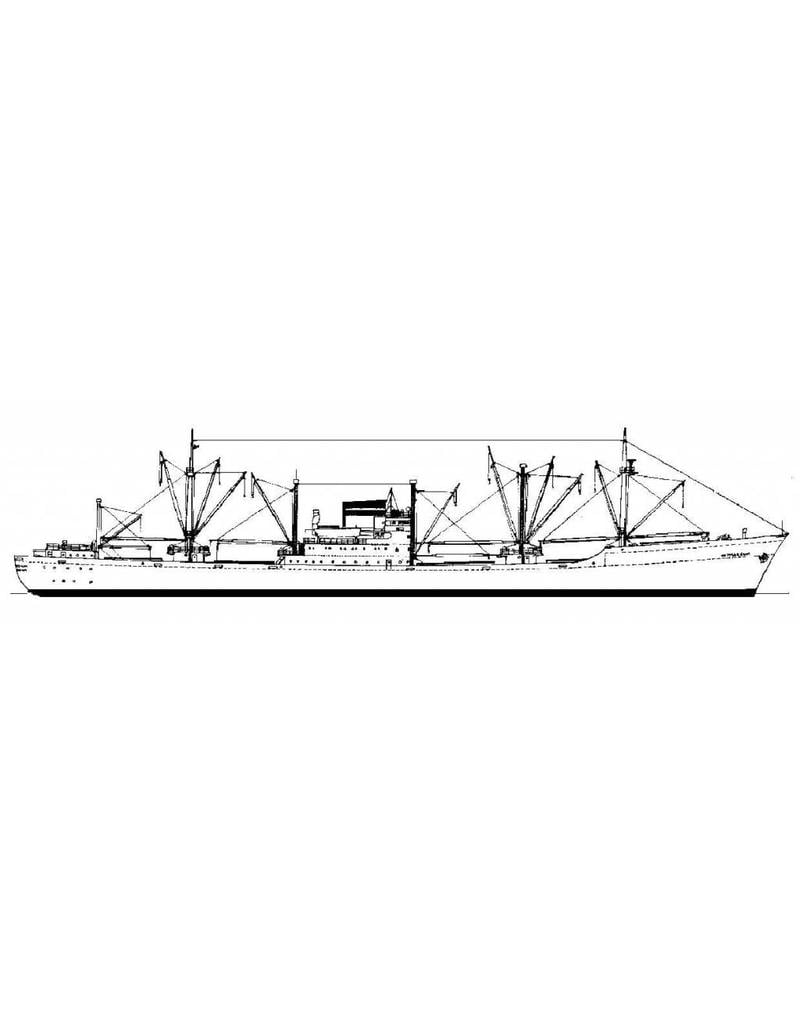

frames; side view; decks |
|
Scale |
1 : 500 |
|
Number of sheets A00 |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
1 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Details |
Total length 29.5 cm |
|
Remarks |
