| Article number: | 10.10.101 |
The MS Atlantic was a Dutch motor cargo ship built in 1978 by Tille Scheepsbouw B.V. in Kootstertille, Friesland. The ship was originally registered under the official number 4936 Z GRON 1978 and was based in Groningen, the Netherlands. It was managed by Seatrade Groningen B.V. and owned by C.V. Scheepvaartonderneming Atlantic
Type: Motor cargo ship (General Cargo)
Year of construction: 1978
Length: 81.01 metres (LOA)
Beam: 13.19 metres
Draught: 5.05 metres
Gross tonnage (GRT): 2,285
Net tonnage (NRT): 765
Deadweight tonnage (DWT): 2,448 tonnes
Main engine: Wärtsilä 8L32, 3,400 kW (4,623 hp)
Speed: 18 knots
Number of decks: 1
Number of cranes: 2× 120 tonnes SWL
In 1982, the ship was lengthened at the Mutzelfeldt Shipyard in Cuxhaven, Germany. Following the extension, the ship had a gross tonnage of 2,285 GRT, a net tonnage of 765 NRT and a deadweight of 2,448 tonnes. It was renamed Atlantic Ice and registered under the flag of the Netherlands Antilles.
In 2000, the ship was sold to Silver Sea Reefer Co. Ltd. in Bangkok, Thailand, and renamed Silver Sea 2. The ship was eventually scrapped in 2012.
Specifications:
|
Drawing number |
10.10.101 |
|
Author |
J.TH.M. Buter |
|
Description |

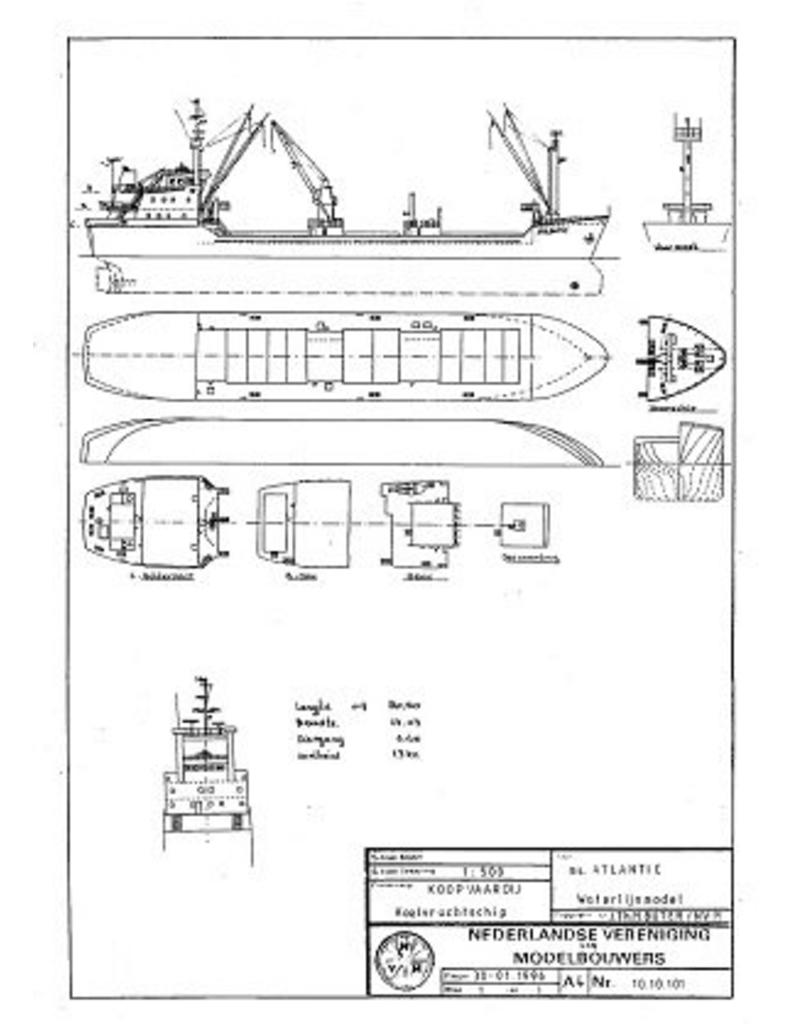

Refrigerated ship MS "Atlantic" - SeaTrade |
|
Quality |

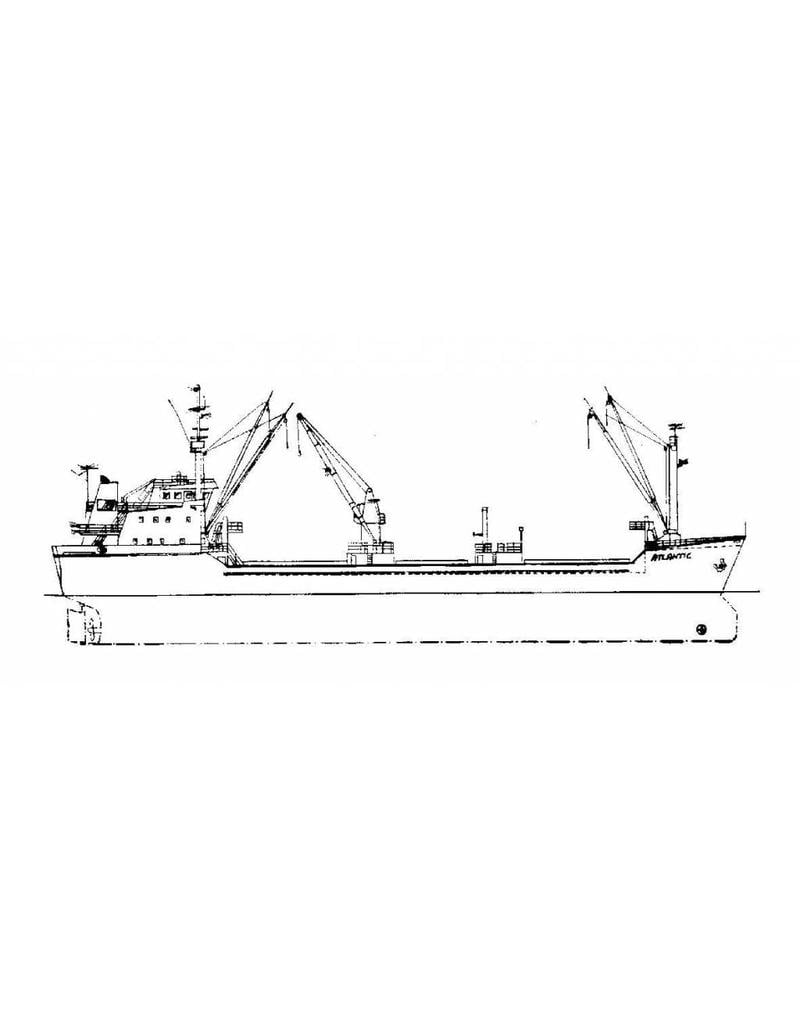

sp/lines; side view; decks |
|
Scale |
1 : 500 |
|
Number of sheets A00 |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
1 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
30 |
|
Details |
Total length 16.1 cm |
|
Remarks |
check name/year of manufacture |
