MBT 20.02.014 CD - Locomotor NS 307 for 7.25" and 10" gauge

Drawing number

20.02.014

Author

J.A.M. de Waal

Description

CD - Locomotor NS 307 for 7.25" and 10" gauge

Quality

detailed model building drawings

Difficulty level

D

Scale

various

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

0

Number of A3 sheets

0

Number of A4 sheets

0

Total number of drawing sheets

0

Number of A4 text sheets

0

Weight in grams

0

Special features

dM 1/2013

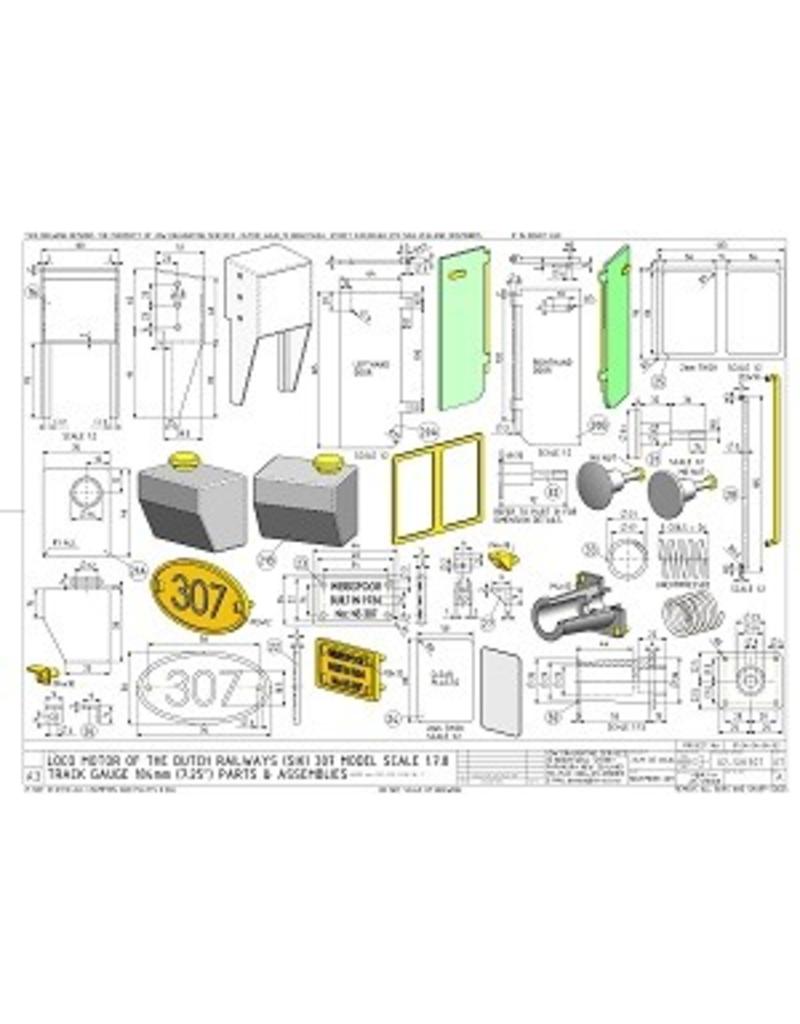

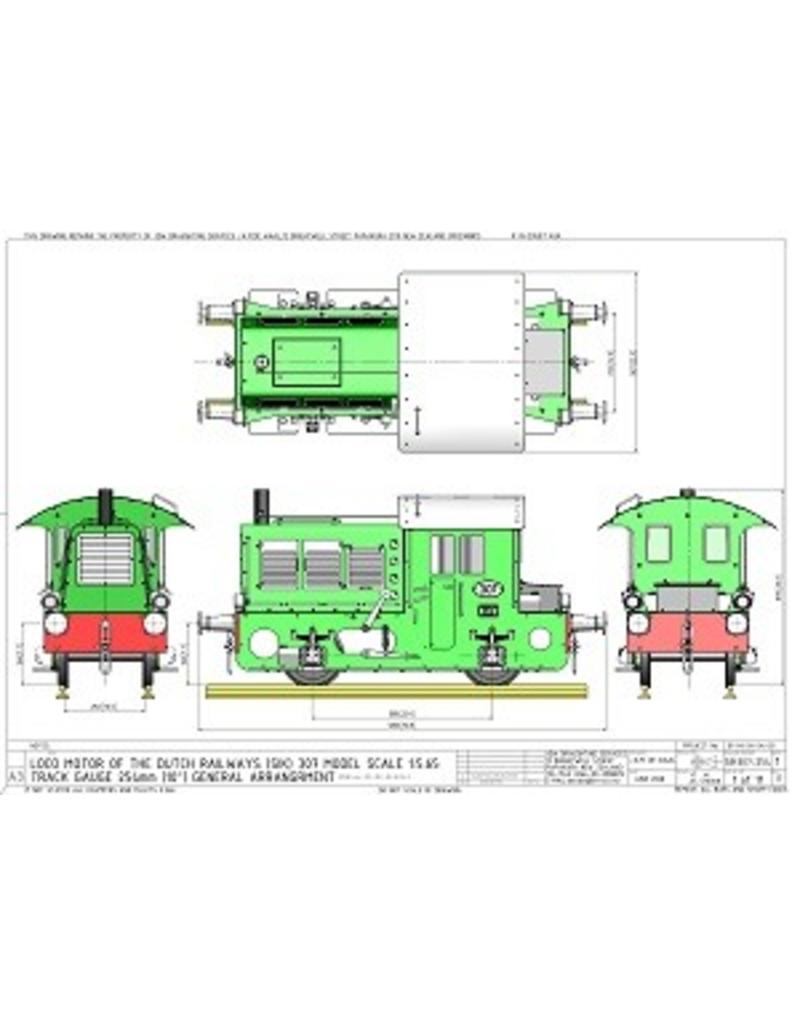

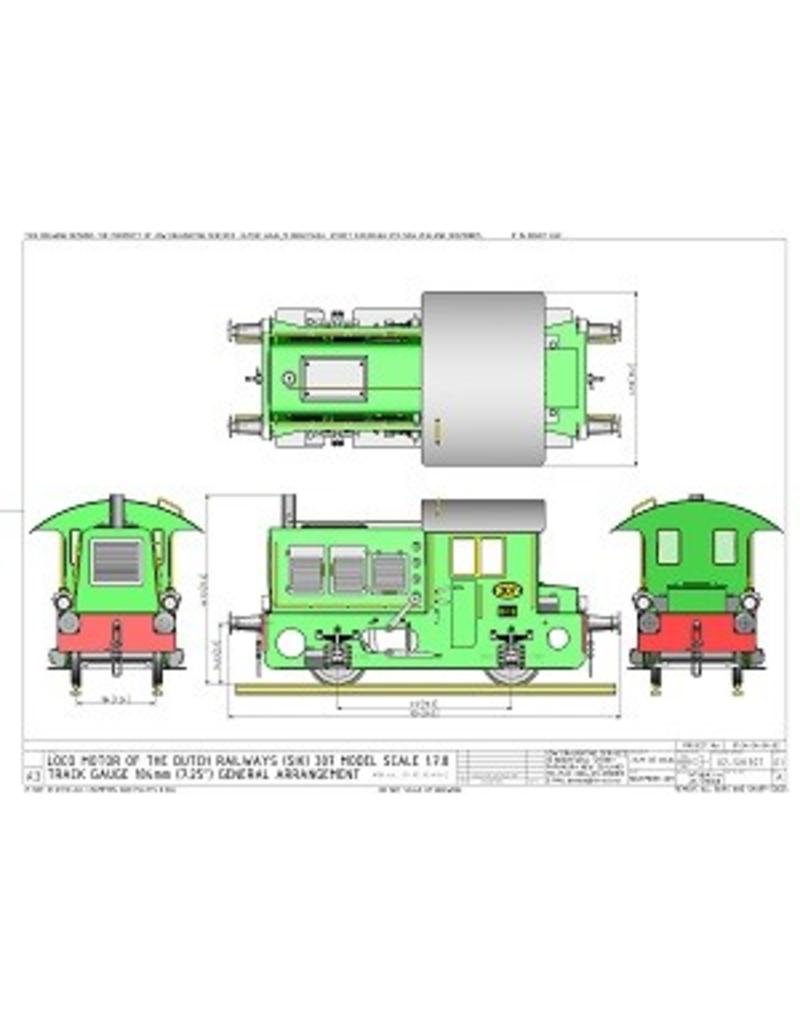

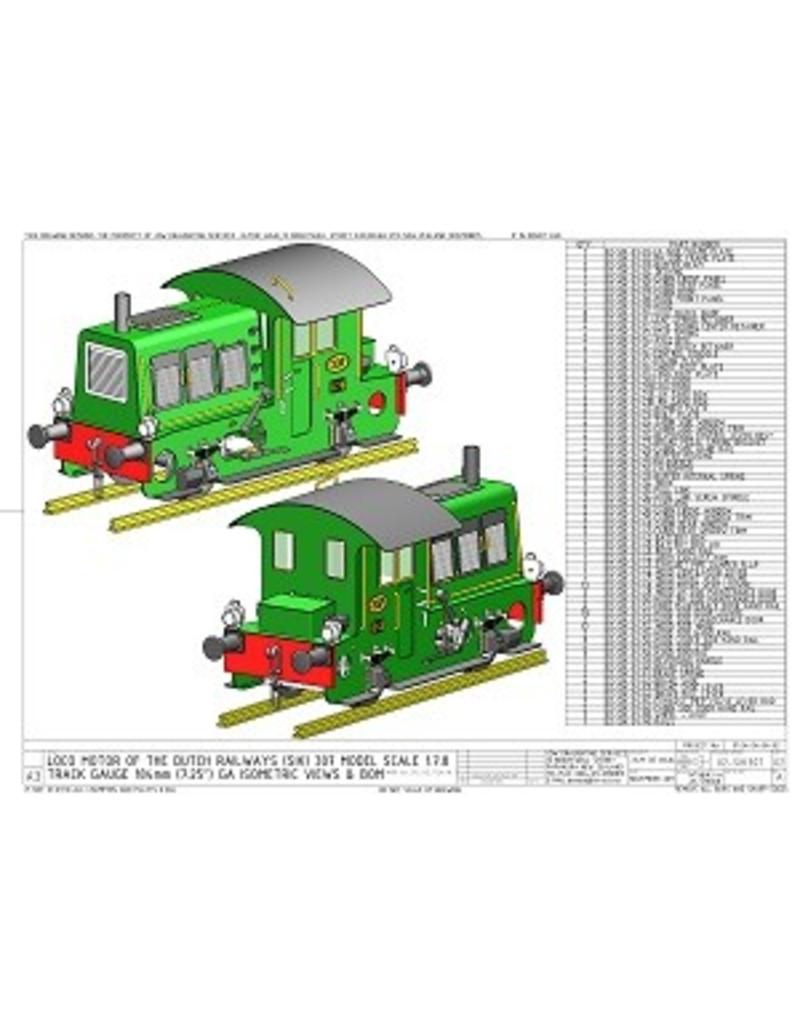

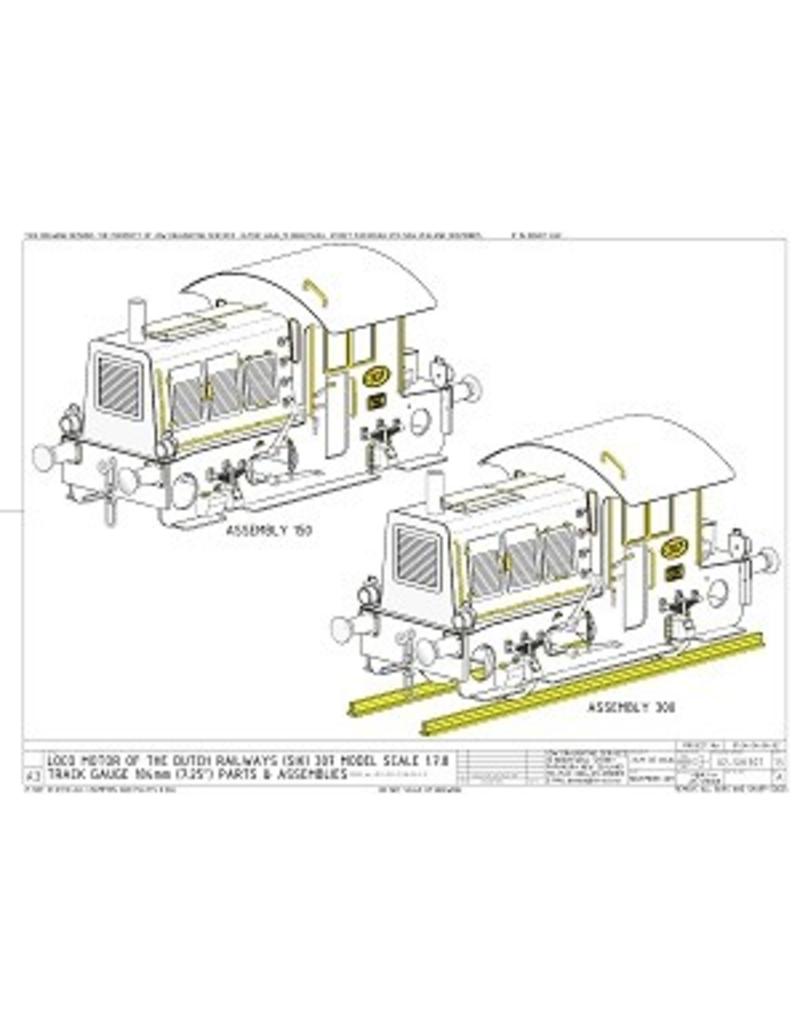

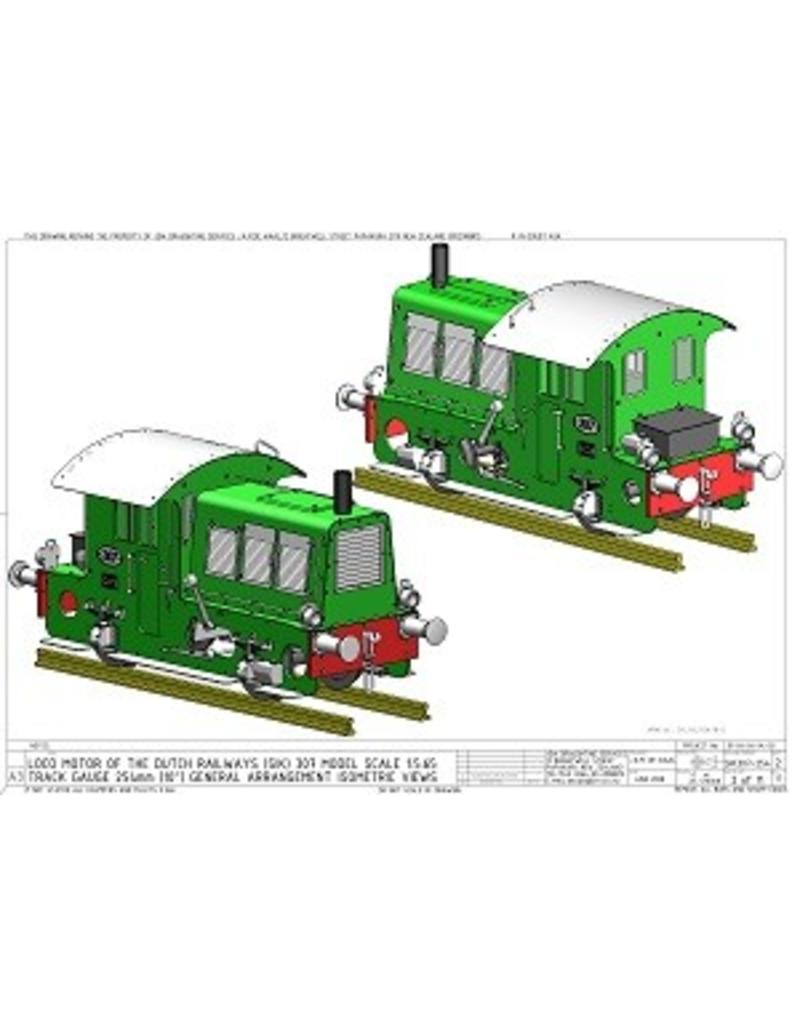

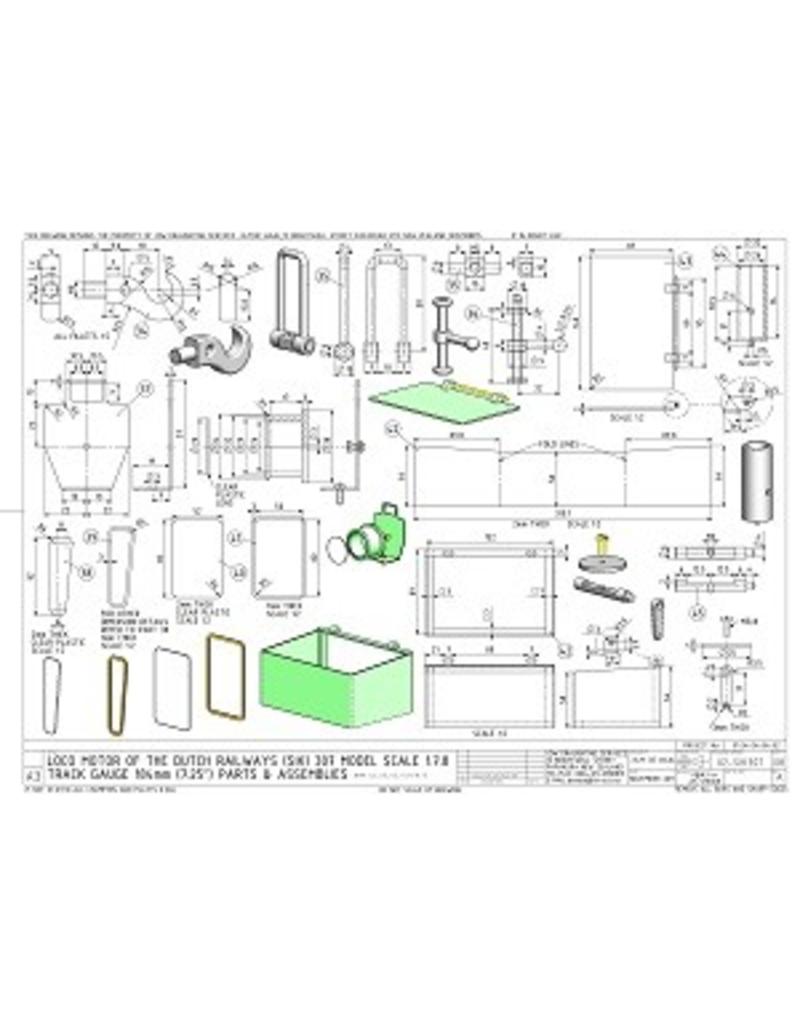

The CD contains all drawings in Solid Works and E-draw format, as well as PDF files. The E-draw program is included. Three variations have been drawn: for 7.25" gauge, for 10" gauge in metal, and for 10" gauge in wood. The 10" variation is a simple design suitable for playground or park railways. The choice of drive system is left to the builder.

Individual drawing sets are also available on paper upon request.

Remarks
