| Article number: | 20.20.016 |
Specifications:
|
Drawing number |
20.20.016 |
|
Author |
J.A.M. de Waal |
|
Description |

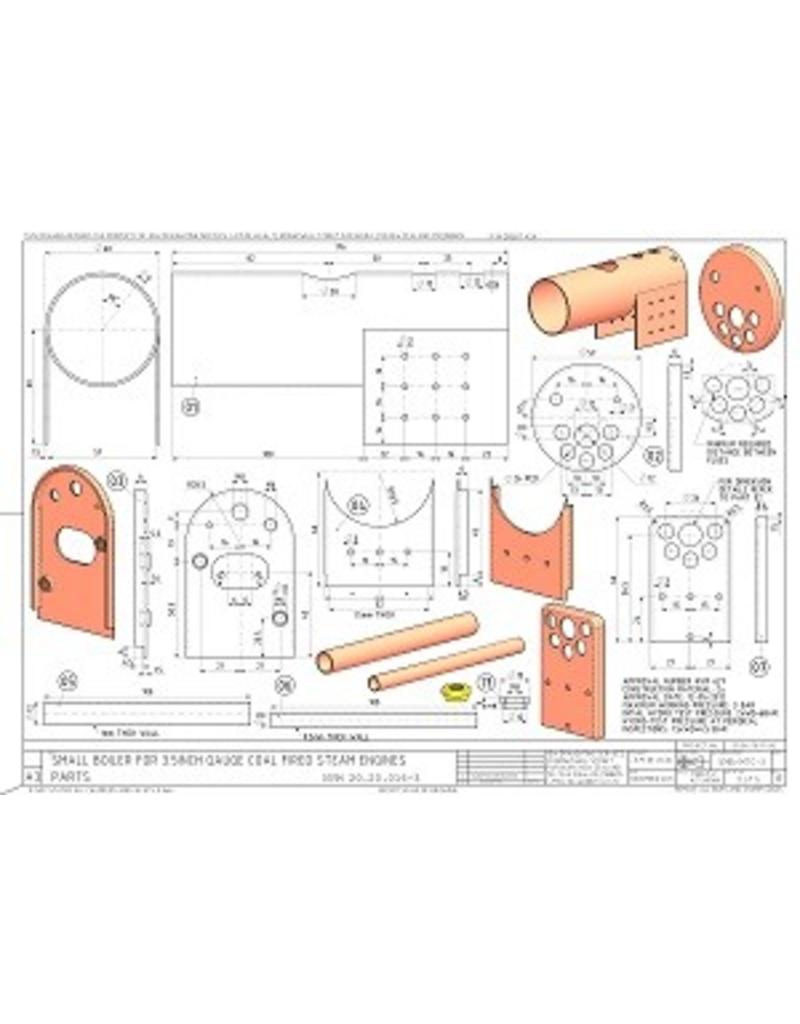

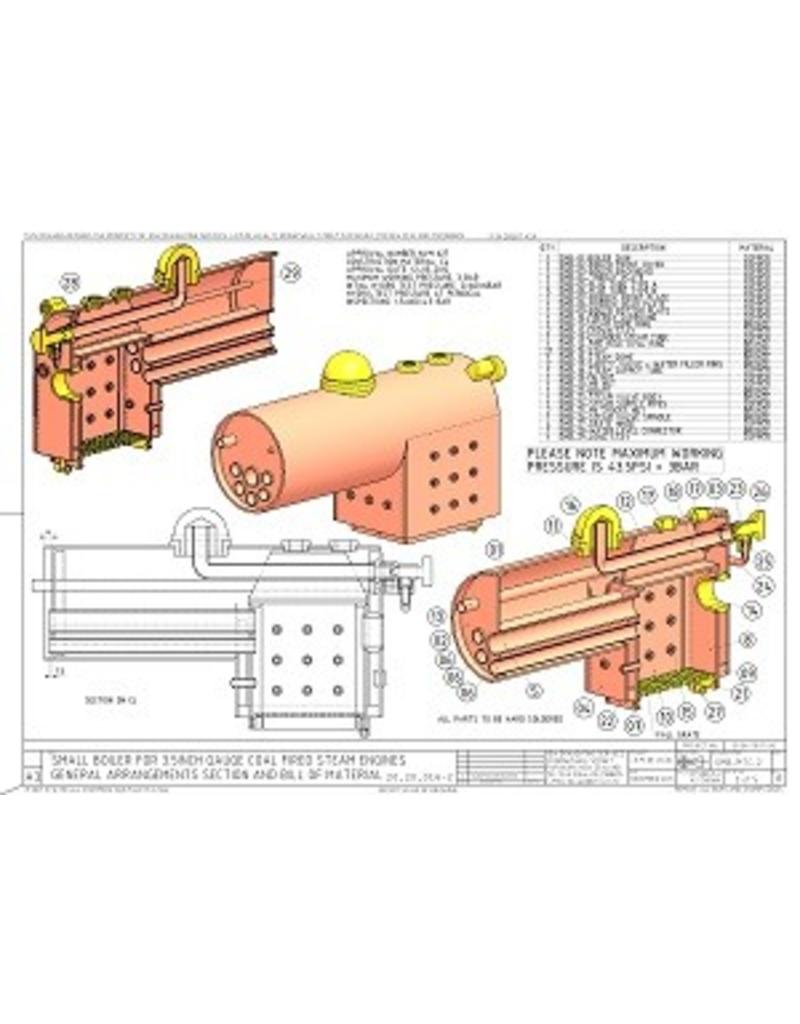

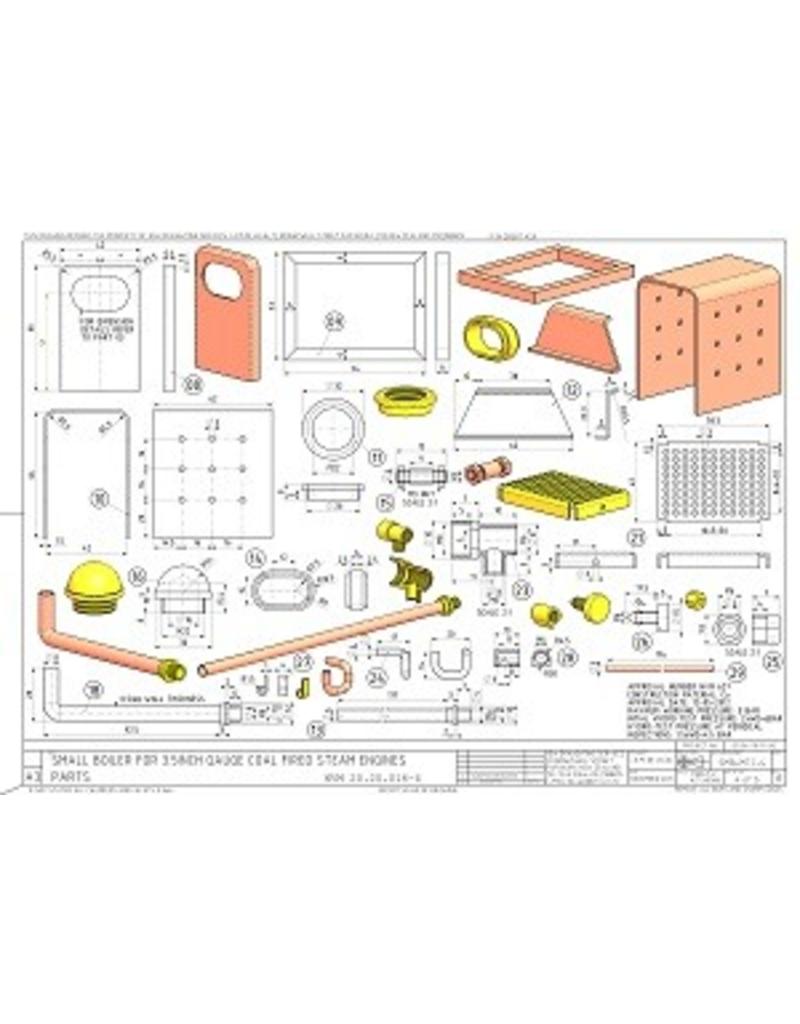

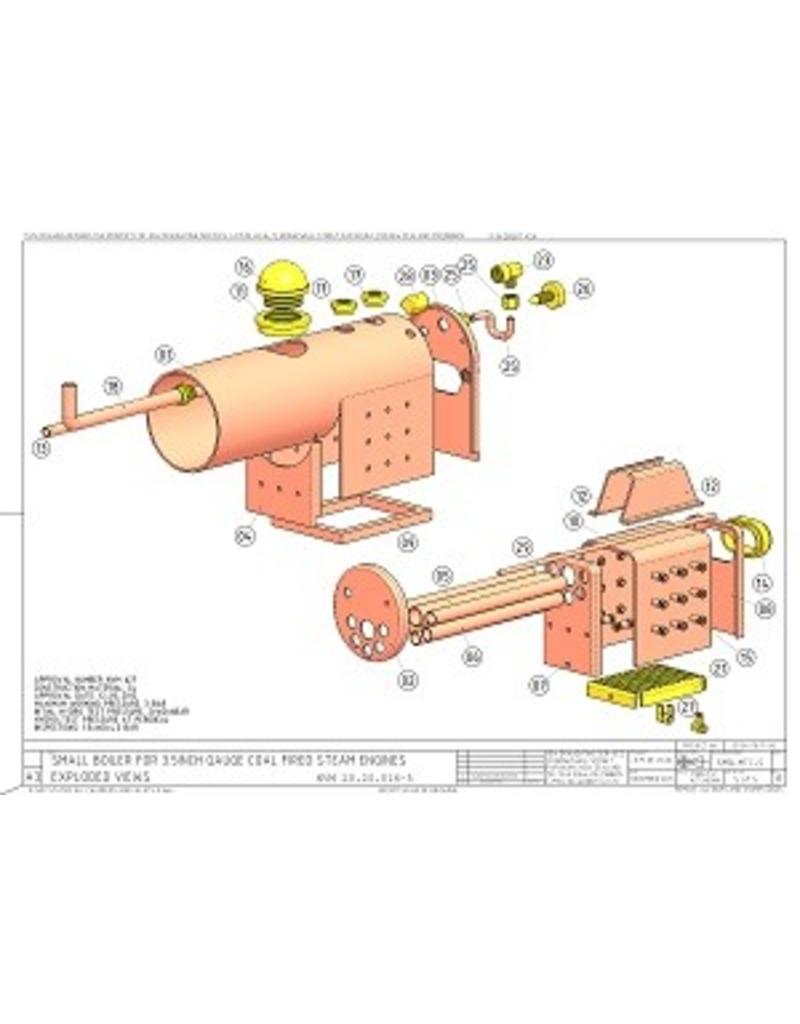

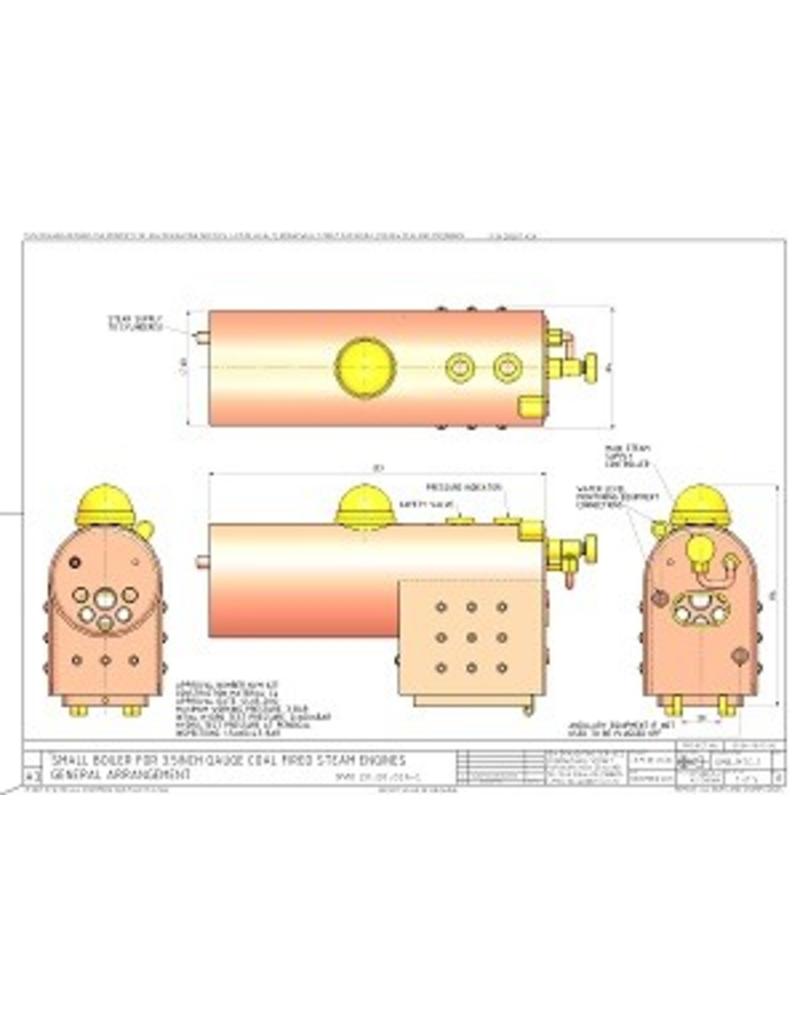

Small coal-fired boiler for locomotive on 3.5" gauge |
|
Quality |
a fully detailed model engineering drawing |
|
Difficulty level |
C |
|
Scale |
|
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
5 |
|
Number of A4 sheets |
0 |
|
5 |
|
|
Number of A4 text sheets |
0 |
|
Weight in grams |
75 |
|
Special features |
The boiler is designed for 3 bar working pressure and is suitable for, e.g., a small B-type locomotive. |
|
Remarks |
