MBT 20.20.019/A steam boiler for NS. 8500 gauge 3.5" (89 mm)

Drawing number

20.20.019/A

Author

J.J. van Rooijen

Description

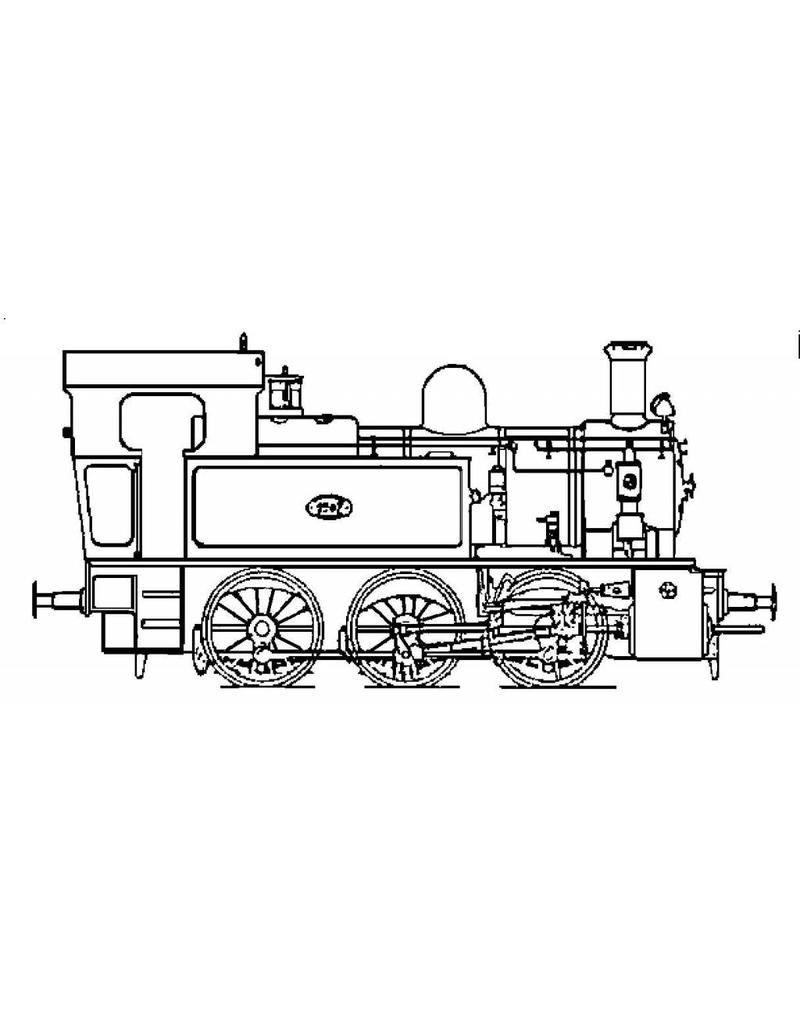

steam boiler for NS. 8500 gauge 3.5" (89 mm)

Quality

detailed construction drawing

Difficulty level

D

Scale

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

1

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

65

Particulars

dM 1990/12

Copy article: 22.20.019/A (2 pp)

Coal-fired; 6 bar

NVM-VC inspection no. 451

Remarks

was 20.00.019A
