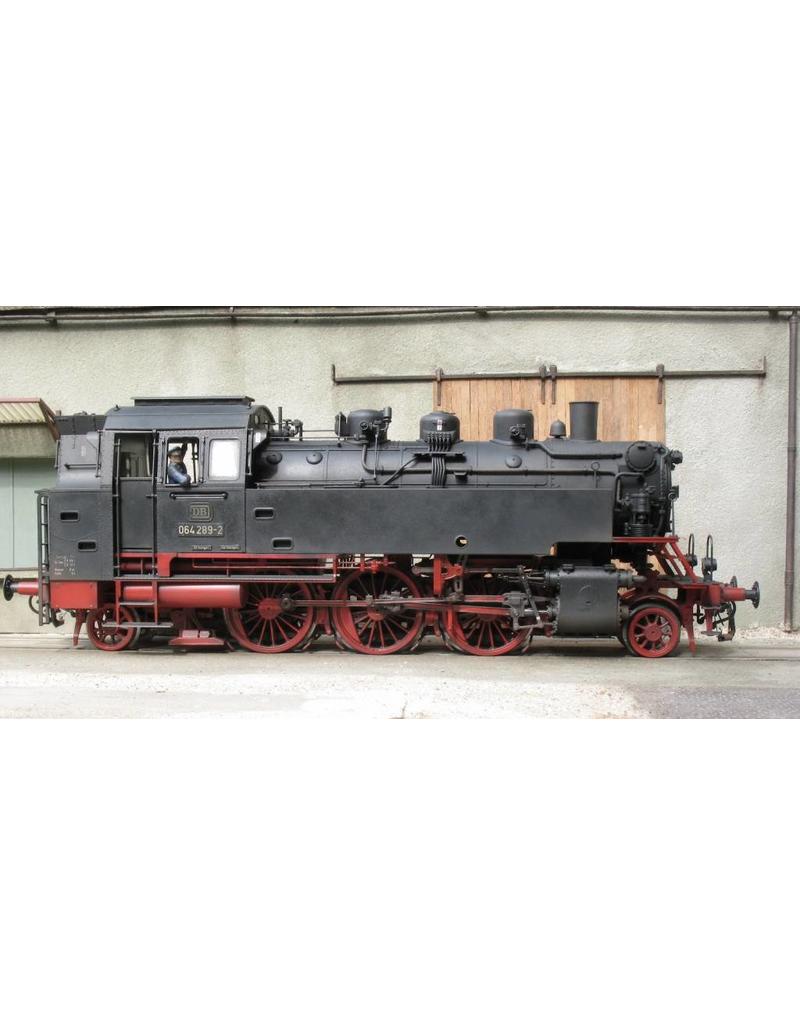

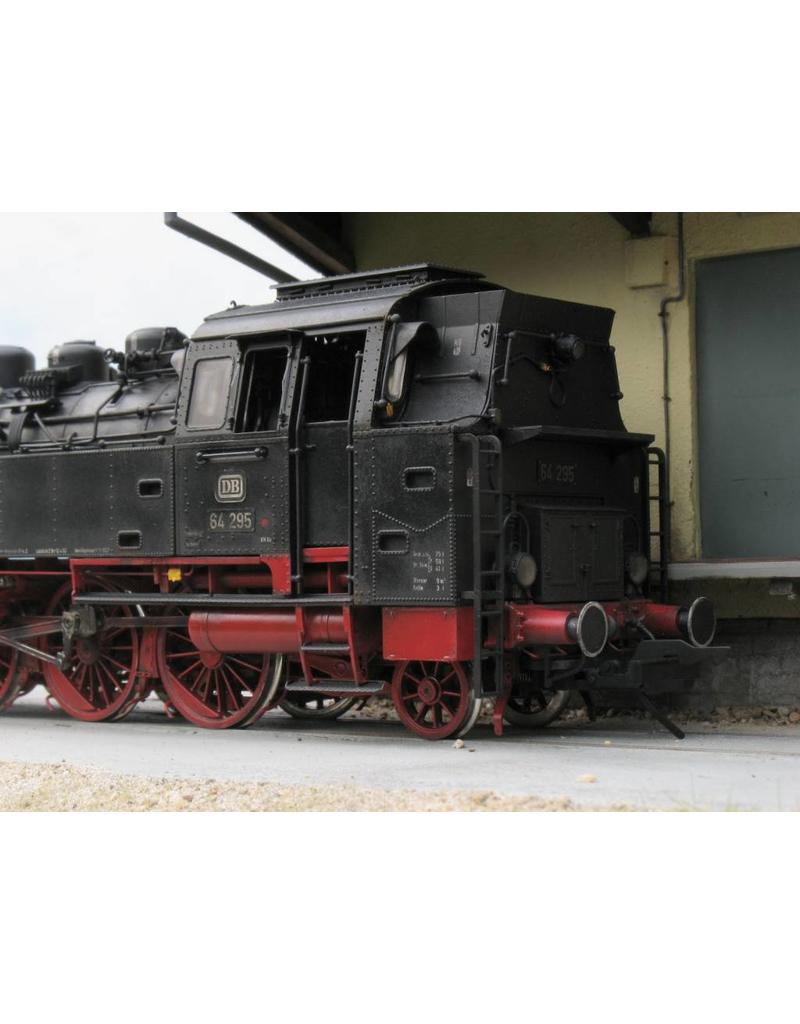

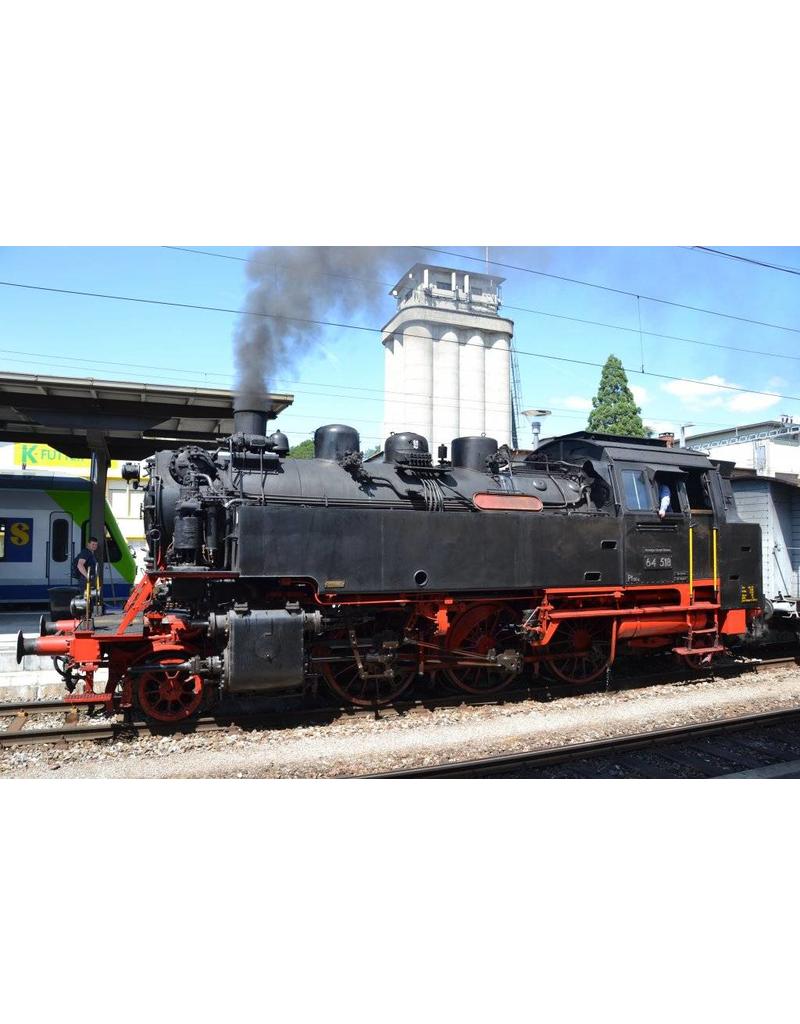

MBT 20.20.032 1-C-1 tank locomotive Baureihe 64(DB) - ("Bubikopf"); for 5" gauge (127 mm)

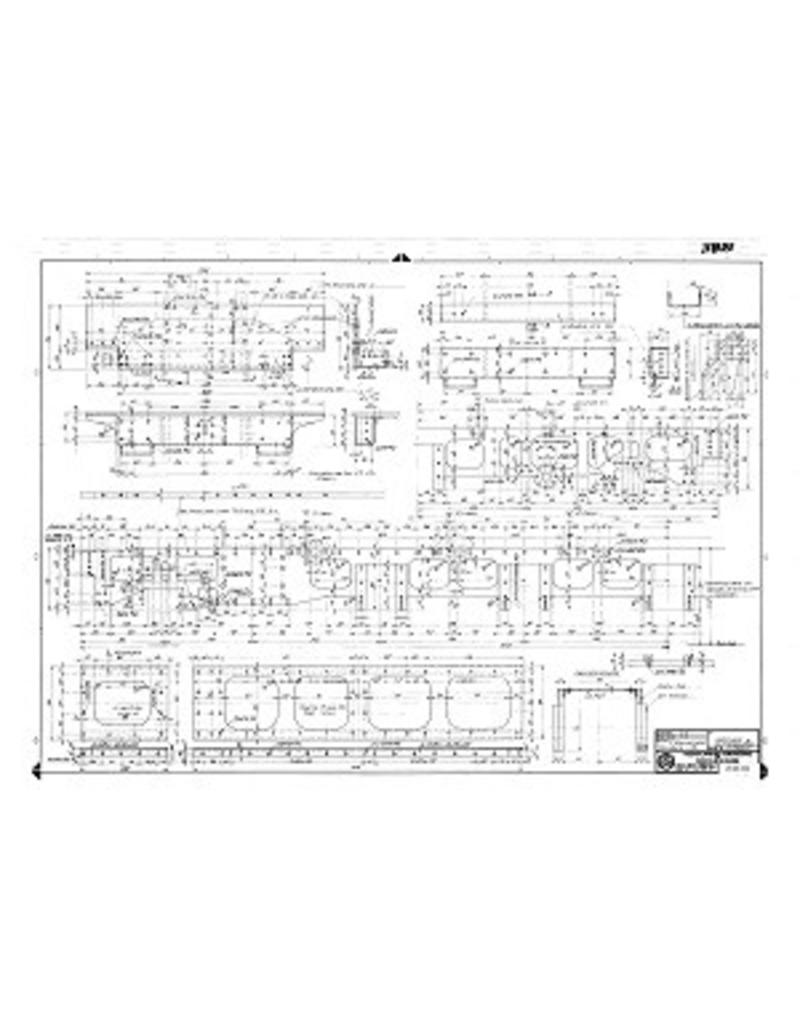

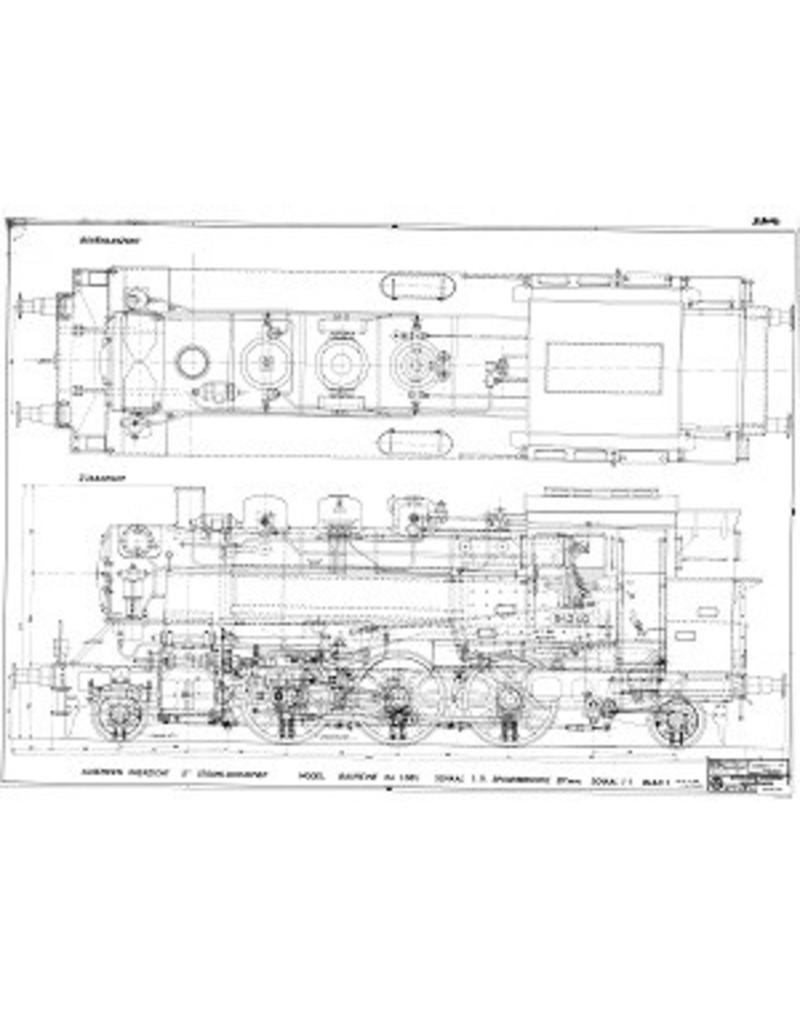

Drawing number

20.20.032

Author

J.J. van Rooijen

Description

1-C-1 tank locomotive Baureihe 64(DB) - ("Bubikopf"); for 5" gauge (127 mm)

Quality

Difficulty level

D

Scale

1 : 11

Number of A00 sheets

0

Number of A0 sheets

1

Number of A1 sheets

6

Number of A2 sheets

23

Number of A3 sheets

0

Number of A4 sheets

0

Total number of drawing sheets

30

Number of A4 text sheets

0

Weight in grams

785

Special features

dM 1993/2 to 1996/2

Copy of article: 72.20.002 (see there)

5" gauge (127 mm); coal-fired; 6 bar; driving wheels diam. 144 mm

Remarks

was 20.20.032

Add VC number
