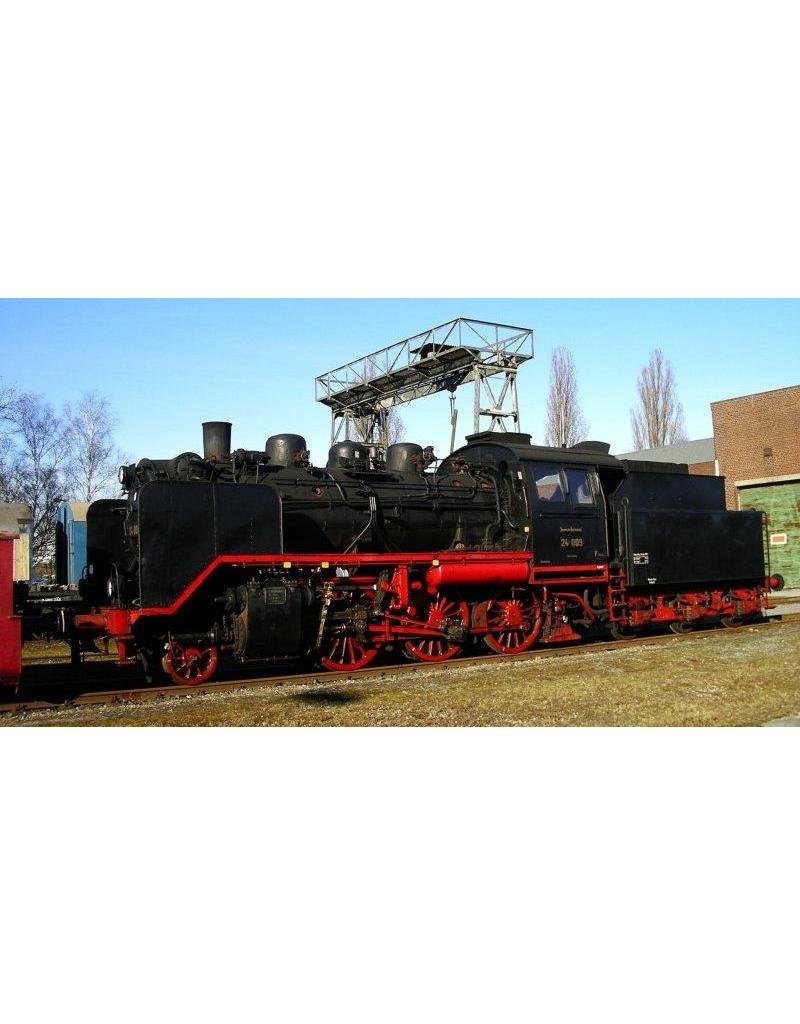

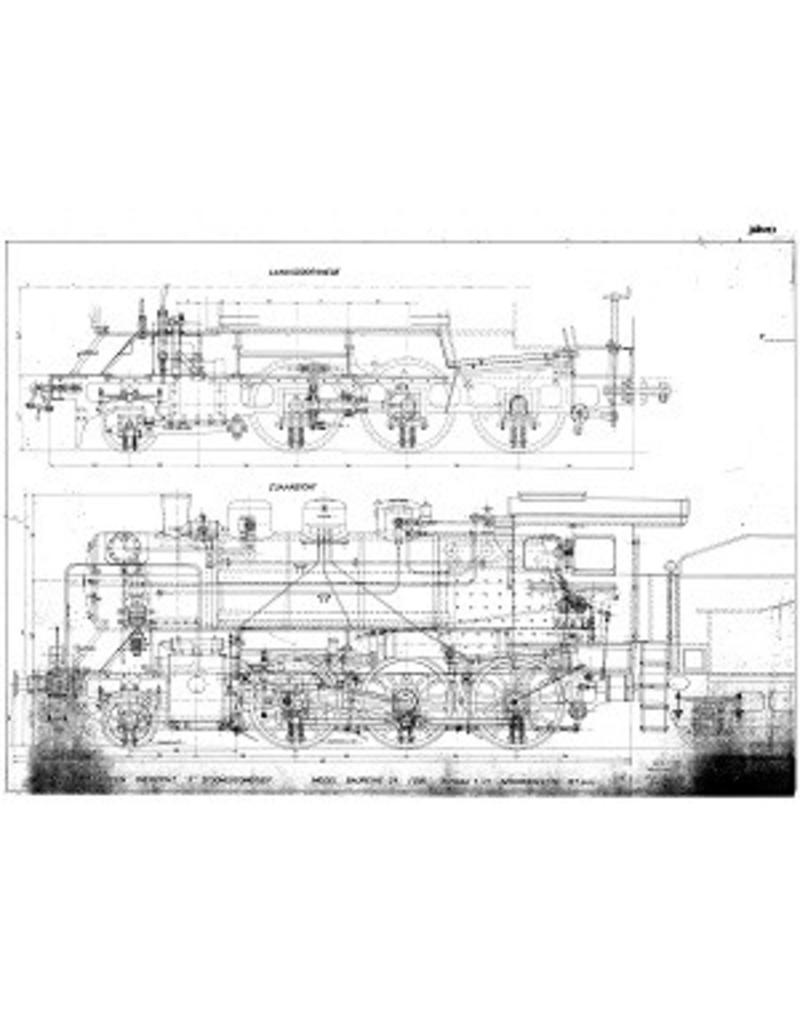

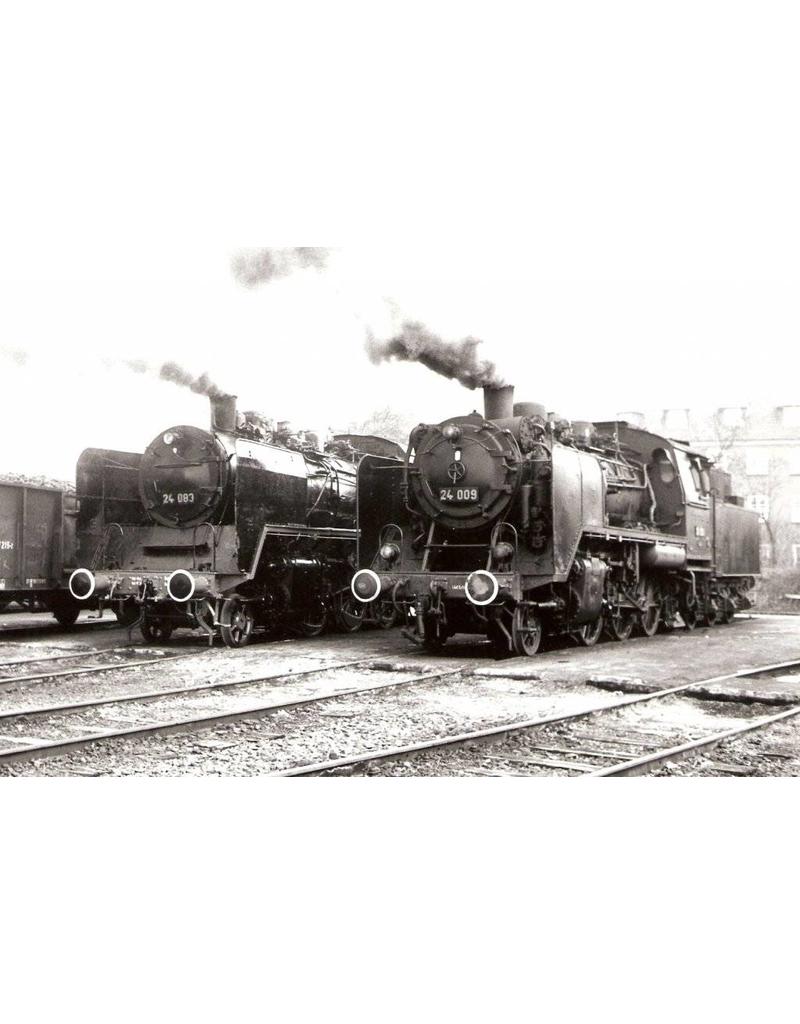

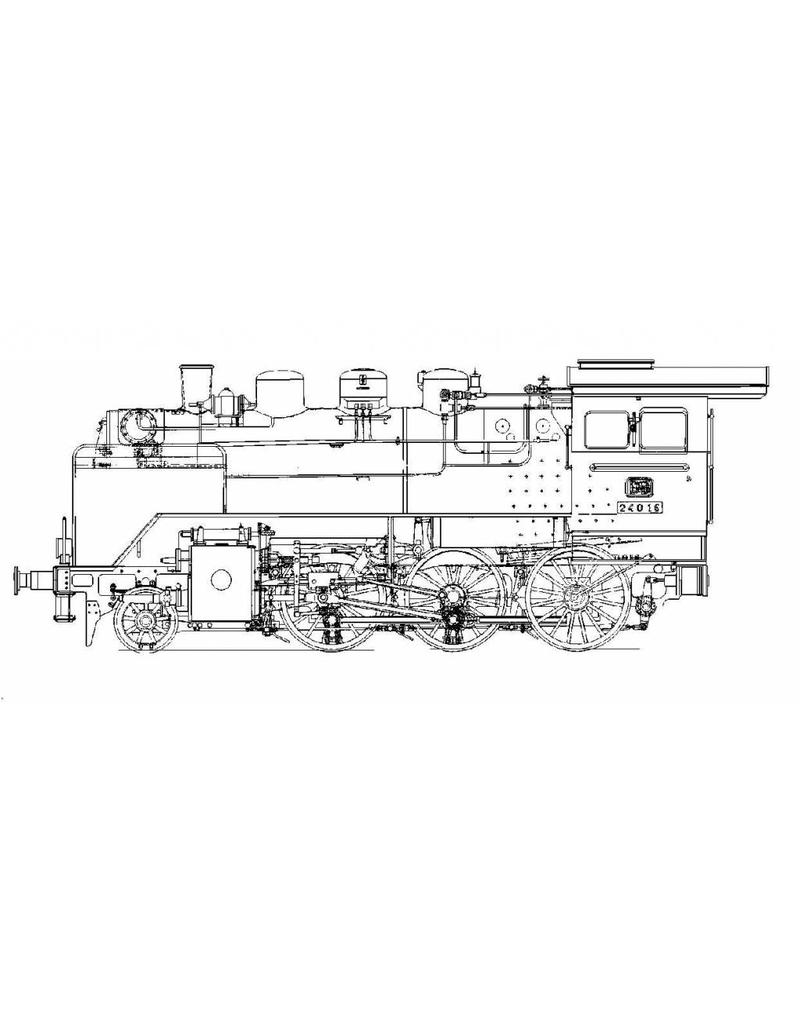

MBT 20.20.033 1-C steam locomotive Baureihe 24(DB) - ("Steppenpferd"); for 5" gauge (127 mm)

Drawing number

20.20.033

Author

J.J. van Rooijen

Description

1-C steam locomotive Baureihe 24(DB) - ("Steppenpferd"); for 5" gauge (127 mm)

Quality

Difficulty level

D

Scale

1 : 11

Number of sheets A00

0

Number of sheets A0

2

Number of sheets A1

7

Number of sheets A2

21

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

30

Number of A4 text sheets

0

Weight in grams

885

Special features

dM 1996/4 to 1998/2

Copy article: 72.20.002 (see there)

5" gauge (127 mm); coal-fired; 6 bar; driving wheels diam. 144 mm.

Part of the drawings for the BR 24 are identical to those for the BR 64; see also 20.20.033/A

Notes

was 20.00.033

Add VC number
