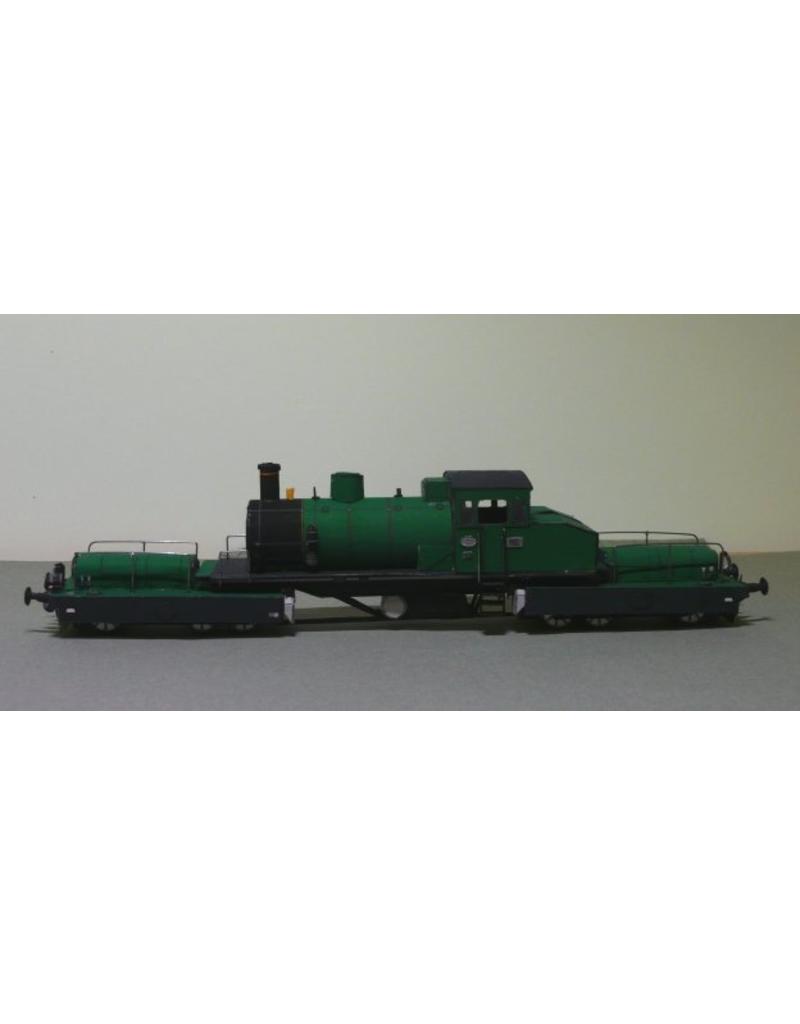

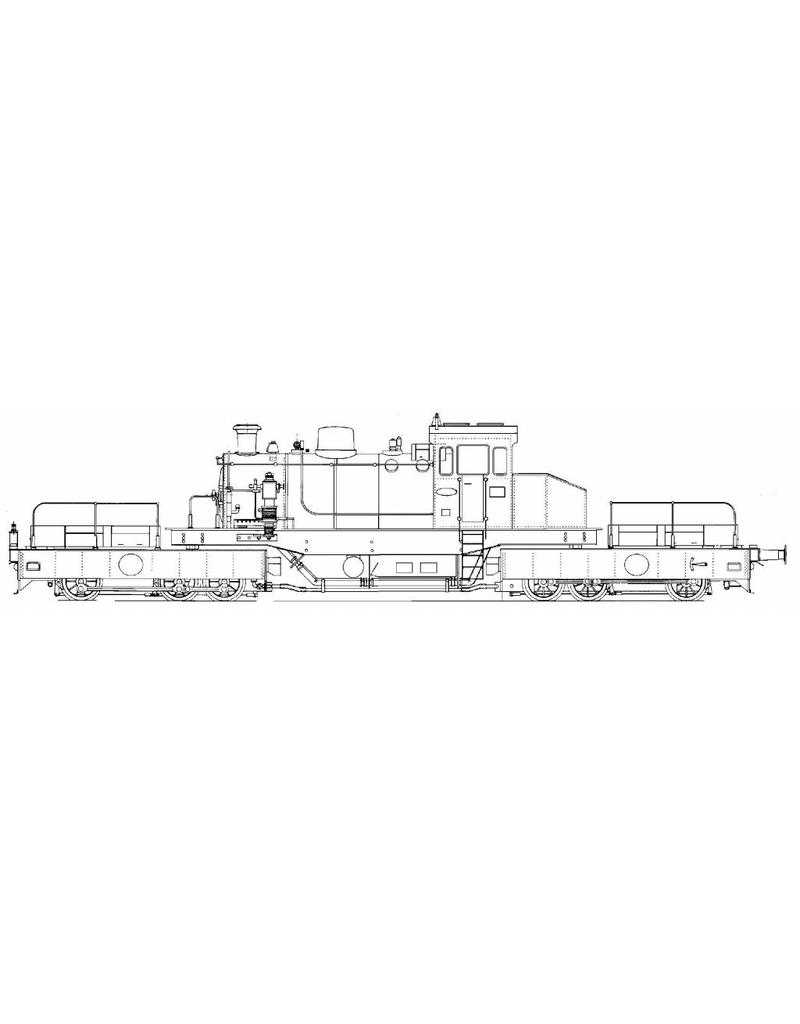

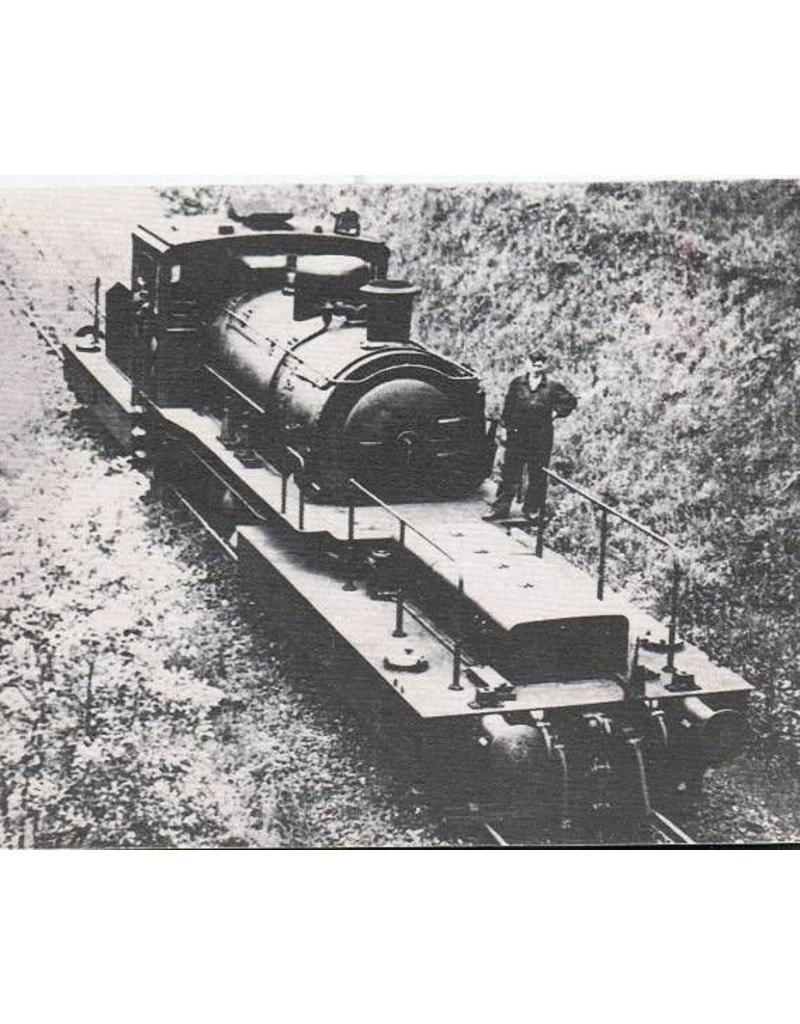

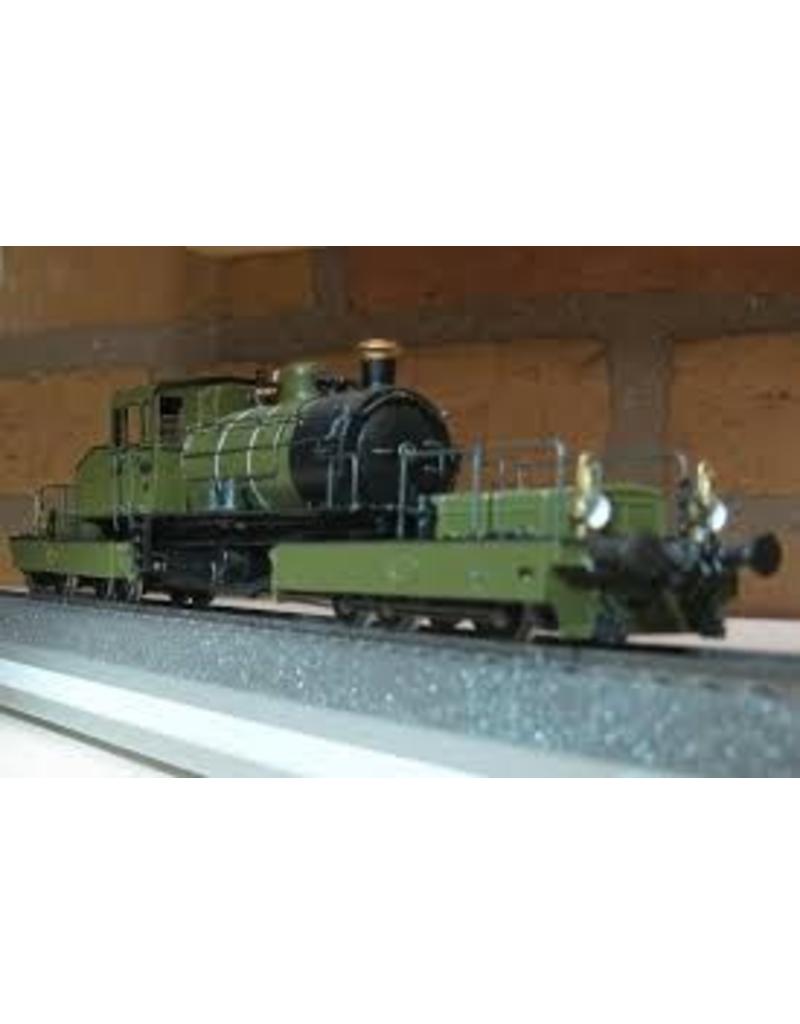

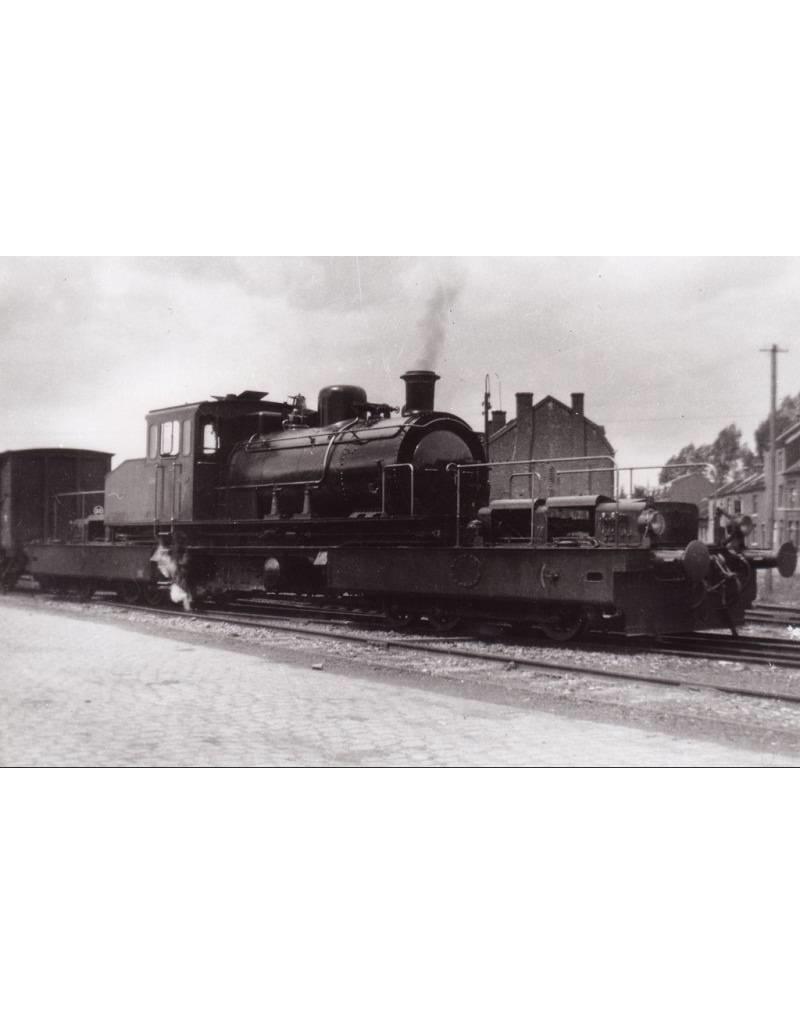

MBT 20.20.036 Garratt tram locomotive LTM no.51; for gauge 1 (45 mm)

Drawing number

20.20.036

Author

W. Dieten

Description

Garratt tram locomotiveÌ´Ì_ LTM no.51; for gauge 1 (45 mm)

Quality

Difficulty level

C

Scale

1 : 32

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

1

Number of sheets A2

14

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

15

Number of A4 text sheets

0

Weight in grams

345

Special features

dM 1995/8 to 1997/4

Article copy: 22.20.036 (34 pages)

Gauge 1 (45 mm); gas-fired; 3 bar; driving wheels diam. 32 mm.

A special gauge 1 model from a very instructive and complete drawing

Remarks

was 20.00.036
