| Article number: | 10.10.026 |

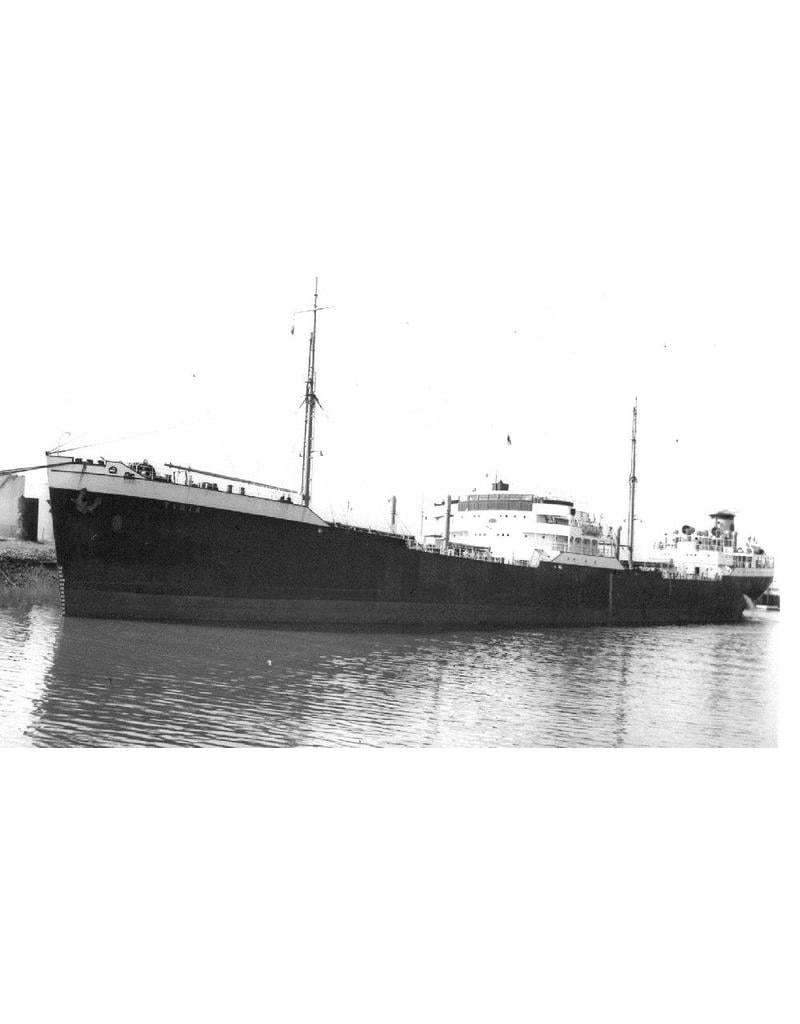

The SS Tibia was a Dutch motor tanker, built in 1939 by the Nederlandsche Scheepsbouw Maatschappij (NSM) in Amsterdam. The ship was operated by Shell Tankers N.V., a subsidiary of the Royal Dutch Shell Group. The Tibia was part of Shell's fleet modernisation programme at the end of the 1930s.
Type: Motor Tanker
Gross Tonnage: 10,356 GRT
Net Tonnage: 6,146 NRT
Deadweight (DWT): 15,147 tonnes
Length: 160.12 metres
Breadth: 19.63 metres
Depth: 9.01 metres
Engine: Werkspoor 10-cylinder diesel engine, 4,300 hp
Speed: 13 knots
Call Sign: PHZP
In Service: 1939–1962
1939–1955: In service with Shell Tankers N.V.
1955–1960: Transferred to Shell Tankers Ltd., London
1960–1962: Continued service under Shell Tankers Ltd.
1962: Sold for scrap in Hong Kong
During the Second World War, the Tibia was involved in several incidents:
27 June 1941: The ship was attacked by a German U-boat, but managed to escape without major damage.
3 March 1943: Again, the Tibia became the target of a German U-boat. Details about this attack are scarce, but the ship survived and remained in service.
Despite these wartime experiences, the Tibia remained active for Shell Tankers during and after the war.
Specifications :
|
Drawing Number |
10.10.026 |
|
Author |
J.G.C.C.M. Muskens |
|
Description |

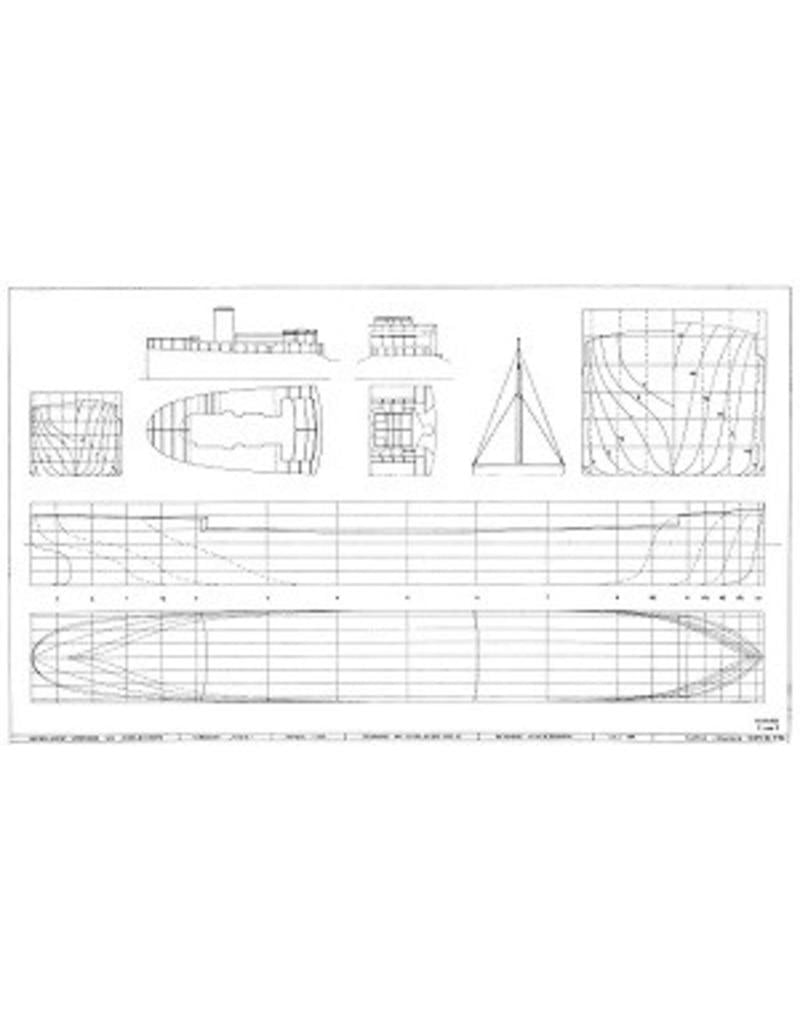

tanker ss "Tibia" (1939) - Shell |
|
Quality |

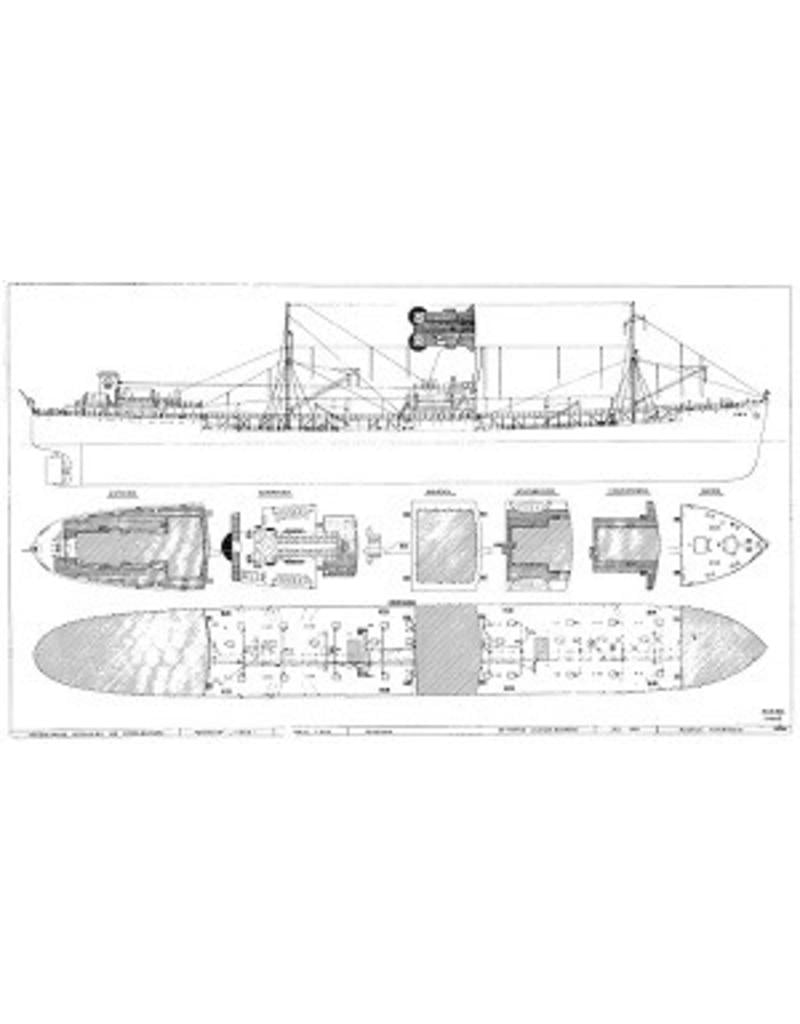

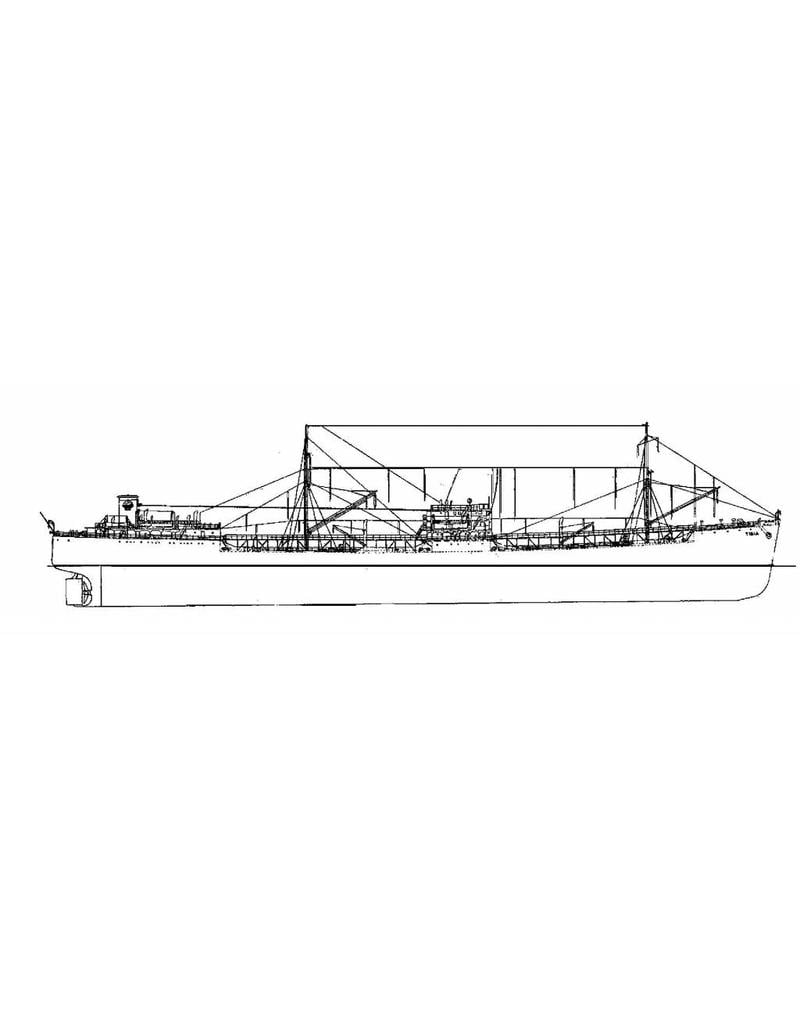

lines/sections; frames also 1:100; side view; deck plans |
|
Scale |
1 : 200 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
2 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Particulars |
l.o.a. 80 cm |
|
Remarks |
